Summary of Contents for Analytic Systems BCA1000V

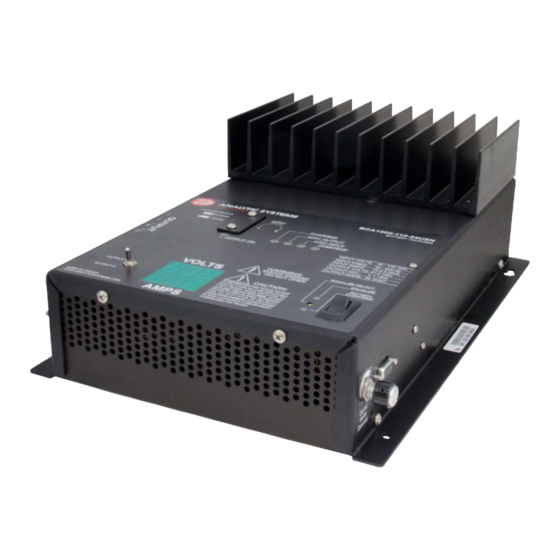

- Page 1 INSTALLATION & OPERATION MANUAL BCA1000V AC Source Battery Charger An ISO9001 and AS9100 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters...
- Page 2 Copyright (2005-2016) Analytic Systems Ware (1993) Ltd. Revised - May 18, 2016...
-
Page 3: Important & Safety Instructions
IMPORTANT & SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS — This manual contains important safety and operating instructions for battery charger 2. Do not expose battery charger to rain or snow. 3. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons. -
Page 4: Grounding And Ac Power Cord Connection Instructions
Analytic Systems does not recommend the use of any of its products in direct patient care. Examples of devices considered to be life support devices are neonatal oxygen analyzers,... -
Page 5: Specifications
Introduction All new Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting, reverse battery hookup protection and output short circuit shutdown with automatic recovery. - Page 6 Marine Grade Aluminum Finish Black Anodize / Black Powder Epoxy Fastenings 18-8 Stainless Weight 12 lb / 5.5 kg * This is Analytic Systems’ suggested range. Please consult your battery manufacturer for their recommendations. * Specifications subjects to change without notice.
-
Page 7: Installation
Installation MOUNTING Mount the unit in a DRY location. Allow at least 4 inches of clearance around the heat sink fins for adequate cooling. POWER CONNECTION The unit is supplied with a power cable 5 feet long. This should normally be adequate to connect to a source of power. -
Page 8: Operation
Meters High quality digital meters can be added to the charger (factory installed only). Both outputs can be monitored for current and voltage Operation Prior to turning on the unit, you must decide on which charging profile, 2 or 3 stage charging, to use. - Page 9 A two-stage charger is preferred for “loaded” batteries and a three-stage for idle or unloaded batteries during recharging. All of Analytic Systems’ chargers include adjustable output voltage for charging standard or deep cycle lead-acid, VLRA or gel type batteries.
-
Page 10: Troubleshooting
Troubleshooting This unit provides LED indicators and a buzzer to help diagnose any problems. The unit should sound the buzzer to alert you prior to shutting itself down. You should immediately check the indicators to determine the cause of the shutdown. LOW OUTPUT Indicates that the output voltage is below normal because: •... -
Page 11: Battery Temperature Sensors
Remote Control Option IMPORTANT: This remote is to be used only on Battery Chargers manufactured by Analytic Systems. A remote control panel may be connected to the battery charger using a 9-pin D-connector, which attaches to the side of the battery charger. The remote control panel and D connector are part of the remote control option. - Page 12 Equalize Option The purpose of the Equalize Option is to deliberately overcharge the battery at a low rate of current to ensure that all cells are fully charged and to reduce the chance of sulfation of the battery. During the Equalize cycle, the cells, which are fully charged, will produce Hydrogen gas, and the cells, which are undercharged, will be brought up to full charge.
- Page 13 plugged into “Batt 1”. If there is a second temperature sensor, it should be plugged into to the phone jack labeled “Batt 2”. If a battery blanket is used the sensor may be tucked inside the blanket with the proper side of the sensor facing the battery.
- Page 14 Page intentionally left blank...
-
Page 15: Limited Warranty
2 Years from date of manufacture for non-standard or OEM products 1 Year from date of manufacture for encapsulated products. 3. Analytic Systems will determine eligibility for warranty from the date of purchase shown on the warranty card when returned within 30 days, or... - Page 16 An ISO9001 and AS9100 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters...
