Page 1: Battery Charger

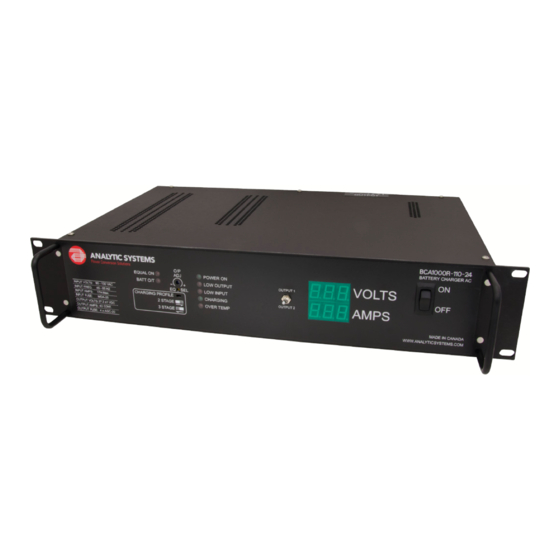

INSTALLATION & OPERATION MANUAL BCA1000R BATTERY CHARGER An ISO9001 and AS9100 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA) www.analyticsystems.com... - Page 2 Copyright (2005-2014) Analytic Systems Ware (1993) Ltd.
-
Page 3: Important & Safety Instructions
IMPORTANT & SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS — This manual contains important safety and operating instructions for battery charger 2. Do not expose battery charger to rain or snow. 3. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons. - Page 4 Analytic Systems does not recommend the use of any of its products in direct patient care.
-
Page 5: Specifications
The output voltage is easily adjusted 1.0 volt above or below the standard output voltage. The model BCA1000R Battery Charger supplies either 12, 24, 32 or 48 VDC from a 110 or 220 VAC power source. - Page 6 18-8 Stainless Weight 12.2 lb / 5.5 kg * This is Analytic Systems’ suggested range. Please consult your battery manufacturer for their recommendations. * Specifications subjects to change without notice. Designed and manufactured by: ANALYTIC SYSTEMS WARE (1993) LTD. 8128 River Way p.
-
Page 7: Installation
110 VAC supply is 14.6 amps, so a 15 amp circuit breaker should be used in the circuit panel and for a 220 VAC supply, 7.3 amps is the maximum current draw, so a 10 amp circuit breaker should be used in the circuit panel to feed power to the BCA1000R. OUTPUT CONNECTIONS Two Positive output terminals and two Negative output terminals are provided. -
Page 8: Operation
BATTERY BANK #1 BATTERY OUTPUT 1 OUTPUT 1 BANK #1 OUTPUT 2 OUTPUT 2 BATTERY BANK #2 If the batteries are connected in reverse, the output fuses will blow. Turn the unit off, correct the wiring and then replace the fuses. BATTERY TEMPERATURE SENSORS Up to 2 battery temperature sensors can be connected to the charger to allow temperature compensation of the battery charging voltage (1 is supplied with the unit). - Page 9 A two-stage charger is preferred for “loaded” batteries and a three-stage for idle or unloaded batteries during recharging. All of Analytic Systems’ chargers include adjustable output voltage for charging standard or deep cycle lead-acid, VLRA or gel type batteries.
- Page 10 Equalize The charger includes a user selectable equalize function. The purpose of the equalize function is to deliberately overcharge the battery to force any weak cells to recharge properly. This function is required by most battery banks once every 2-3 months. To start an equalize cycle, simply press the equalize button (located on the front panel) using a pencil or pen.
-
Page 11: Troubleshooting
Troubleshooting This unit provides LED indicators and a buzzer to help diagnose any problems. The unit should sound the buzzer to alert you prior to shutting itself down. You should immediately check the indicators to determine the cause of the shutdown. CHARGING Indicates that the battery charger is charging the batteries: If the LED is not on, the batteries may be fully charged and the charger is... -
Page 13: Limited Warranty
2 Years from date of manufacture for non-standard or OEM products 1 Year from date of manufacture for encapsulated products. 3. Analytic Systems will determine eligibility for warranty from the date of purchase shown on the warranty card when returned within 30 days, or... - Page 16 An ISO9001 and AS9100 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA) www.analyticsystems.com...
