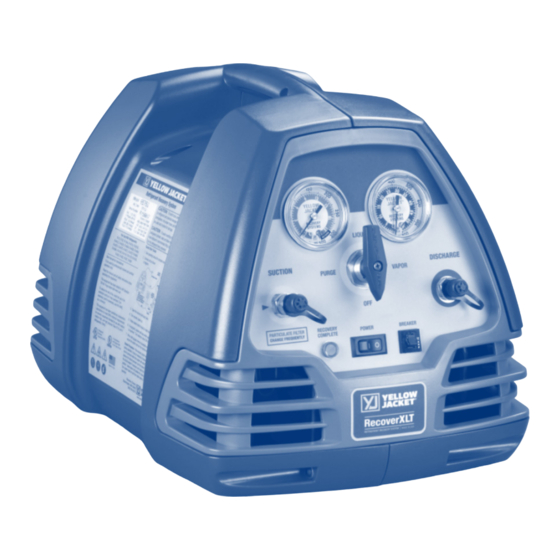

- Page 1 ™ ™ RecoverXL and RecoverXLT Oil-Less Universal Refrigerant Recovery Systems Operation and Maintenance Manual (For serial numbers 181194 and below) (English and Spanish. French and German available at www.yellowjacket.com)
- Page 2 Recovery should always be performed in well RecoverXL/XLT. ventilated areas. Use the RecoverXL/XLT only in 2) Use the correct hoses. Use only hoses designed locations where mechanical ventilation which for handling of refrigerants. The hose should be...
- Page 3 RecoverXL Operating Guide Direct Liquid/Vapor Recovery The RecoverXL is used to pull liquid or vapor refrigerant out of the system and transfer it into a Note: Be sure to connect hose ends with shut- recovery cylinder.
- Page 4 8. Turn the RecoverXL on. the troubleshooting guide on page 9. Restart procedures are on the side of the 9. Turn the selector VALVE on the RecoverXL to machine and on page 5. VAPOR RECOVERY position. 10. Slowly open the valves on your manifold and use them to regulate the refrigerant pressure to 80 psi maximum.
- Page 5 The refrigerant system does not allow for the transferring large volumes of liquid refrigerant. formation of a solid column of liquid. The RecoverXL/XLT “pulls” vapor from the recovery cylinder and produces high pressure For push-pull recovery, a sight glass is monitored discharge gas that “pushes”...
- Page 6 1) Turn off power to the system to be serviced. 9) Turn the selector valve clockwise to the PURGE position and follow procedures for 2) Hook up the RecoverXL/XLT, the system to purging the RecoverXL/XLT. be recovered, and the recovery tank as shown 10) Turn the RecoverXL/XLT off.
-
Page 7: Care And Maintenance
For RecoverXL Models Reduce the risk of cross contamination and prolong the life of the RecoverXL/XLT by purging 1) Monitor the recovery of the system until the after every service. suction gauge indicates the appropriate level of vacuum. - Page 8 Components RecoverXL/XLT Parts Part# Description Part# Description 95444 Case, Front 95216 Rocker Switch 95445 Case, Rear 95453 Manifold Assembly 95446 95228 Case Half (both halves) CPR Valve 95447 Case, Cord Wrap 95455 Fan Blade 95448 95294 Aluminum Frame Fan Clip...
-
Page 9: Troubleshooting Guide
Troubleshooting Guide Possible Problem Possible Solution Condition No power to unit Power cord not plugged in Plug power cord in Outlet not energized Reset breaker Compressor will not Compressor under unequalled conditions See restart procedure start Compressor thermal overload is tripped Thermal overload will reset in approx. -
Page 10: Technical Data
15 inHg 15 inHg Other Refrigerants - The RecoverXL/XLT is approved for use with the following refrigerants which have not been certified for a particular recovery rate: R401B, R-402A, R-402B, R-404A, R-406A, R-407A, R-407B, R-407C, R-407D, R-408A, R-409A, R-411A, R-411B, R-500 and R-502. - Page 11 Wiring Diagrams...
- Page 12 YELLOW JACKET recovery unit, call YELLOW JACKET Products Division Ritchie Engineering Co., Inc. 10950 Hampshire Avenue South Bloomington, MN 55438 e-mail: custserv@yellowjacket.com...
