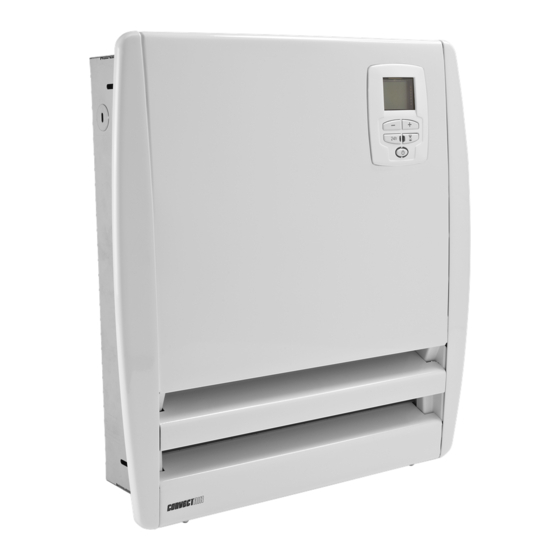

piccolo
7831
installation &
operating instruction
( IMPORTANT : To be read and kept by the user )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Piccolo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CONVECTAIR Piccolo

Summary of Contents for CONVECTAIR Piccolo

  • Page 1 7831 installation & operating instruction ( IMPORTANT : To be read and kept by the user )

  • Page 2: Table Of Contents

    - introduction - Dear owner, Congratulations on the purchase of this premium electric heater. coNVEcTAiR develops and produces the highest quality heating product in the electrical industry. To obtain the best results and the ultimate in performance and comfort, please take a moment to read the installation, operation and maintenance instructions detailed in this manual.

  • Page 3: Quick Start Guide

    Fast heat : Turn the heater on. Press on the ( ) key, the heater will run full power (1500 w) for the duration set on the timer. Troubleshooting : see page 12. To contact convectair : see page 12.

  • Page 4: 1- Specifications

    - Minimum obstruction and designed to heat your room quietly, consistant heat, it is a perfect heater for your bathroom or other intermittently-used rooms. - Your PICCOLO can be used with the optional coNVEcTAiR Programmer Module (pilot wire) allowing scheduled temperature set-backs in periods of prolonged absence providing the same comfort and more savings.

  • Page 5: 3- Installation And Mounting

    8" (20 cm) 24" (60cm) - The PICCOLO heater is partially enclosed and clearance restrictions must be respected. The heater should be installed no lower than 12 in. (30 cm) from the floor. Leave a minimum clearance of 4 in. (10 cm) on each side of the heater, 8 in. (20 cm)and 24 in.
  • Page 6 electrical wire Fig 5 Fig 6 - before placing the enclosure box inside the wall opening, remove the knock out and pass the electrical wires (fig.6), and the pilot wire if needed, using an appropriate bushing ( not included). - Insert the enclosure box and secure it to the wall with appropriate hardware (fig 7c) having taken into account the reassembly of the facade.
  • Page 7 - Connect the electrical wires (see chapter 4 -electrical connection, page 8). - when remounting the front facade, please make sure that the lower fold of the front panel (Rep. A) is inserted below the deflector of ventilation block (Rep.B), and this to guarantee optimal performances.

  • Page 8: 4- Electrical Connection

    - coNVEcTAiR recommends that your heater be installed by a qualified electrician and in accordance with national and local codes. - This heater must be connected to a 240 volt (60 cycles) circuit. Disconnect the power supply before making wiring connections to prevent electrical shock and equipement damage.

  • Page 9: 5- Operating Instructions

    operating instructions A- oN / Standby key B- Temperature setting keys c- Auto programming function 24H D- Timer function E- Backlit lcD screen F- Temperature display G- locked controls indicator H- Heating indicator symbol - To turn the heater oN Press on the key on the control panel.
  • Page 10 - To use the «Timer » function Pressing the « » button triggers the «Timer » function for a period of 15 min (default). The red indicator lights. successive presses on «-» and «+» allow to modify the duration between 5 and 90 min in steps of 5 min. hold the « »...

  • Page 11: 6- Overheat Control

    Never use this heater during construction work or other activities that generate a lot of dust. The first time your CONVECTAIR heats, a light smoke could be released. This is normal and should disappear after about 2 to 3 minutes.

  • Page 12: 8- Troubleshooting

    3- Activate the timer function. 4- If no heat is emitted, check the overheat protection (see section 6). 5- If the light is still off, and no heat is generated, call CONveCTAIR or the nearest coNVEcTAiR service center. identification of your heater...
