We value your feedback!
Your input helps to create even better
products and experiences.
Share the warmth and leave a review.
convectair.com/sharethewarmth
INSTALLATION AND USER'S GUIDE
To be read and kept by the user.
A BRAND OF GLEN DIMPLEX AMERICAS
5100/5101
FLB/FLB+

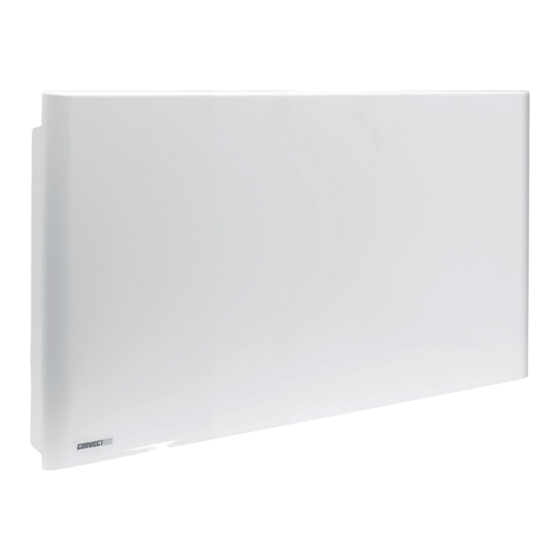

Panel Convector
7216580100R01
300001582 Issue 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CONVECTAIR FLB 5100
Summary of Contents for CONVECTAIR FLB 5100
- Page 1 We value your feedback! Your input helps to create even better products and experiences. Share the warmth and leave a review. convectair.com/sharethewarmth INSTALLATION AND USER’S GUIDE To be read and kept by the user. A BRAND OF GLEN DIMPLEX AMERICAS...
-
Page 3: Table Of Contents
How to Use Your Convectair FLB+ heater ........ -
Page 4: Important Instructions
Important Instructions When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to person, including the following: 1. THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance. CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY VOID YOUR WARRANTY. - Page 5 Important Instructions 12. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
-
Page 6: Quick Start
Quick Start Heater On/Off Display Indicator Mode Indicator: Eco (green) or Comfort (red) Return Confirm Adjustment keys Turning the Heater On or Off (FLB and FLB+ models): Press the toggle switch on I to turn heater on, or on O to turn it off. Setting the Temperature: Using the adjustment keys, increase or decrease the temperature according to the desired comfort. -
Page 7: Characteristics
Specifications Total Width Height Depth Weight Model Series Voltage Power (mm) (mm) (mm) (kg) 5101-C05-BB FLB+ 500 W (16 5/8") (6 lb) 5100-C05-BB 5101-C10-BB FLB+ 1000 W (20 3/4") (7.5 lb) 5100-C10-BB 240 V (15 3/4") (4 1/2") 5101-C15-BB FLB+ 1500 W (24 5/8") (8.4 lb) -
Page 8: Location Recommendations
Location Recommendations PLEASE READ CAREFULLY: These instructions are essential for safe installation and use of your CONVECTAIR unit. - The installation must comply with the national and local standards in place and CONVECTAIR recommends that it be performed by a master electrician. - Page 9 Recommendations and advice CAUTION : Do not insert anything into the unit. The first time the heater is turned on, there may be an odor. This phenomenon disappears after a few minutes of operation. CAUTION: DO NOT COVER There is a risk of overheating if the device is covered. It is therefore strictly forbidden to cover or block the air inlet or outlet grilles at the risk of incidents or damage to the device.
-
Page 10: Installation And Securing
Installation and Mounting TOOLS REQUIRED #2 Phillips (4) 1½" Screws Stud Finder Screwdriver (Optional) (4) Wall anchors (if needed): Wire Strippers Utility Knife must be suitable for min. 50 lb / 22.7 kg Level Wire Connectors Tape Measure 10mm (.4 in.) 50mm (1.97 in.) 1. - Page 11 7. Place the wall bracket onto the bottom screws (A-A). Then fasten the wall 4. Insert the two tabs of the installation bracket with the top screws. Place the cover into the two slots in the chassis heater on the wall bracket (1), secure and fold the cover over the wiring.
-
Page 12: Electrical Wiring
Electrical Wiring - CONVECTAIR recommends that devices be installed by a master electrician, in accordance with applicable national and local codes. - The device must be connected to a 240 volt, 60 cycle circuit. Disconnect the power before making any connections to avoid electric shock or damage to the device. -
Page 13: How To Use Your Convectair Flb Heater
How to Use Your Convectair FLB Heater FLB panel convectors do not have integrated controls. They must be controlled using a properly sized wall thermostat, which must be purchased separately. How to Use Your Convectair FLB+ Heater DAY AND TIME CONFIGURATION NOTE : when switching on for the first time (or after a fairly long power outage) 00:00 is displayed, the time must be set. -
Page 14: Setting The Temperature Unit Display
SETTING THE TEMPERATURE UNIT DISPLAY 30˚C ˚C ˚F 7˚C Press - and simultaneously. 30˚C SETTING THE SET TEMPERATURE 7˚C The heater can be set: either in Comfort mode (for setting the desired temperature) or in Eco mode (recommended for short absences) 30˚C 30˚C Green = Eco... -
Page 15: Programming Daily Settings
PROGRAMMING DAILY SETTINGS This heater has nine 24-hour programs. Select one program for each day of the week. Pr. 1 0000 2400 Pr. 2 0600 2300 Pr. 3 0700 2400 Pr. 4 1500 2300 Pr. 5 0600 0800 1500 2300 Pr. -
Page 16: Adaptive Start
ADAPTIVE START Adaptive start allows the heater to learn what time it needs to start heating so that the room is at the set temperature by the time of the programmed setting. For example, if the programming is set to 20 degrees Celsius at 6am, the heater will start heating up before 6am so that by 6am, the room will be 20 degrees Celsius. -
Page 17: Thermal Protection
FLB/FLB+ panel convector. NEVER USE ABRASIVE OR ACETONE-BASED PRODUCTS, AS THEY COULD DAMAGE THE EPOXY COATING. ALL SERVICING ON CONVECTAIR APPLIANCES MUST BE CARRIED OUT WITH THE POWER OFF, AND BY QUALIFIED AND AUTHORIZED PERSONNEL. -
Page 18: Identifying Your Device
When switching on the CONVECTAIR for the first time, a slight smoke may emerge from it. This phenomenon is quite normal and will go away on its own after 2 or 3 minutes of operation of the device. -
Page 19: Warranty
Any claims under this Warranty must be submitted in writing to the Service Manager, Glen Dimplex Americas Ltd., 1367 Industrial Rd., Cambridge, Ontario N3H 4W3, Canada. SERVICE CENTERS: To find the nearest Service Center, visit our website (www.convectair.ca) or contact CONVECTAIR customer service at the following number: 1 800 463-6478... - Page 20 We value your feedback! Your input helps to create even better products and experiences. Share the warmth and leave a review. convectair.com/sharethewarmth 1-888-346-7539 | www.dimplex.com In keeping with our policy of continuous product improvement, we reserve the right to make changes without notice.
