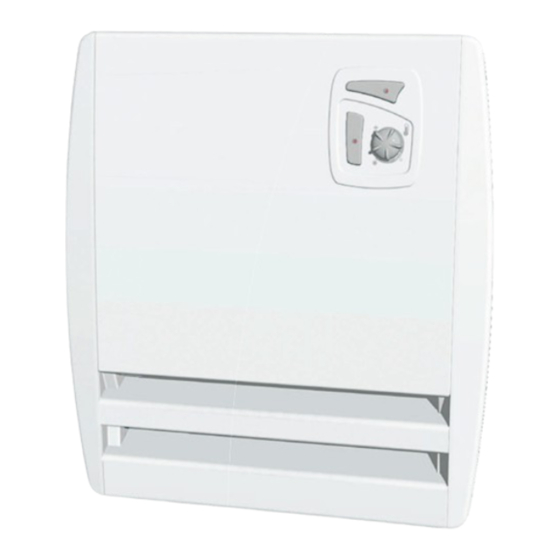

INTRODUCTION : Dear owner, - Congratulations on the purchase of this premium electric heater. CONVECTAIR develops and produces the highest quality heating product in the electrical industry. - To obtain the best results and the ultimate in performance and comfort, please take a moment to... -
Page 3: Quick Start Guide
Set the temperature dial at the comfort zone. Wait for the temperature to stabilize. Adjust up or down for the required comfort level (see page 8). Fast heat With the heater ON, press the button. Trouble shooting page 10 To contact Convectair : see page 10... -
Page 4: 1- Specifications
These instructions are essential to install and use your new PICCOOLO safely. RECOMMANDED SET-UP - Your heater must be installed in accordance with national and local codes and CONVECTAIR recommends an installation by a qualified electrician. - Your heater must be installed so that the control panel is out of reach from anyone in the bath-tub or in the shower. -
Page 5: 3- Installation And Mounting
INSTALLATION AND MOUNTING - Identify where you want to install the heater, providing sufficient clearance around the unit (Fig.2). Electrical wire exit e PICCOLO heater is partially enclosed and clearance restrictions must be respected (Fig. e heater should be installed no lower than 30 cm (12 in.) from the floor. Leave a minimum clearance of 10 cm (4 in.) on each side of the heater, 20 cm (8 in.) and 60 cm (24 in.) in front for a proper air circulation. - Page 6 Power cable - Before placing the inner junction box inside the wall opening, remove the knock out and pass the electrical wires (Fig.6), and the pilot wire if needed, using an appropriate bushing ( not include). - Insert the inner box and secure it to the wall having taken into account the reassembly of the facade.
- Page 7 - Insert and hook the ventilation block and the protocol panel inside the inner box. Secure the ventilation box with 2 screws (Fig.5). - Connect the electrical wires ( see chapter 4 - connexion, page 7). - When remounting the front facade, please make sure that the low small strip of the facade (Rep.A) amounts down of the deflector of ventilation block (Rep.B), and this to guarantee optimal performances.
-
Page 8: 4- Electrical Connection
ELECTRICAL CONNEXION - CONVECTAIR recommends that your heater be installed by a qualified electrician and in accordance with national and local codes. - To prevent short circuits and electrical shocks turn the power off at the main panel before attempting the installation or making any repairs. -
Page 9: 5- Operating Instructions
OPERATING INSTRUCTIONS On/Off indicator On/Off switch ermostat adjustment Accelerated heat ventilation button (30 minutes) Accelerated heat ventilation indicator Comfort zone Heating indicator e electronic controls have been designed to achieve maximum savings. - Once the heater is on, set the temperature dial at the comfort zone. - Close the doors and windows the room where the heater is located. -
Page 10: 6- Overheat Control
2SHUDWLQJ DQG PDLQWHQDQFH WLSV Your CONVECTAIR heater will become hot when in use. Caution is advised when young children are present. Do not insert small objects in the heater : this could cause an electrical short circuit, fire or damage to the inner components. -
Page 11: 8- Troubleshooting
WARRANTY INFORMATION 2 years against all defects / 5 years on heating element. All CONVECTAIR heaters are subjects to a double warranty : 2 years on all parts and manufacturing defects and 5 years on the heating element itself.
