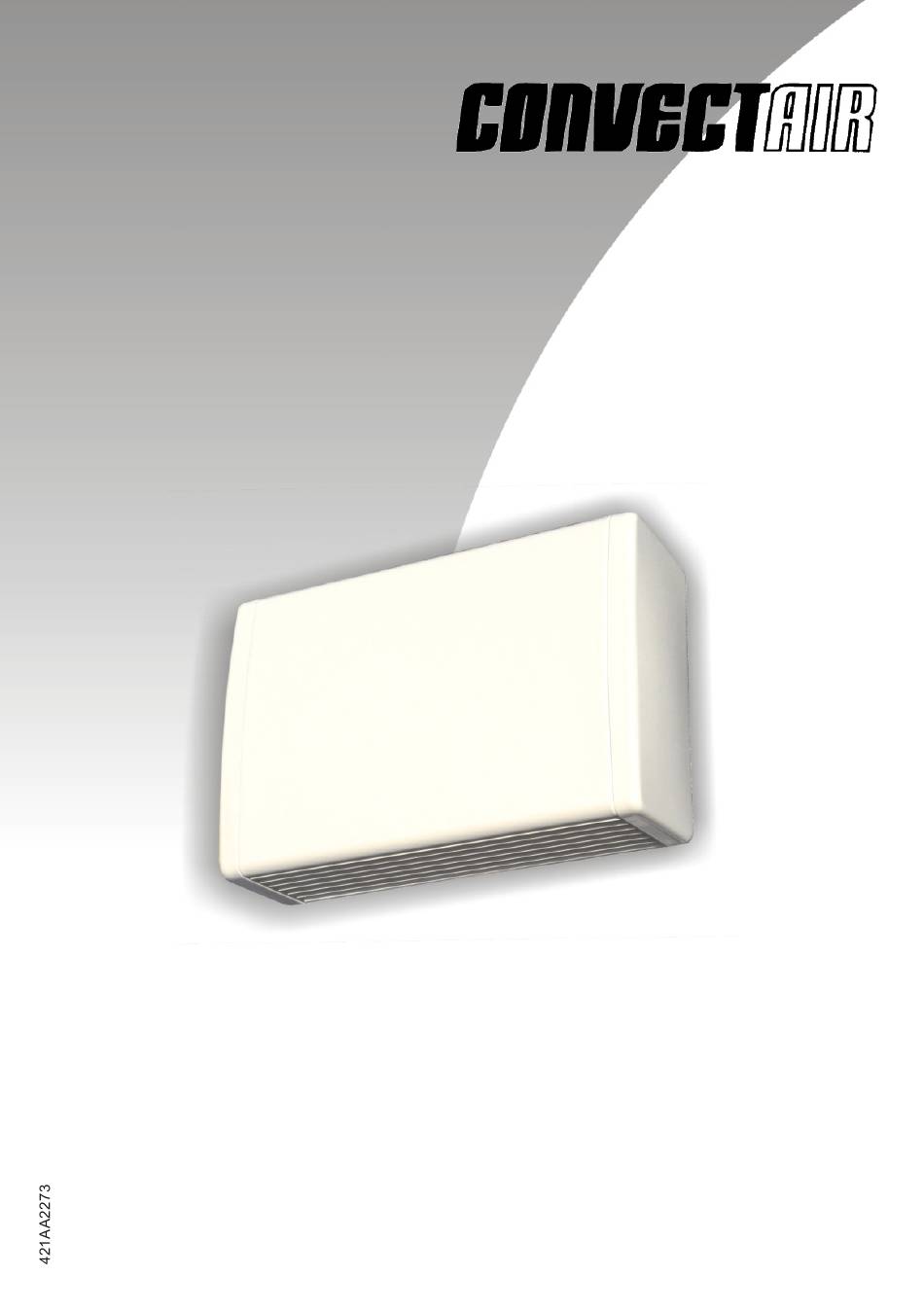

- Page 1 SOPRANO 7808 Installation, Operating Instructions & Warranty Registration ( IMPORTANT : To be read and kept by the user )
- Page 2 Page 5 4 - WIRING................Page 6 5 - OPERATION..............Page 6 6- MAINTENANCE..............Page 7 7- PREVENTION..............Page 7 8 - THERMAL SAFETY CUT-OUT..........Page 7 9 - IF YOUR SOPRANO DOES NOT WORK......Page 9 10 - WARRANTY..............
- Page 3 Specifications Specifications The Soprano is a compact, discreet and efficient unit that may be used in any room in the house. During the installation, the Soprano allows you to select a wattage, either 750W or 1500W. It is also available in two models to suit your requirements: 120V or 240V.
- Page 4 R = RED B = BLACK G = GREEN C = COPPER W = WHITE - Carefully place wires in the junction box and screw on the cover. - Place the Soprano against the wall and lock in position. Secure to wall bracket before using.
- Page 5 R = RED B = BLACK G = GREEN C = CUIVRE W = WHITE - Carefully place wires in the junction box and screw on the cover. - Place the Soprano against the wall and lock in position. Secure to wall bracket before using. Operation Operation The operation could vary depending on the type of controls used.
- Page 6 Thermal safety cut-out Thermal safety cut-out - The Soprano is equipped with a safety cut-out which shuts off the fan and the hea- ting element in case of overheating. To reset the safety cut out : 1- Shut the power of the heater off.
- Page 7 2 YEARS against all defects / 5 YEARS on heating elements. 2 YEARS against all defects / 5 YEARS on heating elements. All CONVECTAIR units are subject to a double warranty : 2 years on all parts and manufacturing defects and 5 years on the heating elements themselves.
