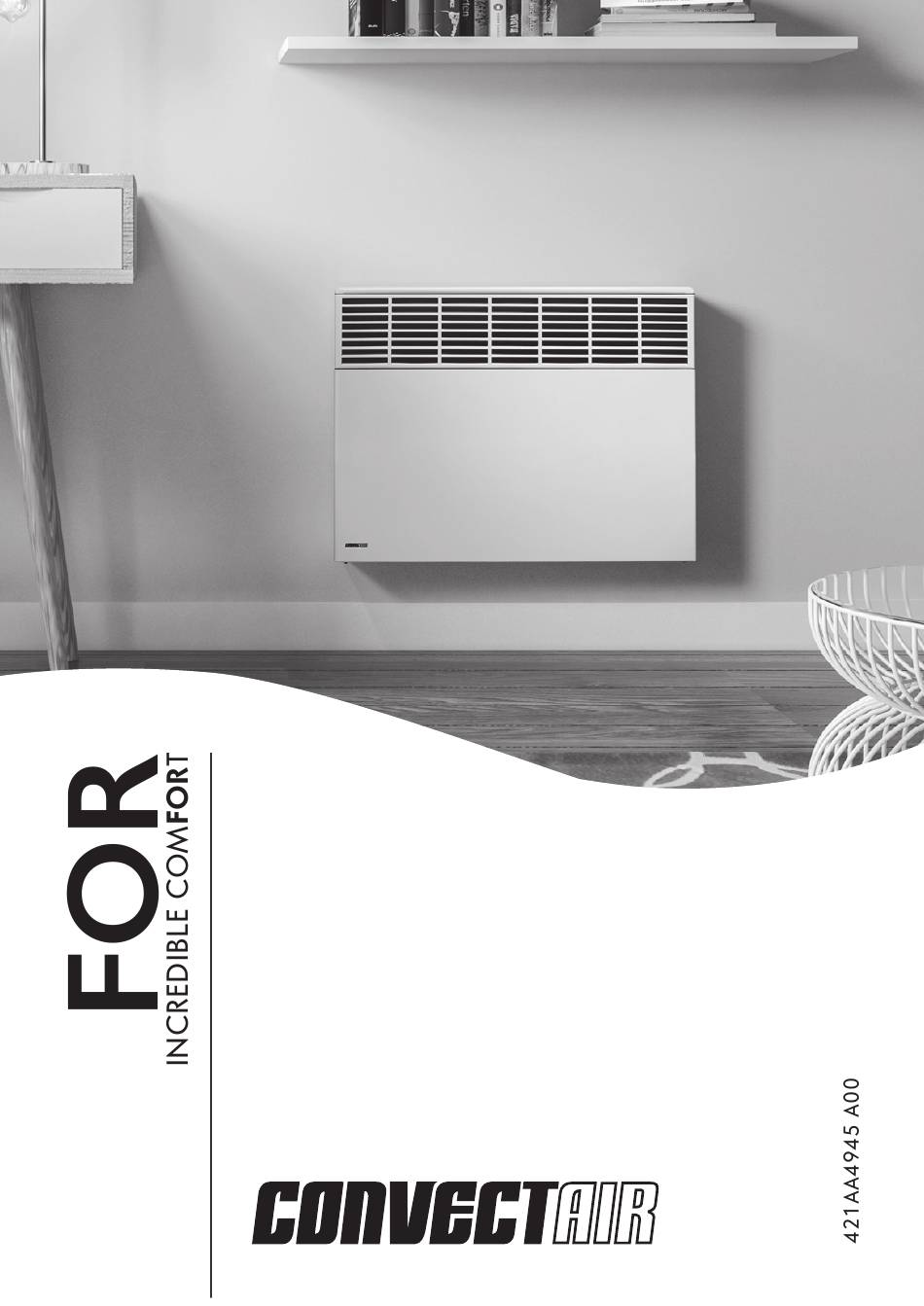

- Page 1 INSTALLATION AND USER GUIDE Installation and Warranty Card To be read and retained by the user.
-
Page 2: Table Of Contents
Dear user, Thank you for your trust and congratulations on the purchase of your new CONVECTAIR electric heater. We design and manufacture the highest quality devices in the electrical industry. For the ultimate in comfort, and for maximum performance from your devices, please read the installation and operating instructions included in this manual. - Page 3 CAUTION Some parts of this product can become very hot and cause burns. Particular attention needs to be given where children and vulnerable people are present. This appliance can be used by children aged from 8 years and above as well as people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 4: Installation
The company reserves the right to modify at any time the Installation and User Guide to account for standards and their evolution. T oavoidshortcircuits,pleaseturnoffthepower at the electrical panel prior to installation or repair. - Page 5 Figure 2b Heater width 3-1/8" 80 mm 17-1/2" 440 mm 4" 100 mm min. 750 => 1000 500=>1250W Heater Width WATTS 13-3/8 4-1/8 1000 16-1/2 8-1/4 4-1/8 1500 22-7/8 7-7/8 2000 29-1/8 12-5/8 8-1/4 NOTE: To locate the midpoint of the heater, use the hole numbered 2 in Fig.
-
Page 6: Electrical Connection
2 ELECTRICAL CONNECTION CONVECTAIR recommends that this heater be installed by a qualified electrician in accordance with national and local codes. A rectangular junction box must be installed in the wall, prior to electrical hookup. The box must be of appropriate size to receive the necessary electrical connections and the 2-3/4"... -
Page 7: Controls
3 CONTROLS The CONVECTAIR FOR operates in short cycles. The red indicator light tells you when heat is on. The heater will always remain warm and ambient temperature will remain constant. It is normal in very cold temperatures for the unit to become hot. Caution is advised when young children are present. - Page 8 Wait about an hour to allow for the temperature to stabilize. Adjust the setting up or down (+ or – keys). Allow another hour for the temperature to stabilized.
- Page 9 3 seconds. TEMPERATURE LIMITING CONTROL: This heater is equipped with an automatic reset control. In case of a malfunction of the unit (blocked air intake or output, for example), the heater will stop heating automatically. After correcting the malfunction and asufficientcoolingoftheheater,itwillbeonautomatically.
-
Page 10: Maintenance
A nyuseormodificationsnotapprovedbyCONVECTAIRmaycause electricalshort-circuits,fireorinjuriestotheusers. • In certain cases, it is possible for yellowing of the grille to occur over time. This is not due to a manufacturing defect. This is caused by surrounding air, which contains smoke or dust, being heated and released through the heater. -
Page 11: Diagnostics
2- Check that the heater is not in ECONOMY or FROST PROTECTION. Make sure the desired temperature is properly set on the heater. 3- C hecktheoverheatprotection:firstremoveanyobstructionfromthe inlet and outlet grille (see : Temperature limiting controls). 4- I fthelightisstilloff,andnoheatisgenerated,callyourelectricianor the nearest CONVECTAIR repair center. -
Page 12: Warranty
6 WARRANTY 2 years against all defects / 5 years on heating element All CONVECTAIR heaters are subject to a double warranty: 2 years on all manufacturing defects and 5 years on the heating element itself. Warranty is applicable from date of purchase by the customer and under certainspecificconditions.Alldetailsareprovidedwitheachheater.Please...
