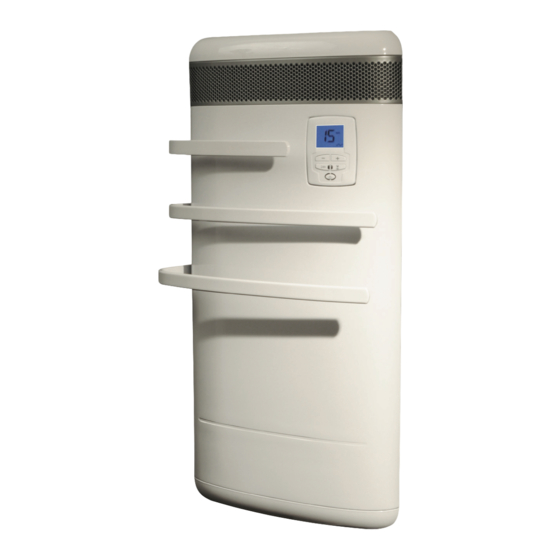

CONVECTAIR adagio 7640 Installation & Operating Instructions Manual
  1. Manuals
  2. Brands
  3. CONVECTAIR Manuals
  4. Electric Heater
  5. adagio 7640
  6. Installation & operating instructions manual

CONVECTAIR adagio 7640 Installation & Operating Instructions Manual

Hide thumbs

Advertisement

Table of Contents

ADAGIO
7640
Installation &
Operating Instructions
( IMPORTANT : To be read and kept by the user )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the adagio 7640 and is the answer not in the manual?

Questions and answers

Related Manuals for CONVECTAIR adagio 7640

Summary of Contents for CONVECTAIR adagio 7640

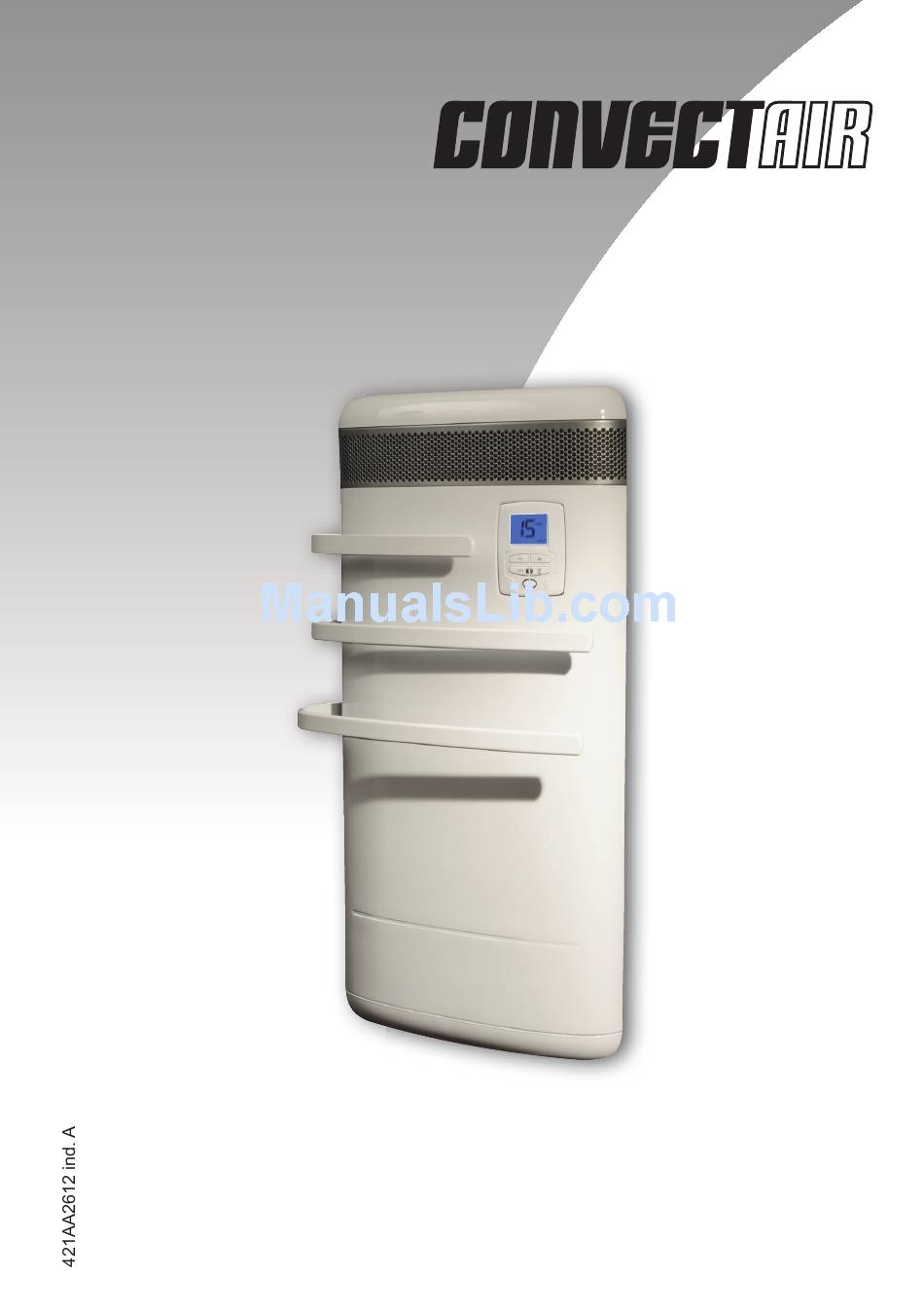

  • Page 1 ADAGIO 7640 Installation & Operating Instructions ( IMPORTANT : To be read and kept by the user )

  • Page 3: Table Of Contents

    - introduction - Dear owner, Congratulations on the purchase of this premium electric heater. CONVECTAIR develops and produces the highest quality heating product in the electrical industry. To obtain the best results and the ultimate in performance and comfort, please take a moment to read the installation, operation and maintenance instructions detailed in this manual.

  • Page 4: Quick Start Guide

    9) Fast heat : Turn the heater on. Press on the key, the heater will run full power (1400 w) for the duration set on the timer. Troubleshooting : see page 12. To contact Convectair : see page 12.

  • Page 5: 1- Specifications

    - Minimum obstruction and designed to heat your room quietly, consistant heat, it is a perfect heater for your bathroom or other intermittently-used rooms. - Your ADAgIO can be used with the optional CONveCTAIR Programmer Module (pilot wire) allowing scheduled temperature set-backs in periods of prolonged absence providing the same comfort and more savings.

  • Page 6: 3- Installation And Mounting

    installation and Mounting Cable entrance Entrée de câble 7’’ Wall bracket installation: (178’’) (7’’) - Remove the wall bracket from the heater by pushing the 2 clipping tabs (Rep. 4). - Place the wall bracket on the wall and mark the 4 mounting holes in Ne pas Do not accordance...

  • Page 7: 4- Electrical Connection

    - The purple wire with the seal at the extremity should not be used for the electrical connection. - The purple wire is used only if the heater is connected with the CONVECTAIR central programming system. - fix the unit on the wall bracket before turning the power back on.

  • Page 8: 5- Operating Instructions

    operating instructions A- ON / Standby key B- Temperature setting keys C- Auto programming function 24H D- Timer function E- Backlit LCD screen F- Temperature display G- Locked controls indicator H- Heating indicator symbol Fig. 6 - To turn the heater ON Push the switch located at the back of the heater to ON.
  • Page 9 - The "Timer" function This function allows an immediate and additionnal 800 w of heat during a time determinated period (from 5 to 90 minutes). so you are using your device in its full power unregulated, ie : 1400 w. - To use the «Timer »...
  • Page 10 CAUTION: This device is intended for drying towels. Do not introduce anything in the unit. The first time your CONVECTAIR heater is used, a light smoke could be re leased. This is normal and should disappear after a few minutes.

  • Page 11: 6- Overheat Control

    Never use this heater during construction work or other activities that generate a lot of dust. The first time your CONVECTAIR heats, a light smoke could be released. This is normal and should disappear after about 2 to 3 minutes.

  • Page 12: 8- Troubleshooting

    3- Activate the timer function. 4- If no heat is emitted, check the overheat protection (see section 6). 5- If the light is still off, and no heat is generated, call CONveCTAIR or the nearest CONVECTAIR service center. identification of your heater IMPORTANT : PRODUCT INFORMATION APPEARS ON THE HEATER’S IDENTIFICATION...

This manual is also suitable for:

Calypso 7825
