The AKD4133-A is the evaluation board for the AK4133, 2ch digital sample rate converter.
This board has the optical connectors to interface with other digital audio equipments and serial
interfaces for AKM AD/DA evaluation boards. The AKD4133-A achieves quick evaluation of AK4133.
 Ordering guide
AKD4133-A
--- Evaluation board for AK4133
 Optical fiber connectors (for Digital Audio Interface. input x 1, output x 1.)
 10pin Header (for AKM AD/DA evaluation board. input x 1, output x 1.)
 On board X'tal Oscillator (input x 1, output x 1.)
< KM119500>
AK4133 Evaluation Board Rev.0
GENERAL DESCRIPTION
FUNCTION

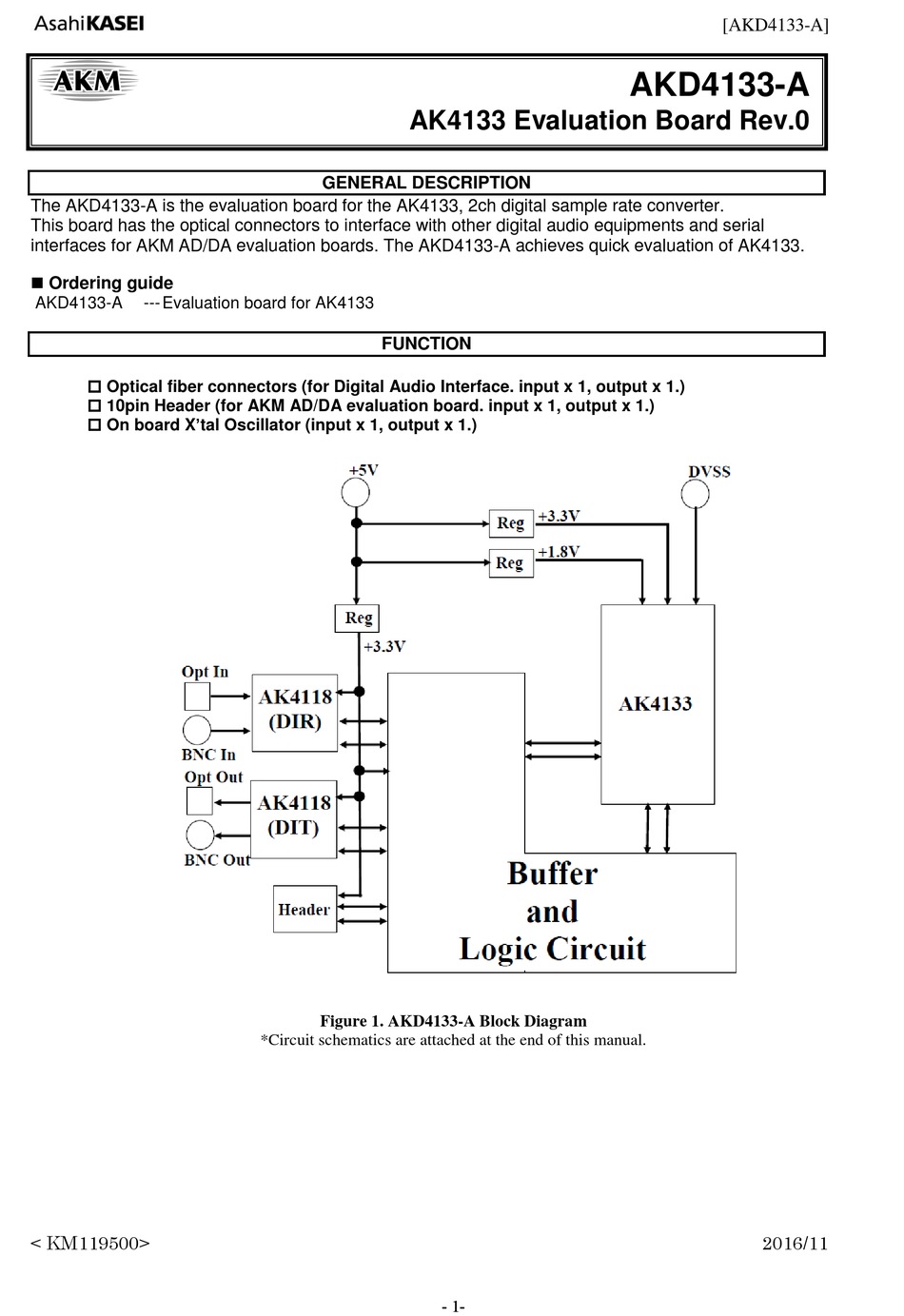

Figure 1. AKD4133-A Block Diagram
*Circuit schematics are attached at the end of this manual.
- 1-
[AKD4133-A]
AKD4133-A
2016/11

Advertisement

loading
Need help?

Need help?

Do you have a question about the AKD4133-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AKM AKD4133-A

  • Page 1 AK4133 Evaluation Board Rev.0 GENERAL DESCRIPTION The AKD4133-A is the evaluation board for the AK4133, 2ch digital sample rate converter. This board has the optical connectors to interface with other digital audio equipments and serial interfaces for AKM AD/DA evaluation boards. The AKD4133-A achieves quick evaluation of AK4133.
  • Page 2: Evaluation Board Diagram

    SW400 SW402 SW401 SW300 SW403 Figure 2. AKD4133-A Board Diagram  Description (1) U100 ( AK4133 ) 2channels input/output Digital Sample Rate Converter (SRC). (2) J200, J300 ( BNC Connector for Digital Input/Output ) J200 BNC connector : Digital Input optical signal to AK4118A(U200).
  • Page 3 [AKD4133-A] (9) SW400 ( Toggle switch ) Toggle type-switch PDN for AK4133. “H” : PDN = High “L” : PDN = Low (10) SW401, SW403 ( Toggle switch ) Toggle type-switch PDN for AK4118A. “H” : PDN = High “L” : PDN = Low (11) SW402 ( Toggle switch ) Toggle type-switch SMUTE for AK4133.
  • Page 4 [AKD4133-A] Evaluation Board Manual  Operation sequence [1] Power supply line settings [2] Jumped pins settings [3] DIP switches settings [4] Toggle switches settings < KM119500> 2016/11 - 4-...
  • Page 5 [AKD4133-A] [1] Power supply line settings (1-1) Power supply settings : Used the regulator (T600,T601,T602) <Default> Set up the power supplied lines : * Each supply line should be distributed from the power supply unit. Name Color Setting (Typ) Function...
  • Page 6 [AKD4133-A] [2] Jumper pins and Port pins settings Names Default Functions JP100 DVDD-SEL Short No use. JP101 DV18-SEL Short Select Short / Open DV18. Open : DV18 pin of AK4133 open. Short : DV18 pin of AK4133 connect 1.8Vcourse. (default)
  • Page 7 [AKD4133-A] Names Default Functions PORT401 TX-PORT Open Open : No input (default) Short : Tx Data/Clock input JP500 JP501 Table 2-1. Jumper pin setting < KM119500> 2016/11 - 7-...
  • Page 8: Dip Switches Settings

    [AKD4133-A] [3] DIP switches settings (3-1). Setting for SW200 / SW300 (Sets AK4118A (U200 / U300) audio format and master clock setting) Switch Name Function default DIF2 Set-up of DIF2 pin. DIF1 Set-up of DIF1 pin. DIF0 Set-up of DIF0 pin.
  • Page 9 [AKD4133-A] [4] Toggle switches settings Up=”H”, Down=”L” [SW400] ( Power Down (PDN) for AK4133) : Power Down (PDN) Switch for AK4133 Reset AK4133 (U100) once by brining SW400 to “L” once upon power-up. Keep “H” when AK4133 is in use; keep “L” when AK4133 is not in use.
  • Page 10: Measurement Results

    [AKD4133-A] Measurement Results [Measurement condition]  Measurement unit : Audio Precision SYS-2722 (No.00095)  Power Supply : DVDD=3.3V (VSEL=L)  Band width : 20Hz  FSO/2  Resolution (Bit) : 24bit  XTI Input : Use X’Tal (X300)  Output PORT : Slave Mode ...
  • Page 11 [AKD4133-A] [P lo ts] AK4133 FFT FSO/FSI=44.1kHz/48kHz, 1kHz/0dBFS Input -100 -120 -140 -160 -180 Figu re 5 -1 . F FT Plo t (Inpu t = 0dBF S) AK4133 FFT FSO/FSI=44.1kHz/48kHz, 1kHz/ -60dBFS Input -100 -120 -140 -160 -180 Figu re 5 -2 . F FT Plo t (Inpu t = -60dBF S) <...
  • Page 12 [AKD4133-A] AK4133 THD+N vs. Input Frequency FSO/FSI=44.1kHz/48kHz, 0dBFS Input -92.5 -97.5 -100 -102.5 -105 -107.5 -110 -112.5 -115 -117.5 -120 Figu re 5 -3 . T HD+N vs . Inpu t F requ en cy (Inpu t = 0dBF S) AK4133 THD+N vs.
  • Page 13 [AKD4133-A] AK4133 Frequency Response FSI=44.1kHz/48kHz/96kHz/192kHz FSO=44.1kHz, 0dBFS Input F S I = 4 4 . 1 k F S I = 1 9 2 k H z F S I = 9 6 k F S I = 4 8 k F S I : Y e l l o w = 4 4 .
  • Page 14 [AKD4133-A] REVIS ION HIS TOR Y D a t e M a n u a l B o a r d R e a s o n P a ge C o n t e n t s ( Y Y / M M / D D )
