Connecting OpenBAS-NWK-ETH3 or OpenBAS-NWK-ETHXP
to an OpenBAS-HV-NX10 Series Controller
Network the OpenBAS-NWK-ETH3 or OpenBAS-NWK-ETHXP to an OpenBAS-HV-NX10
series controller in one of two ways:
•
SPI port as shown in section 4.5.1
•
RS-485 as shown in section 4.5.2 (OpenBAS-NWK-ETH3 only)
4.5.1 SPI Port
Connect the SPI port of OpenBAS-NWK-ETH3 or OpenBAS-NWK-ETHXP to the SPI port of
the OpenBAS-HV-NX10 series controller with the included cable.
Cat 5 cable
RS-485

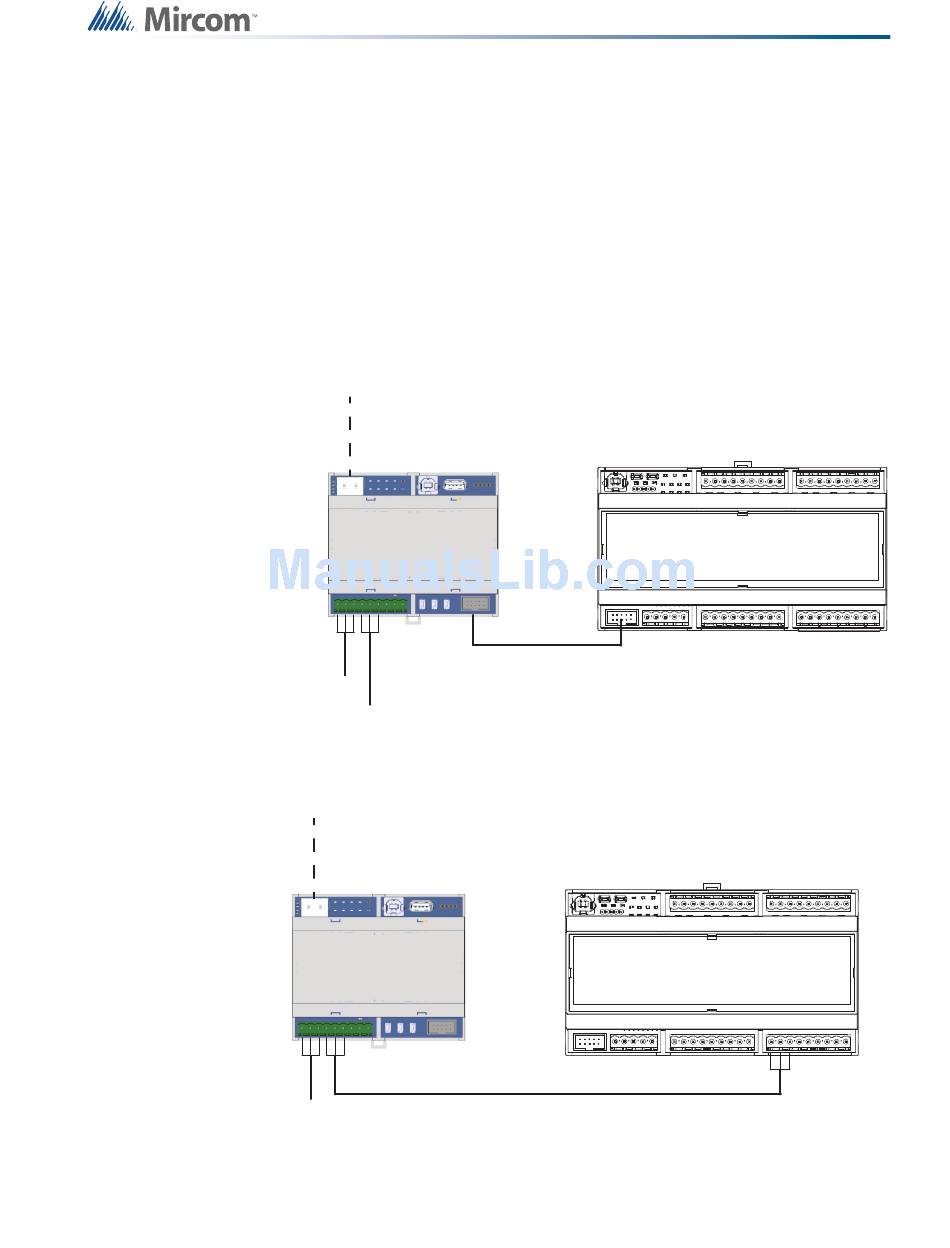

Figure 13 Networking with SPI
4.5.2 RS-485 (OpenBAS-NWK-ETH3 only)
Cat 5 cable
RS-485
Figure 14 Networking with RS-485
The list of supported protocols is in chapter 5.
OpenBAS-NWK-ETH3
Maximum 50 cm (20")
RS-485
OpenBAS-NWK-ETH3
OpenBAS-HV-NX10 Series
OpenBAS-HV-NX10 Series
RS-485
Field Wiring and LEDs
