3.9
Assembly

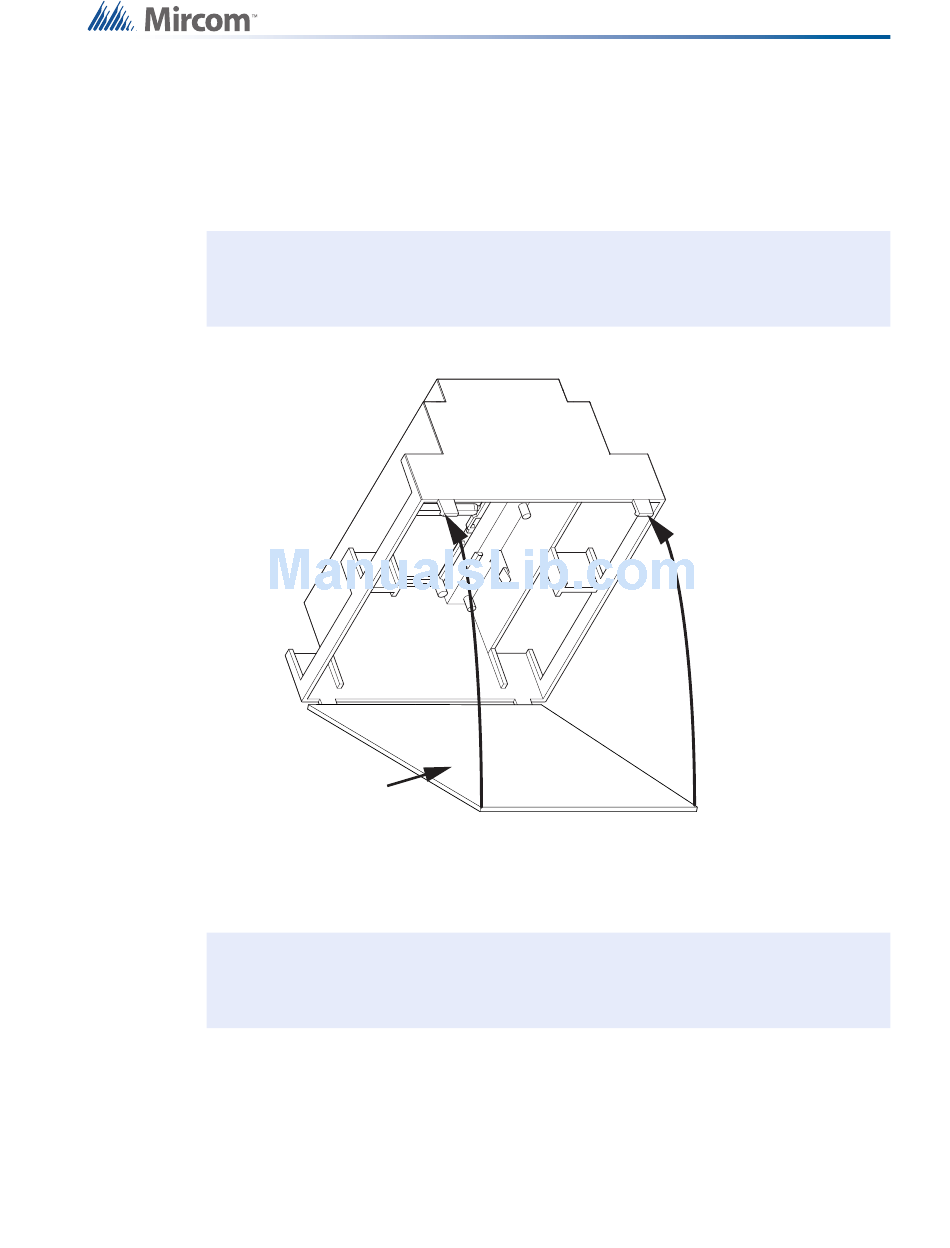

To put the circuit board in the enclosure
1. Hold the circuit board with one hand, and with the other hand lift the tabs so that you can
fit the circuit board into the enclosure as shown below.
i
Note:
Make sure that the board is the right way up: the terminal labels on the enclosure
must match the terminal labels on the circuit board.
Circuit board
Figure 9
2. Snap the base onto the enclosure. Make sure that the mounting clip is on the bottom.
3. Snap the cover onto the enclosure. Make sure that the Mircom logo is the right way up.
!
Attention: Always hold circuit boards by the edges to prevent damage from static
electricity. Always wear an anti-static bracelet when handling circuit
boards.
Fit the circuit board in the enclosure
Installation
17 (30)
