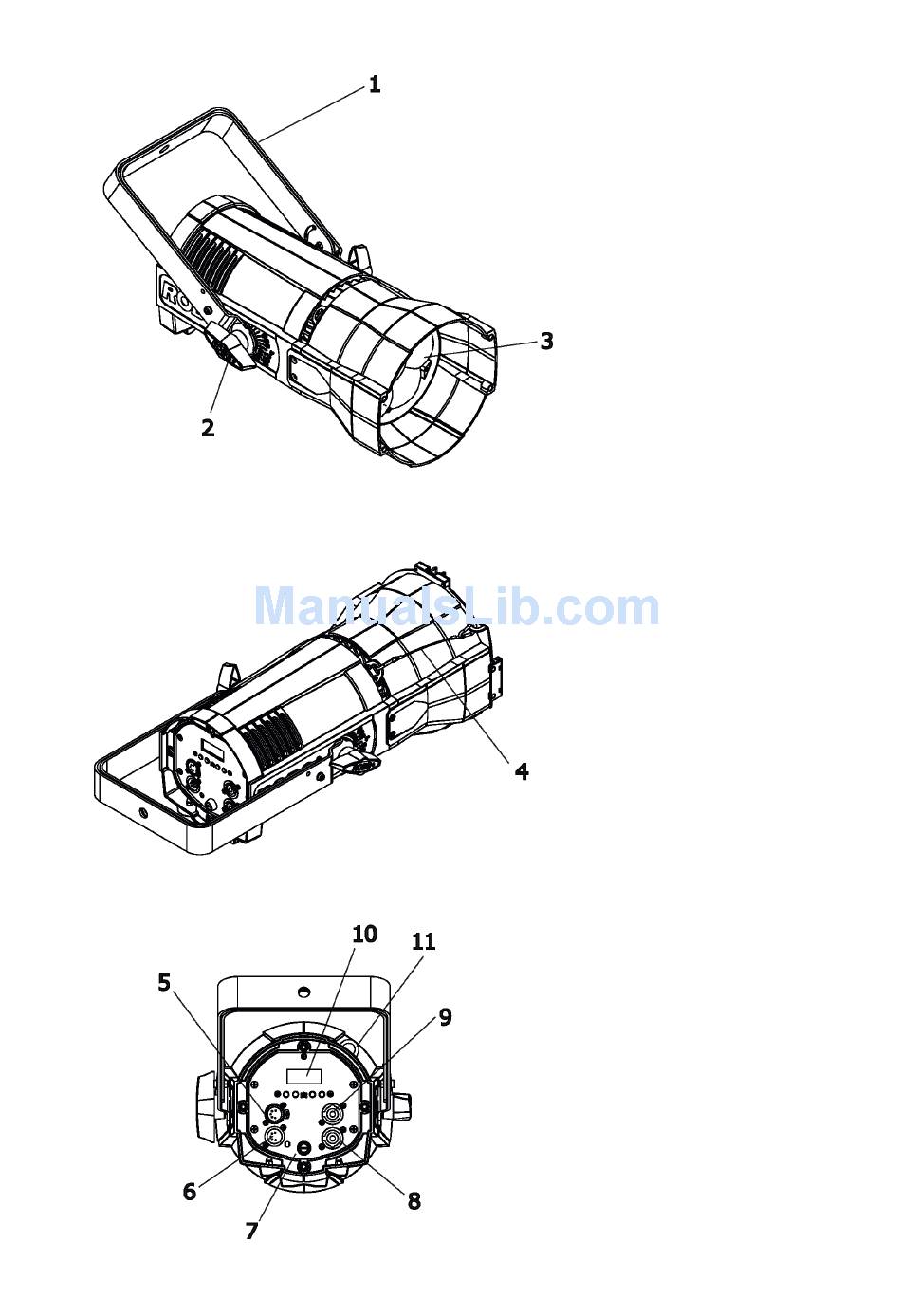

2. Fixture exterior view

5
1 - Mounting yoke
2 - Tilt locks
3 - Lenses array
4 - Safety wire securing accessory
frame adaptor to the housing
5 - DMX OUT
6 - DMX IN
7 - Fuse holder
8 - Mains IN
9 - Mains OUT
10 - Display and control buttons
11 - Safety wire attachment point
