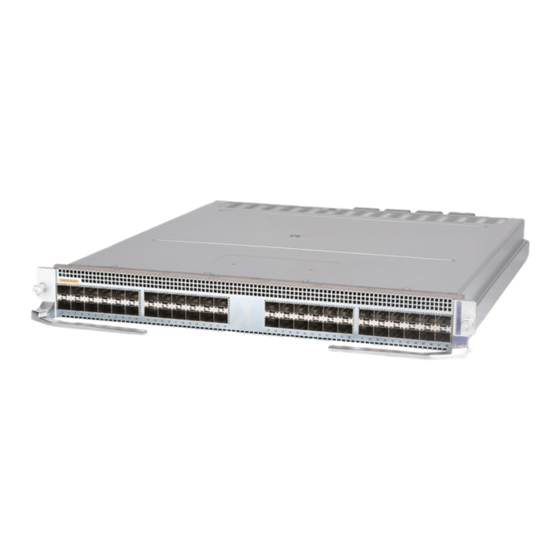

HPE FlexFabric 12900E Command Reference Manual
Hide thumbs
Also See for FlexFabric 12900E:
- Configuration manual (64 pages) ,
- Configuration manual (262 pages) ,
- Configuration manual (87 pages)
Subscribe to Our Youtube Channel
Related Manuals for HPE FlexFabric 12900E
Summary of Contents for HPE FlexFabric 12900E
- Page 1 HPE FlexFabric 12900E Switch Series IRF Command Reference Part number: 5200-1232a Software version: Release 2606 and later Document version: 6W101-20161201...
- Page 2 © Copyright 2016 Hewlett Packard Enterprise Development LP The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
-
Page 3: Table Of Contents
Contents IRF commands ································································································ 1 chassis convert mode irf ···························································································································· 1 display irf ···················································································································································· 2 display irf configuration ······························································································································ 3 display irf link ·············································································································································· 4 display irf topology ····································································································································· 5 display mad ················································································································································ 6 ... -
Page 4: Irf Commands
IRF commands chassis convert mode irf Use chassis convert mode irf to enable IRF mode. Use undo chassis convert mode to restore the default. Syntax chassis convert mode irf undo chassis convert mode Default The device operates in standalone mode. Views System view Predefined user roles... -
Page 5: Display Irf
The device will switch to stand-alone mode and reboot. You are recommended to save the current running configuration and specify the configuration file for the next startup. Continue? [Y/N]:y Do you want to convert the content of the next startup configuration file flash:/startup.cfg to make it available in stand-alone mode? [Y/N]:y Now rebooting, please wait... -
Page 6: Display Irf Configuration
Field Description Role of the MPU in the IRF fabric: • Standby—Standby MPU for the global active MPU. • Role Master—Global active MPU. • Loading—Standby MPU for the global active MPU. The standby MPU is loading software images. Priority IRF member priority. CPU-MAC MAC address of the CPU on the MPU. -
Page 7: Display Irf Link
disable disable # (In IRF mode.) Display basic IRF settings for all members. <Sysname> display irf configuration MemberID NewID IRF-Port1 IRF-Port2 HundredGigE1/1/0/1 disable HundredGigE1/1/0/2 disable HundredGigE2/1/0/1 HundredGigE2/1/0/2 Table 2 Command output Field Description MemberID Current member ID of the device. Member priority. -
Page 8: Display Irf Topology
Member 2 IRF Port Interface Status HundredGigE2/3/0/1 HundredGigE2/5/0/1 DOWN HundredGigE2/6/0/1 disable Table 3 Command output Field Description Member ID IRF member ID. IRF port number: • IRF Port 1—IRF-port 1. • 2—IRF-port 2. Physical interfaces bound to the IRF port. This field displays disable if no Interface physical interfaces have been bound to the IRF port. -
Page 9: Display Mad
Field Description IRF-Port2 Information about IRF-port 2, including its link state and neighbor. MemberID IRF member ID. Link state of the IRF port: • UP—The IRF link is up. • DOWN—The IRF link is down because the port has no physical link or has not been activated by the irf-port-configuration active command. - Page 10 Multi-active recovery state: No Excluded ports(user-configured): Vlan-interface999 Excluded ports(system-configured): HundredGigE1/3/0/25 HundredGigE1/3/0/26 HundredGigE2/3/0/27 HundredGigE2/3/0/28 MAD ARP disabled. MAD ND disabled. MAD LACP enabled interface: Bridge-Aggregation 1 MAD status : Normal Member ID Port MAD status HundredGigE1/3/0/1 Normal HundredGigE2/3/0/1 Normal MAD BFD enabled interface: VLAN-interface 3 MAD status : Normal Member ID...
-
Page 11: Easy-Irf
Specifies the member ID of a member device. The value range for the member ID is 1 to 8. For an HPE FlexFabric 12916E switch, the member ID must be 1 or 5. For an HPE FlexFabric 12908E switch, the member ID must be 1 or 3. For an HPE FlexFabric 12904E switch, the member ID must be 1 or 2. - Page 12 This command bulk-configures basic IRF settings for a member device, including the member ID, domain ID, priority, and IRF port bindings. The easy IRF feature provides the following configuration methods: • Interactive method—Enter the easy-irf command without parameters. The system will guide you to set the parameters step by step.
-
Page 13: Irf Auto-Merge Enable
To skip the current step, enter a dot sign (.). To return to the previous step, enter a minus sign (-). To use the default value (enclosed in []) for each parameter, press Enter without entering a value. To quit the setup procedure, press CTRL+C. ***************************************************************************** Select a member by its ID <1>... -
Page 14: Irf Auto-Update Enable
For a successful merge, make sure IRF auto-merge is enabled on the IRF fabrics that are merging. This command is supported only in IRF mode. When you change the operating mode from IRF to standalone, the setting for this command is lost, regardless of whether you have saved the configuration. -
Page 15: Irf Domain
software versions support ISSU compatible upgrade, see ISSU compatibility list in the release notes for the device. Examples # Enable the software auto-update feature. <Sysname> system-view [Sysname] irf auto-update enable irf domain Use irf domain to assign a domain ID to the IRF fabric. Use undo irf domain to restore the default. -
Page 16: Irf Mac-Address
Syntax irf link-delay interval undo irf link-delay Default The delay time is 4 seconds. Views System view Predefined user roles network-admin Parameters interval: Sets the IRF link down report delay in the range of 0 to 10000 milliseconds. If the interval is set to 0, link down events are reported without any delay. -
Page 17: Irf Mac-Address Persistent Always
Usage guidelines CAUTION: IRF bridge MAC address change causes transient traffic disruption. You can specify the bridge MAC address of an existing IRF fabric for a new IRF fabric to replace the existing IRF fabric with transient packet loss. This command is supported only in IRF mode. When you change the operating mode from IRF to standalone, the IRF bridge MAC address configuration is lost, regardless of whether you have saved the configuration. -
Page 18: Irf Member
HPE FlexFabric 12916E switch, the member ID must be 1 or 5. For an HPE FlexFabric 12908E switch, the member ID must be 1 or 3. For an HPE FlexFabric 12904E switch, the member ID must be 1 or 2. -
Page 19: Irf Member Description
<Sysname> system-view [Sysname] irf member 2 Related commands irf member renumber irf member description Use irf member description to configure a description for an IRF member device. Use undo irf member description to restore the default. Syntax irf member member-id description text undo irf member member-id description Default No description is configured for an IRF member device. -
Page 20: Irf Member Renumber
FlexFabric 12916E switch, the member ID must be 1 or 5. For an HPE FlexFabric 12908E switch, the member ID must be 1 or 3. For an HPE FlexFabric 12904E switch, the member ID must be 1 or 2. priority: Sets priority in the range of 1 to 32. The greater the priority value, the higher the priority. A member with higher priority is more likely to be the master. -
Page 21: Irf Priority
Usage guidelines CAUTION: IRF member ID change can invalidate member ID-related settings, including interface and file path settings, and cause data loss. Make sure you fully understand its impact on your live network. To have the new ID take effect, you must reboot the IRF member. To cancel the member ID change before you reboot the member device, use the undo irf member renumber command. -
Page 22: Irf-Port
Usage guidelines The member priority configured in standalone mode takes effect after you enable IRF mode. To change the member priority of a device in IRF mode, use the irf member priority command. The new priority setting takes effect at the next master election, but it does not trigger a master election. Examples # (In standalone mode.) Assign IRF member priority 32 to the device. -
Page 23: Irf-Port-Configuration Active
Related commands port group interface irf-port-configuration active Use irf-port-configuration active to activate IRF ports. Syntax irf-port-configuration active Views System view Predefined user roles network-admin Usage guidelines After connecting the physical interfaces between two devices and binding them to the correct IRF ports, you must use this command to activate the settings on the IRF ports. -
Page 24: Mad Arp Enable
# Activate the IRF port settings. [Sysname] irf-port-configuration active mad arp enable Use mad arp enable to enable ARP MAD. Use undo mad arp enable to disable ARP MAD. Syntax mad arp enable undo mad arp enable Default ARP MAD is disabled. Views Management Ethernet interface view VLAN interface view... -
Page 25: Mad Bfd Enable
Category Restrictions and guidelines • Connect a management Ethernet port on each member device to the common Ethernet ports on the intermediate device. To avoid ARP MAD failure caused by an active/standby MPU switchover, connect a Management Ethernet management Ethernet port on each MPU to the intermediate device. ports for ARP MAD •... - Page 26 Usage guidelines Do not configure BFD MAD together with ARP MAD. BFD MAD is mutually exclusive with the spanning tree feature, but ARP MAD requires the spanning tree feature. At the same time, BFD MAD handles collisions differently than ARP MAD. When you configure BFD MAD that uses common Ethernet ports, follow these guidelines: Category Restrictions and guidelines...
-
Page 27: Mad Enable
MAD together with ARP MAD on an IRF fabric. LACP MAD requires an HPE device that supports extended LACPDUs to act as the intermediate device. You must set up a dynamic link aggregation group that spans all IRF member devices between the IRF fabric and the intermediate device. -
Page 28: Mad Exclude Interface
[Sysname-Bridge-Aggregation1] link-aggregation mode dynamic [Sysname-Bridge-Aggregation1] mad enable You need to assign a domain ID (range: 0-4294967295) [Current domain is: 0]: 1 The assigned domain ID is: 1 MAD LACP only enable on dynamic aggregation interface. # Enable LACP MAD on Route-Aggregation 1, a Layer 3 dynamic aggregate interface. <Sysname>... -
Page 29: Mad Ip Address
The ports and interfaces that have been shut down by MAD come up when the member devices reboot to join the recovered IRF fabric. If auto recovery fails because the current master fails or any other exception occurs, use the mad restore command to manually recover the member devices and bring up the ports and interfaces. -
Page 30: Mad Restore
Examples # Assign a MAD IP address to IRF member 1 on VLAN-interface 3. <Sysname> system-view [Sysname] interface vlan-interface 3 [Sysname-Vlan-interface3] mad ip address 192.168.0.1 255.255.255.0 member 1 # Assign a MAD IP address to IRF member 2 on VLAN-interface 3. [Sysname-Vlan-interface3] mad ip address 192.168.0.2 255.255.255.0 member 2 Related commands mad bfd enable... - Page 31 Predefined user roles network-admin Parameters interface-type interface-number: Specifies a physical interface by its type and number. interface-name: Specifies a physical interface in the interface-typeinterface-number format. No space is allowed between the interface-type and interface-number arguments. mode enhanced: Sets the binding mode to enhanced for the IRF physical interface. The binding mode is always the enhanced mode regardless of whether you specify this keyword.
-
Page 32: Document Conventions And Icons
Document conventions and icons Conventions This section describes the conventions used in the documentation. Port numbering in examples The port numbers in this document are for illustration only and might be unavailable on your device. Command conventions Convention Description Boldface Bold text represents commands and keywords that you enter literally as shown. -
Page 33: Network Topology Icons
Network topology icons Convention Description Represents a generic network device, such as a router, switch, or firewall. Represents a routing-capable device, such as a router or Layer 3 switch. Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that supports Layer 2 forwarding and other Layer 2 features. -
Page 34: Support And Other Resources
Support and other resources Accessing Hewlett Packard Enterprise Support • For live assistance, go to the Contact Hewlett Packard Enterprise Worldwide website: www.hpe.com/assistance • To access documentation and support services, go to the Hewlett Packard Enterprise Support Center website: www.hpe.com/support/hpesc Information to collect •... -
Page 35: Customer Self Repair
Hewlett Packard Enterprise is committed to providing documentation that meets your needs. To help us improve the documentation, send any errors, suggestions, or comments to Documentation Feedback (docsfeedback@hpe.com). When submitting your feedback, include the document title, part number, edition, and publication date located on the front cover of the document. For online help content, include the product name, product version, help edition, and publication date located on the legal notices page. -
Page 36: Index
Index C D E I M P R W irf member description,16 irf member priority,16 chassis convert mode irf,1 irf member renumber,17 Customer self repair,32 priority,18 irf-port,19 irf-port-configuration active,20 display irf,2 display irf configuration,3 display irf link,4 mad arp enable,21 display irf topology,5 mad bfd...
