HPE OfficeConnect 1910 Switch Series - How to Connect Serial Cable to the
Switch and Setup Configuration
Article Number mmr_sf-EN_US000005201
Environment
HPE 1910 Switch
Issue
How to connect serial cable to switch
How to setup configuration
How to check default IP address
How to add IP address
Cause
Resolution

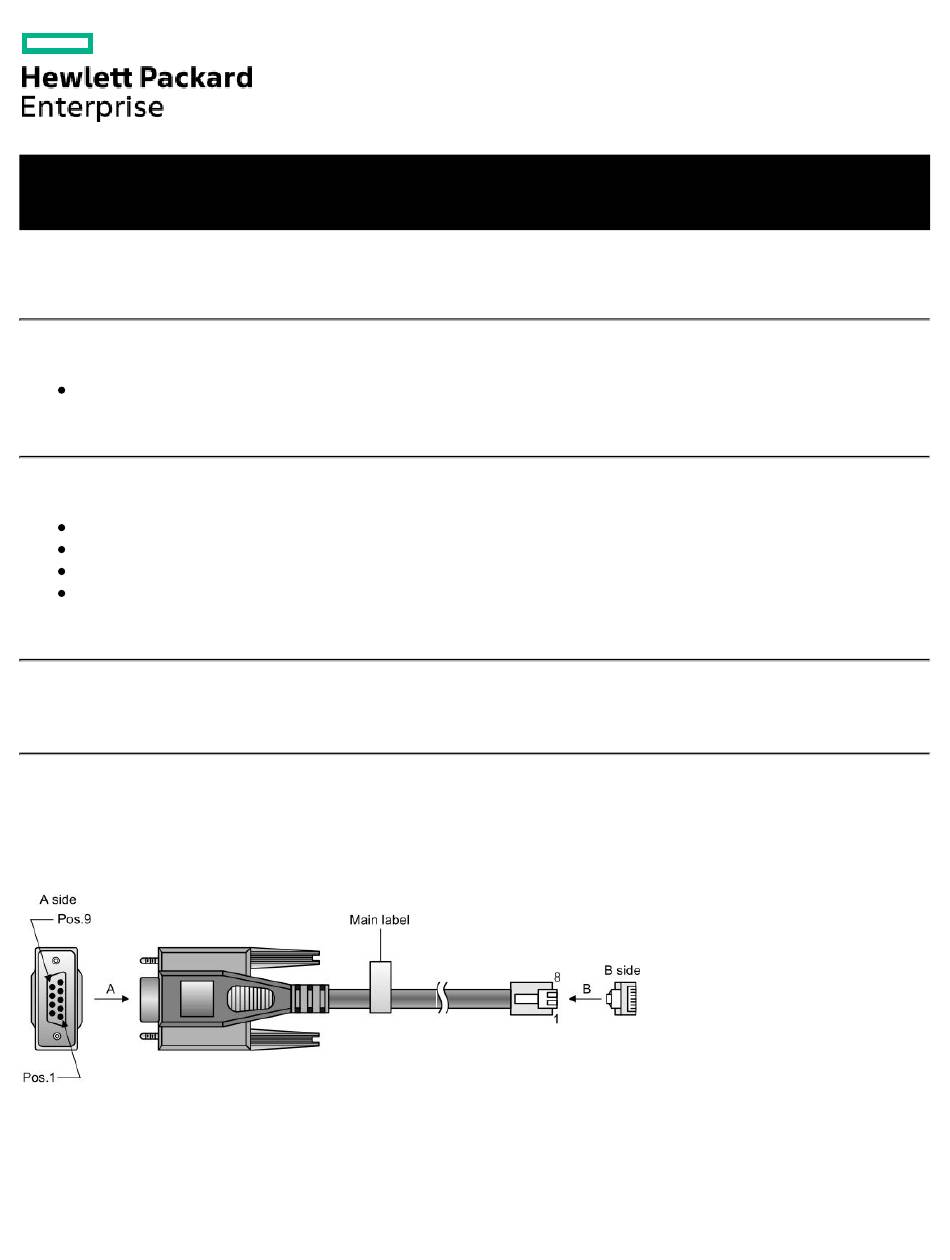

1.Setting up the configuration environment: To set up the configuration environment, connect a terminal (a PC in this example) to the console po
switch with a console cable. A console cable is an 8-core shielded cable, with a crimped RJ-45 connector at one end for connecting to the conso
the switch, and a DB-9 female connector at the other end for connecting to the serial port on the console terminal.
Use a console cable to connect a terminal device to the switch, as follows:
1.
Plug the DB-9 female connector to the serial port of the console terminal or PC.
2.
Connect the RJ-45 connector to the console port of the switch.
HPE Knowledge Article
