Silicon Laboratories Si825x User Manual page 16

Si825x Multi-Phase POL-RD
8.3. System Parameter Programmer
The System Setting Programmer allows the designer to input all system settings (UVLO, OV, OCP, etc.) and then
converts these parameters to HEX and populates the resulting initialization code in the Kernel. To open the
System Settings window, open the Application Builder and select System ConfigurationSystem Settings
from the menu (see Figure 13).
.

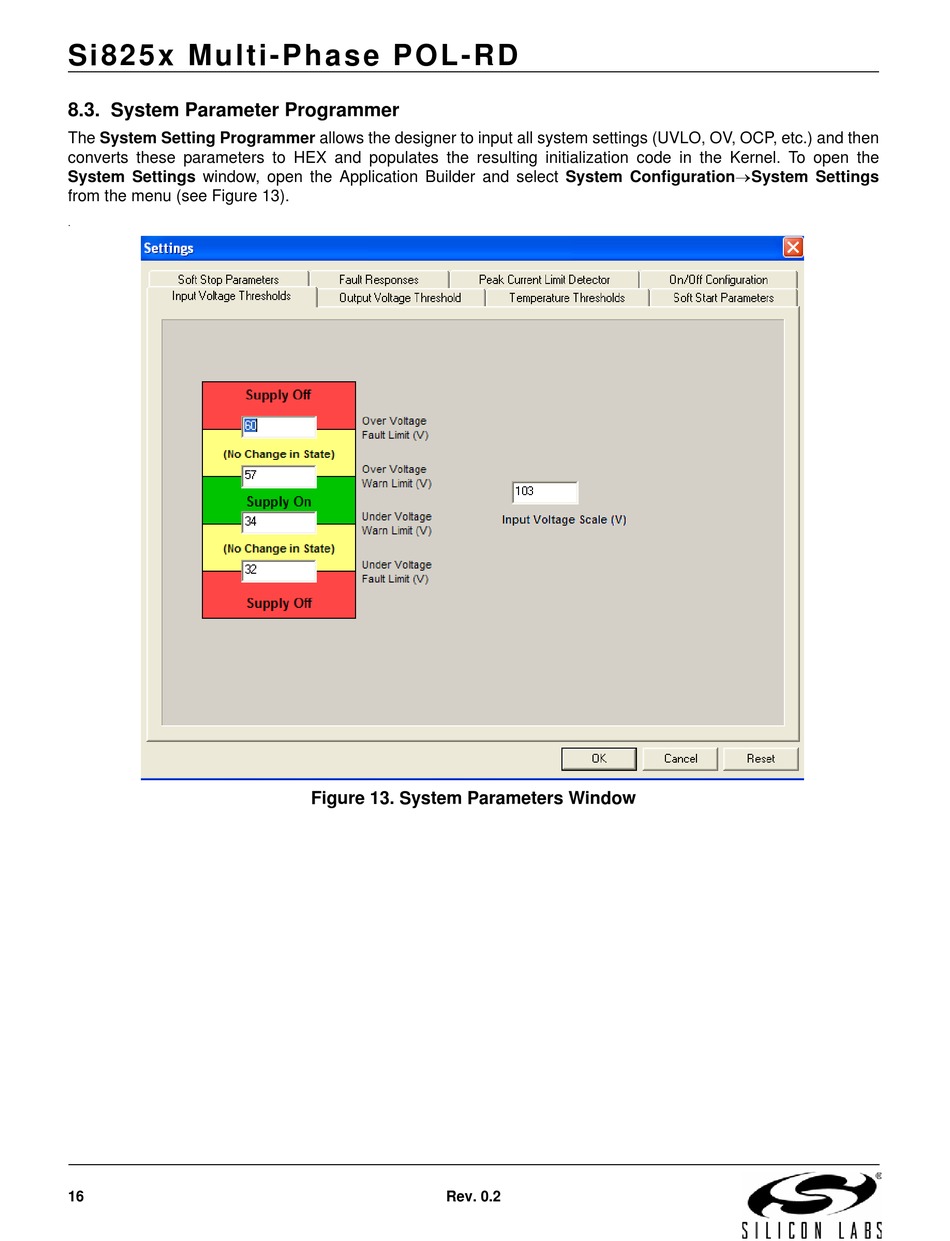

Figure 13. System Parameters Window
16 Rev. 0.2
