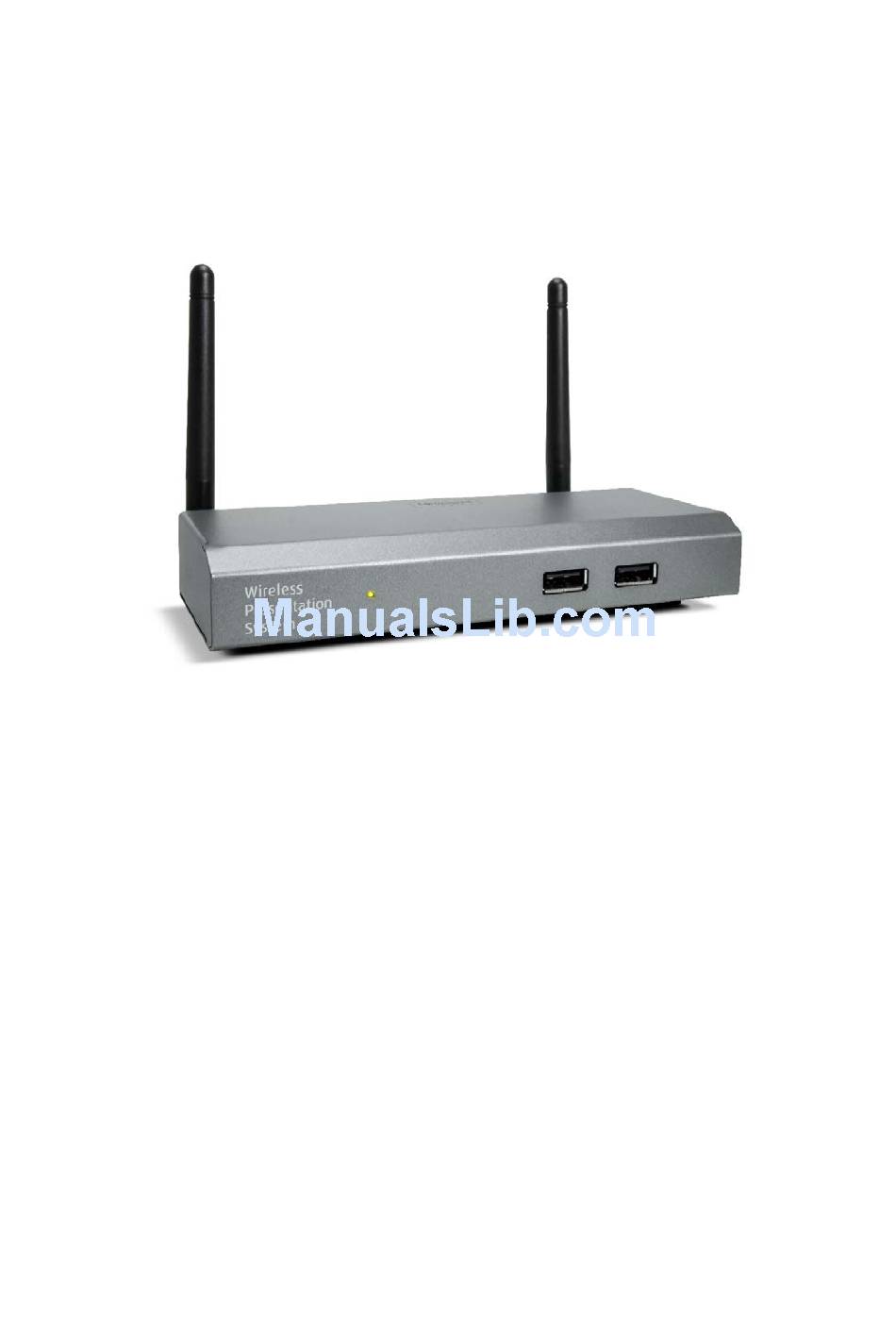

- Page 1 Wireless Presentation System (Model Name: WGA-510P) Version: 1.0 Date: 26, October 2016...
-
Page 2: Package Contents
WGA-510P 1. Package Contents WGA-510P Box USB Token Power Adapter (DC +5V, 2.6A) WiFi Antenna x 2 Wall-Mount Kit Quick Installation Guide Warranty Card CE DoC 2. USB Token Contents MirrorOp Installer for Windows ... -
Page 3: Rear Panel
WGA-510P Rear Panel • USB Port Audio Jack RJ-45 HDMI Power Jack Antenna Antenna WiFi Antenna USB Port (Rear) USB Port for USB IWB Device (HID Type) RJ-45 10/100M RJ-45 Port VGA Connector HDMI HDMI Connector Audio Jack Audio Jack (3.5mm) Power Jack Power Jack (5V/2.6A) -
Page 4: What You Might Need
1) Connect the WGA-510P box to the projector/display through the VGA/HDMI port and turn on the projector/display power. 2) Connect the power adaptor to the WGA-510P box. The system will be ready when the LED light turns green. The default standby screen as shown below will be displayed when the system is ready. -
Page 5: Install The Application
(SSID) of your WGA-510P box on the standby screen of the projector/display. [Default SSID is WGA-510P] 2) Open your browser, and enter the IP address of your WGA-510P box in the address bar of the browser. You can find the IP address on the standby screen of the projector/display. -
Page 6: Start The Application
6.2 Start the application 1) Click the MirrorOp icon on the desktop to execute the application, or launch the MirrorOp application from the USB token directly. 2) It will start to search for the WGA-510P device automatically. - Page 7 WGA-510P 3) Click on the WGA-510P device and enter the login code shown on the display. 4) Click the “PLAY” button to start the screen sharing.
- Page 8 1) Make sure your Mac is WiFi-enabled, and connect your Mac to the WGA-510P box through WiFi. 2) Open your browser, and enter the IP address of your WGA-510P box in the address bar of the browser. You can find the IP address on the standby screen of the projector/display.
- Page 9 1) Click on the MirrorOp icon from the Applications folder to execute the application. 2) It will start to search for the WGA-510P device automatically. 3) Click on the WGA-510P device and enter the login code shown on the display.
- Page 10 WGA-510P 4) Click the “PLAY” button to start the screen sharing. Safety : Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 11 WGA-510P -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the...
