Bottom View - General Dynamics Itronix GoBook VR-2 Help Manual

VR-2 Help
5 Serial Port
6 External Monitor Port
7 Cooling Fan Intake
8 Hard Handle (optional)

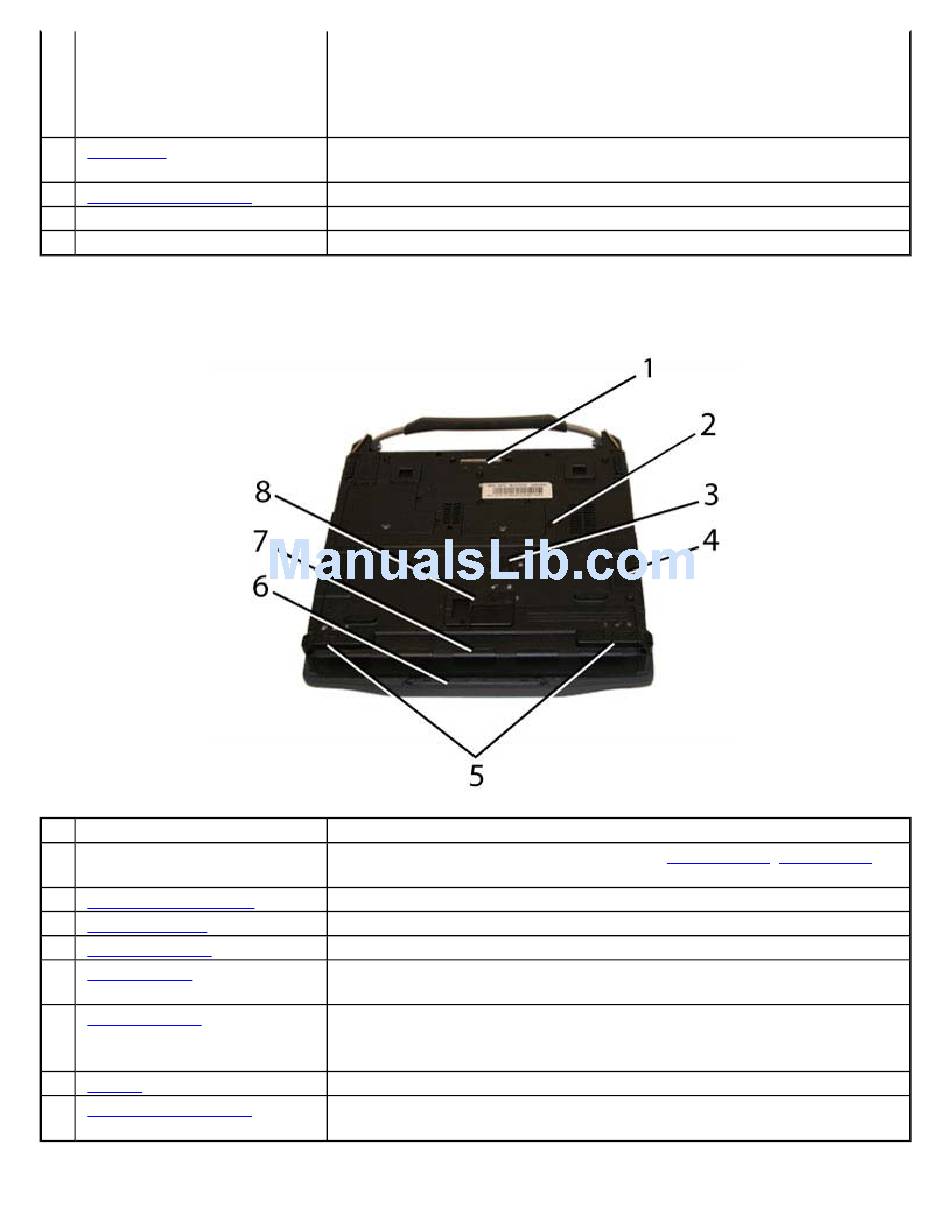

Bottom View

Hover the mouse over each number on the picture to see a description
# Feature
1 Docking Connector
2 Memory compartment
3 Hard Disk Lock
4 Hard Disk Drive
5 Battery Locks
6 Pen/Stylus Slot
7 Battery
8 Battery Release Latch
file://C:\Documents and Settings\harwoodm\Local Settings\Temp\~hh3F7F.htm
using the 56 Kbps V.90 or V.92 protocol, and send and receive faxes at
14.4 Kbps.
NOTE In some countries, local regulations may not permit the use of the
fax/modem designed for this system. In this case, you may use a
PCMCIA modem
Connects your computer to serial devices such a fax/modem or a serial
mouse. This port is identified as COM3 and is UART 16550A compatible
Connects to a display monitor (up to 2048x1536 resolution)
Air intake for fan. Do NOT block this area
Carrying handle
Description
84-pin cradle connector that mates with the
and Mini-Dock
User expandable memory slot
Slide this to lock or unlock the hard disk drive
Removable hard disk drive for data storage
Slide these locks toward the outer edges of the computer to lock the
battery
A custom touch screen pen (stylus) is supplied with each unit equipped
with the optional touch screen and is stored in a slot located on the left
side of the display
Lithium-Ion Smart Battery
Slide this latch to the left to remove the battery. NOTE You must first
unlock the battery
Page 10 of 70
Vehicle Dock, Office Dock,
4/26/2007
