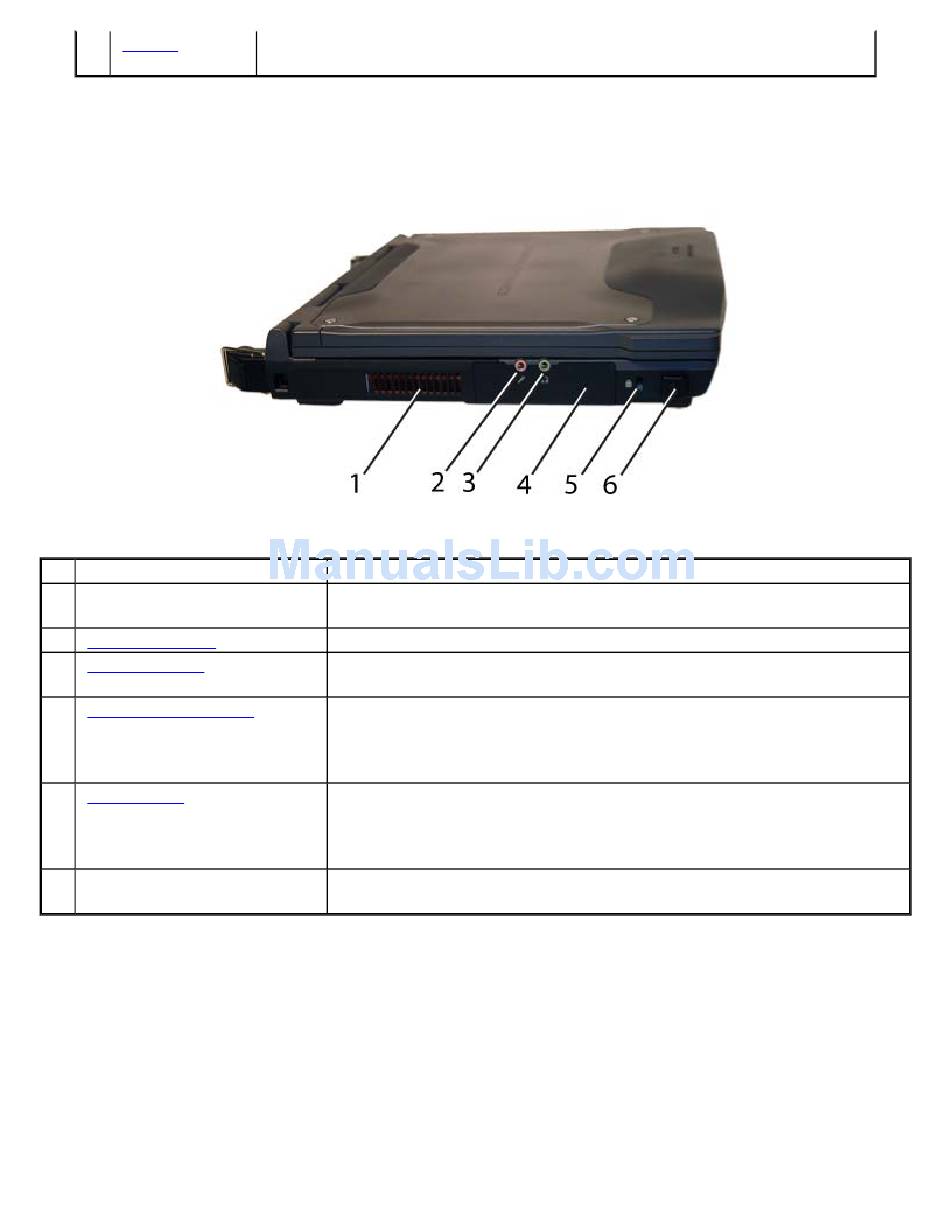

Left Side View

Hover the mouse over each number on the picture to see a description
# Feature
1 Cooling Fan Exhaust
2 Microphone Jack
3 Audio Out Jack
4 Removable Hard Disk
5 Security Slot
6 Front Handle Mount

Right Side View

Hover the mouse over each number on the picture to see a description
file://C:\Documents and Settings\harwoodm\Local Settings\Temp\~hh3F7F.htm
Antenna for WLAN Communications
Description
Cooling Fan exhaust area. Do Not Block. This area may become hot as
air vents from the computer
Connect a microphone to this jack to record audio
Connect external speakers or a stereo headset to this jack to listen to
multimedia
The removable Hard Disk Drive is located on the left side of the unit. The
latch that secures the Hard Dick Drive is located on the bottom of the unit.
NOTE: make sure the unit is powered off before removing the Hard Disk
Drive to prevent data corruption
The Security Slot can be used with a standard laptop-locking device, such
as a Kensington Lock. You can connect the GoBook VR-2 to a large
object with the lock to prevent theft of your GoBook VR-2. See the
documentation that comes with your lock for more information
The front soft handle mount, located on both sides of the unit, is used with
the optional soft handle
