- HoTT
Connect the battery backer's telemetry output to the receiver's sensor
input using a standard Uni patch-lead. Select the "Electric Air Module" in
your transmitter's Telemetry menu.
- Jeti
Connect the battery backer's telemetry output to the receiver's "Ext" in-
put using a standard Uni patch-lead. You will now see "PowerBox" on your
transmitter screen, and can arrange the four values on your screen.

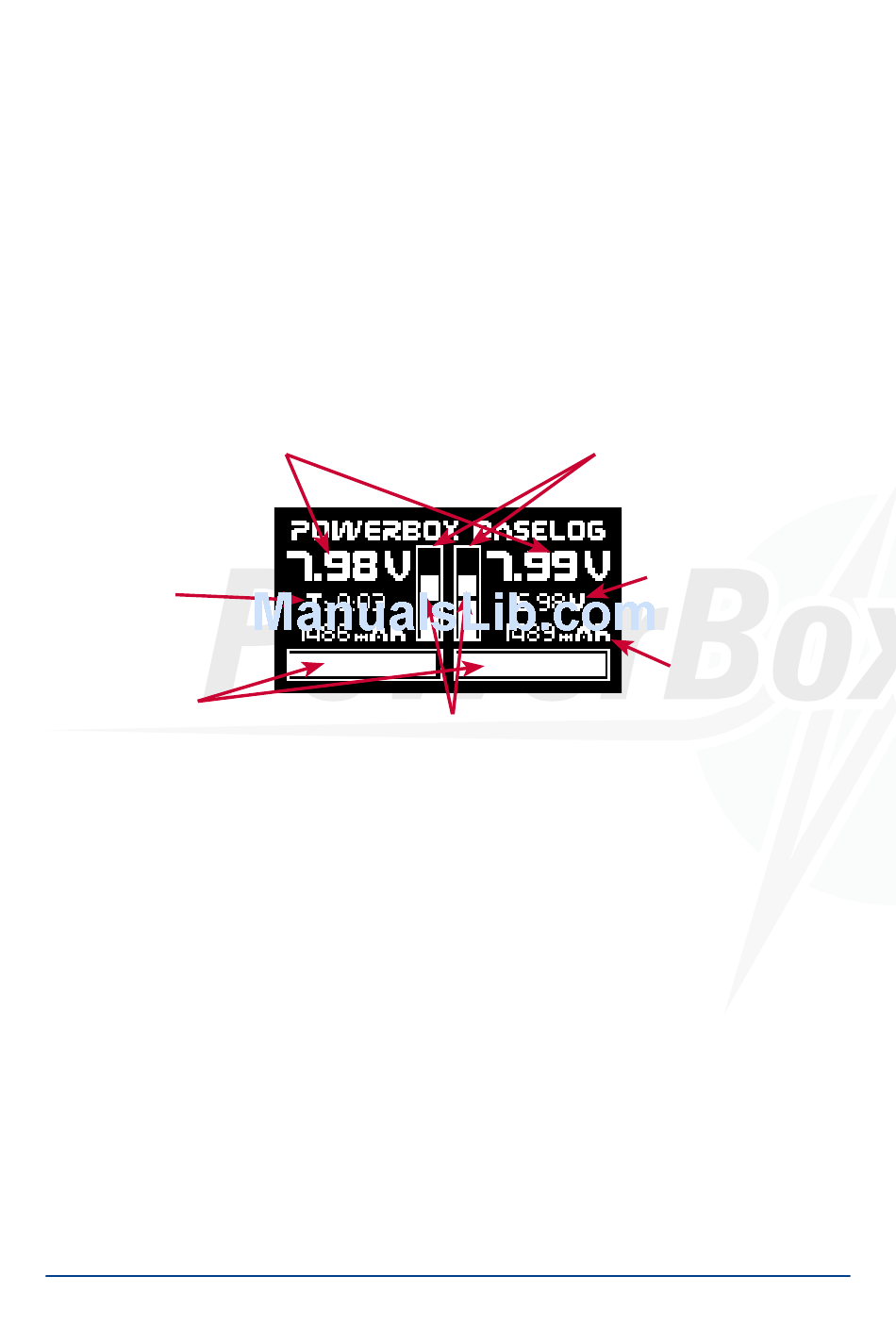

f) Key to the Parameters display
Digital voltage display,
battery 1 and battery 2
Time since the
last RESET
Graphic display of
charge state,
battery 1 and 2
- Digital voltage display:
This extremely accurate display shows the voltage present at the battery
backer's input.
-Graphic voltage display:
The graphic display also allows you to see the momentary voltage of the
batteries at a glance. The scale of the display is designed in such a way
that the batteries should be recharged when the bar falls to the bottom
third. If the vertical bars disappear completely, the model cannot be flown
with safety.
- Minimum value memory:
The minimum value memory takes the form of a narrow black horizontal
bar in the graphic voltage display. This feature lets you see at a glance the
extent to which battery voltage has fallen during the flight. If the voltage
has collapsed to below half of the scale, this is a clear warning that you
8
Minimum value memory
PowerBox-Systems − World Leaders in RC Power Supply Systems
Graphic voltage display,
battery 1 and battery 2
Set output voltage
Digital display of
residual battery
capacity in mAh
