Summary of Contents for Mindray T1

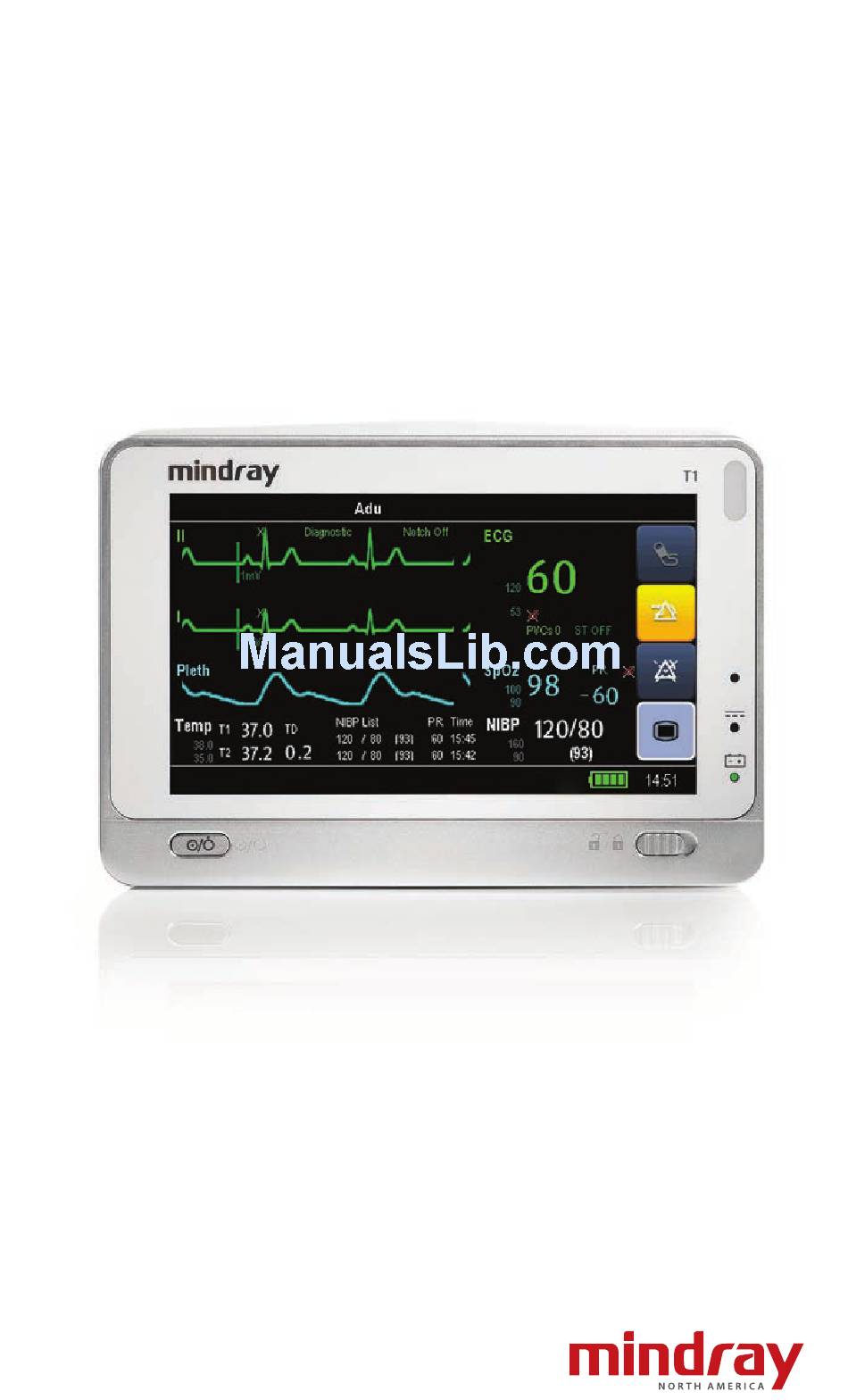

  • Page 1 P A T I E N T M O N I T O R Q u i c k R e fe re n ce G u i d e...
  • Page 2 Note: The T1 Quick Reference Guide is not intended as a replacement to the Operating Instructions. Prior to operating equipment, the user must be familiar with the Operating Instructions Manual contents. This document is a guideline only to be used as an aid to...

  • Page 3: Table Of Contents

    Table of Contents Patient Setup ........... . . Admit Patient and Enter Demographics(Manual Entry) .
  • Page 4 Table of Contents (cont'd) Reset Alarms ........... . Pause All Alarms .

  • Page 5: Patient Setup

    Select Ok to return to main display DPM Central Station Interface: Entering demographic information on the DPM Central Station automatically enters it at the T1 bedside monitor. Entering demographic information on the T1 bedside monitor automatically enters it on the DPM Central Station. Admit button selection is required for patient information to be displayed or stored on the DPM Central Station.

  • Page 6: Adjust Patient Size

    Central Station. Discharge a Patient The Discharge function clears all patient information and restores default (preconfigured) settings. To Discharge a patient on the T1 monitor: a. Scroll and select Patient Setup >> from Main Menu (quick key) b. Select Discharge Patient c.

  • Page 7: Standby

    Select Yes to confirm Resume Monitoring To remove a patient from Standby and resume monitoring on the T1 monitor move the Lock/Unlock key to the right to resume monitoring. DPM Central Station Interface: Selecting Standby on the T1 bedside monitor automatically places the DPM Central Station in standby.

  • Page 8: Print

    DPM Central Station Interface: Selecting Print in the Realtime Report menu on the T1 bedside monitor will print a 10-second, Realtime Report on the DPM Central Station. The waveforms printed are determined by the T1 bedside monitor.

  • Page 9: Enable Pacemaker Detection And Set Pacemaker Rate

    Select Main Menu (quick key) or to return to the main display DPM Central Station Interface: Adjusting ECG leads on the T1 bedside monitor and DPM Central Station are independent. Panorama Central Station Interface: Adjusting ECG leads on the T1 bedside monitor, Panorama Central Station, WorkStation, and ViewStation are independent.

  • Page 10: Initiate Ecg Relearn

    Quick Reference Guide Panorama Central Station Interface: Pacemaker enhancement on the T1 bedside monitor, Panorama Central Station, WorkStation, and ViewStation are independent. Initiate ECG Relearn (Arrhythmia Option Required) To initiate ECG relearning manually on the T1 monitor: a. Select ECG waveform or ECG numeric tile to enter the ECG Setup menu a.
  • Page 11 Quick Reference Guide of BP (systolic and diastolic) while too large a cuff results in the underestimation of BP. Errors in the 10 to 40 mmHg range can occur. Ensure that the cuff is wrapped directly over the patient’s skin. BP measurement could be 10 to 40 mmHg higher or lower than actual when the cuff is applied over clothing.

  • Page 12: Initiate A Non-Invasive Blood Pressure Measurement (Nibp)

    J Hypertens 2003; 21: 821-848. Initiate a Non-Invasive Blood Pressure Measurement (NIBP) To initiate a NIBP measurement for a patient on the T1 monitor: a. Select NIBP (quick key) on the main display a. Select NIBP numeric tile to enter the NIBP Setup menu b.

  • Page 13: Set A Non-Invasive Blood Pressure Measurement Interval

    Set a Non-Invasive Blood Pressure Measurement Interval The T1 allows the clinician to set an interval for a NIBP measurement to be obtained automatically. To set an automatic interval on the T1 monitor: a. Select NIBP numeric tile to enter the NIBP Setup b.

  • Page 14: Zero Invasive Blood Pressure

    (quick key) or to return to the main display Zero Invasive Blood Pressure To zero an invasive blood pressure transducer on the T1 monitor: a. Connect the invasive blood pressure cable to the invasive blood pressure transducer set b. Position transducer and open the invasive line in accordance with hospital policy c.

  • Page 15: Adjust Alarm Responses

    Panorama Central Station Interface: Changing alarm limits on the Panorama Central Station or WorkStation will automatically change alarm limits on the T1 bedside monitor. Changing alarm limits on the T1 bedside monitor will automatically change alarm limits on the Panorama Central Station and WorkStation.

  • Page 16: Adjust Arrhythmia Alarms

    DPM Central Station Interface: Adjusting arrhythmia alarms on the DPM Central Station or WorkStation will not change arrhythmia alarms on the T1 bedside monitor. Adjusting arrhythmia alarms on the T1 bedside monitor will affect the arrhythmia alarms on the DPM Central Station.

  • Page 17: Reset Alarms

    DPM Central Station for the duration of the alarm. Selecting Alarm Reset on the DPM Central Station can reset the alarm on the T1 bedside monitor for the duration of the alarm (Configurable Option at the DPM Central Station).

  • Page 18: History

    Tabular Trends f. Select Main Menu (quick key) to return to the main display To print a patient's Tabular (List) trends on the T1 (Laser Printer Required): a. Scroll and select Review >> from Main Menu (quick key) b.

  • Page 19: Arrhythmia And Alarm Events

    The Events tab stores 100 physiological and arrhythmia events for a patient based on the Alarm Setup menu. To view and print a patient's alarm event on the T1 monitor: a. Scroll and select Review >> from Main Menu (quick key) b.

  • Page 20: Volumes

    Panorama Central Station Interface: Full disclosure storage on the T1 bedside monitor and Panorama Central Station are independent. VOLUMES The alarm volume, key volume, and QRS volume can be adjusted on the T1 monitor. Alarm Volume To adjust the alarm volume on the T1 monitor: a.

  • Page 21: Alternate Operating Modes

    Panorama Central Station Interface: Night Mode is not supported at the T1 bedside monitor when interfacing to the Panorama Central Station. Privacy Mode To suspend alarm notification and turn off the display on the T1 bedside monitor when admitted to the DPM Central Station:...

  • Page 22: Date And Time

    Central Station Interface: Adjusting the date and time on the Central Station will adjust the date and time on the T1 bedside monitor. The date and time cannot be adjusted at the T1 bedside monitor when interfacing with the Central Station because date and time are controlled by the central station.

  • Page 23: Load Default(Preset) Settings

    Select Yes to confirm and return to the main display LOCK/UNLOCK TOUCHSCREEN DISPLAY The T1 monitor provides the ability to lock and unlock the touchscreen display. The T1 monitor touchscreen automatically locks if it is not touched for >60 seconds.

  • Page 24: Cleaning/Disinfecting

    Quick Reference Guide CLEANING/DISINFECTING Cleaning the Main Unit/Module/Handle/Docking Station Clean your equipment on a regular basis. Before cleaning, consult your hospital's regulations for cleaning the equpment. The following table lists approved cleaning and disinfecting agents. Product Name Product Type Ingredients Sodium hypochlorite Liquid Sodium hypochlorite bleach...
  • Page 25 Quick Reference Guide Product Name Product Type Ingredients Alpet® D2 Surface Wipes Isopropyl Alcohol 58.6000%® Sanitizing Wipes Octyl Decyl Dimethyl Ammonium chloride 0.0075%, Dioctyl Dimethyl Ammonium Chloride 0.0030% Clorox Dispatch® Hospital Sodium Hypochlorite 0.65% Cleaner Disinfectant Towels with Bleach Clorox Healthcare®Bleach Sodium Hypochlorite 0.55% Germicidal Wipes Clorox Healthcare®...

  • Page 26: Disinfecting The Main Unit/Module/Handle/Docking Station

    Cleaning equipment before disinfecting is recommended. Cleaning and Disinfecting the Accessories For information about cleaning and disinfecting of accessories, please refer to the manufacturer's packaging or the T1 Patient Monitor Operator's Manual.

  • Page 27: Sterilization

    STERILIZATION Sterilization is not recommended for this equipment, related products, accessories, or supplies unless otherwise indicated in the Instructions for Use that accompany the products, accessories or supplies.
  • Page 28 Mindray DS USA, Inc. 800 MacArthur Blvd., Mahwah, NJ 07430 Tel: 800.288.2121 or 201.995.8000 www.mindray.com 0 4 6 - 0 0 5 8 5 0 - 0 0 ( 4 . 0 )
