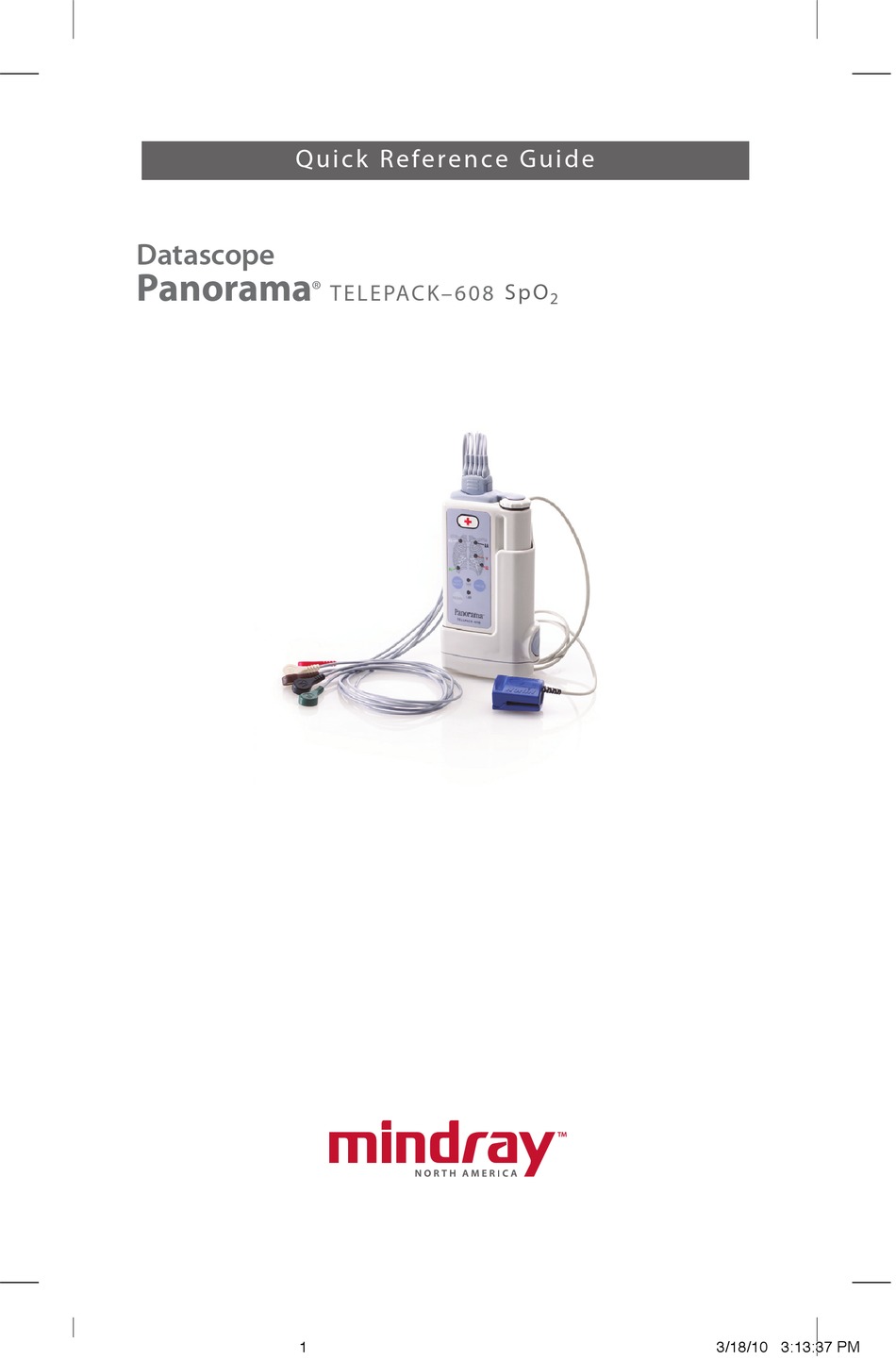

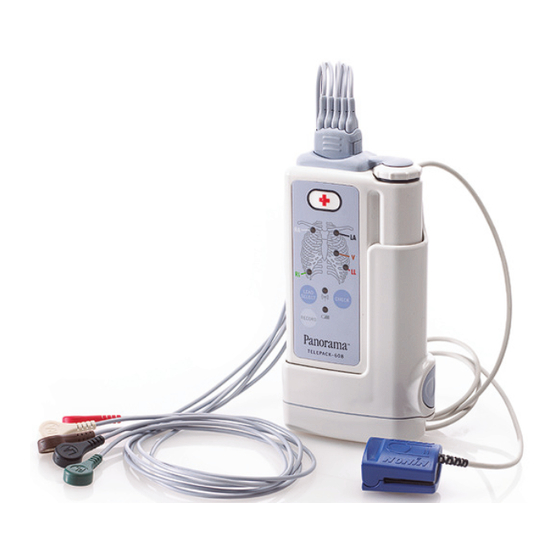

- Page 1 Q u i c k R e fe re n ce G u i d e Datascope Datascope Panorama Panorama ® ® S p O M O D U L E T E L E PAC K– 6 0 8 Panorama_Telepk QRG_0003_rB.indd 1 3/18/10 3:13:37 PM...
- Page 2 Note: The Panorama Telepack SpO module can be used with the Panorama Telepack-608 device and/or the Panorama Telepack-2.4 GHz device. Panorama is a registered trademark of Mindray DS USA, Inc. ® P/N: 0077-00-0003-01 Rev B Panorama_Telepk QRG_0003_rB.indd 2 3/18/10 3:13:37 PM...
-
Page 3: Table Of Contents
Table of Contents Overview ..........1 Print Real-Time Waveforms . - Page 4 Panorama_Telepk QRG_0003_rB.indd 4 3/18/10 3:13:37 PM...
-
Page 5: Overview
Panorama ® Telepack-608 SpO Quick Reference Guide Overview The Panorama Telepack with the SpO Module measures functional oxygen saturation of the arterial hemoglobin (% SpO ) and pulse rate (BPM) for the adult patient. The following information is available at the Panorama Central Station, ViewStation, and/or Interactive Workstation: 1. -
Page 6: Installing The Spo
Panorama ® Telepack-608 SpO Quick Reference Guide e. Align SpO module with Panorama Telepack and slide SpO module onto telemetry pack until an audible “click” is heard f. Ensure ECG lead wires set is connected to Panorama Telepack g. Turn Panorama Telepack on by rotating battery door clockwise Installing the SpO patient cable and sensor:... -
Page 7: Printing Real Time Spo
Panorama ® Telepack-608 SpO Quick Reference Guide d. Select waveform 2 e. Choose Pleth waveform from the waveform list box f. Choose SELECT to confirm Printing Real Time SpO Waveform: To select and print an All Strips Report at the Panorama Central Station, ViewStation, and/or Interactive Workstation containing the SpO waveform,... - Page 8 Panorama ® Telepack-608 SpO Quick Reference Guide b. Select patient tile by touching the digital data area or the waveform area of the tile c. Select ALARM LIMITS tab d. Select the SpO Parameter using the or ➞ ➞ buttons e.
-
Page 9: Viewing And Printing Trends
Panorama ® Telepack-608 SpO Quick Reference Guide • S ave To Event - Determines if the alarm event is saved in the Events tab to be retrieved at a later time. • P age On Alarm* - Determines if the alarm event sends a page request to the assigned pager(s). Viewing and Printing Trends: The List Trends Tab at the Panorama Central Station, ViewStation, and Interactive Workstation allows viewing and printing of all available vital sign information in list... -
Page 10: Disabling The Spo
Panorama ® Telepack-608 SpO Quick Reference Guide To view Events at the Panorama Central Station, Viewstation, and/or Interactive Workstation, a. Select VIEW adjacent to the patient tile b. Select EVENTS tab to view the Event List To view and print an SpO event in the Event List at the Panorama Central Station, Viewstation, and/or Interactive Workstation,... -
Page 11: Cleaning The Spo
Panorama ® Telepack-608 SpO Quick Reference Guide d. Replace flexible cover (from bottom of SpO module) over connection site on bottom of Panorama Telepack e. Turn Panorama Telepack on by rotating the battery door clockwise to continue ECG monitoring f. Replace cleaning plug over connection site on inside of SpO module Cleaning the SpO... - Page 12 Panorama ® Telepack-608 SpO Quick Reference Guide b. ECG lead wires disconnected • A ttach ECG lead wires sets to Panorama Telepack c. SpO module not completely connected • T urn off the Panorama Telepack by rotating battery door counterclockwise • D isable the SpO module by pressing the release button • A lign SpO module with Panorama Telepack and slide module onto telemetry pack until an audible “click”...
- Page 13 Panorama ® Telepack-608 SpO Quick Reference Guide • S elect patient tile by touching the digital data area or the waveform area of the tile • S elect DISPLAY Tab • V erify SpO is assigned in digital data tile i. If unassigned select digital data tile and select SpO from the parameter list box • C hoose SELECT to confirm...
- Page 14 Panorama ® Telepack-608 SpO Quick Reference Guide the patient tile at the Panorama Central Station and the tile is removed. The heart rate color in the patient tile has changed while the SpO module is being used. What is the reason? A patient’s heart rate is obtained (sourced) from the ECG or the SpO when using a Panorama Telepack.
