Related Manuals for Kendal Lighting AC-21454
Summary of Contents for Kendal Lighting AC-21454

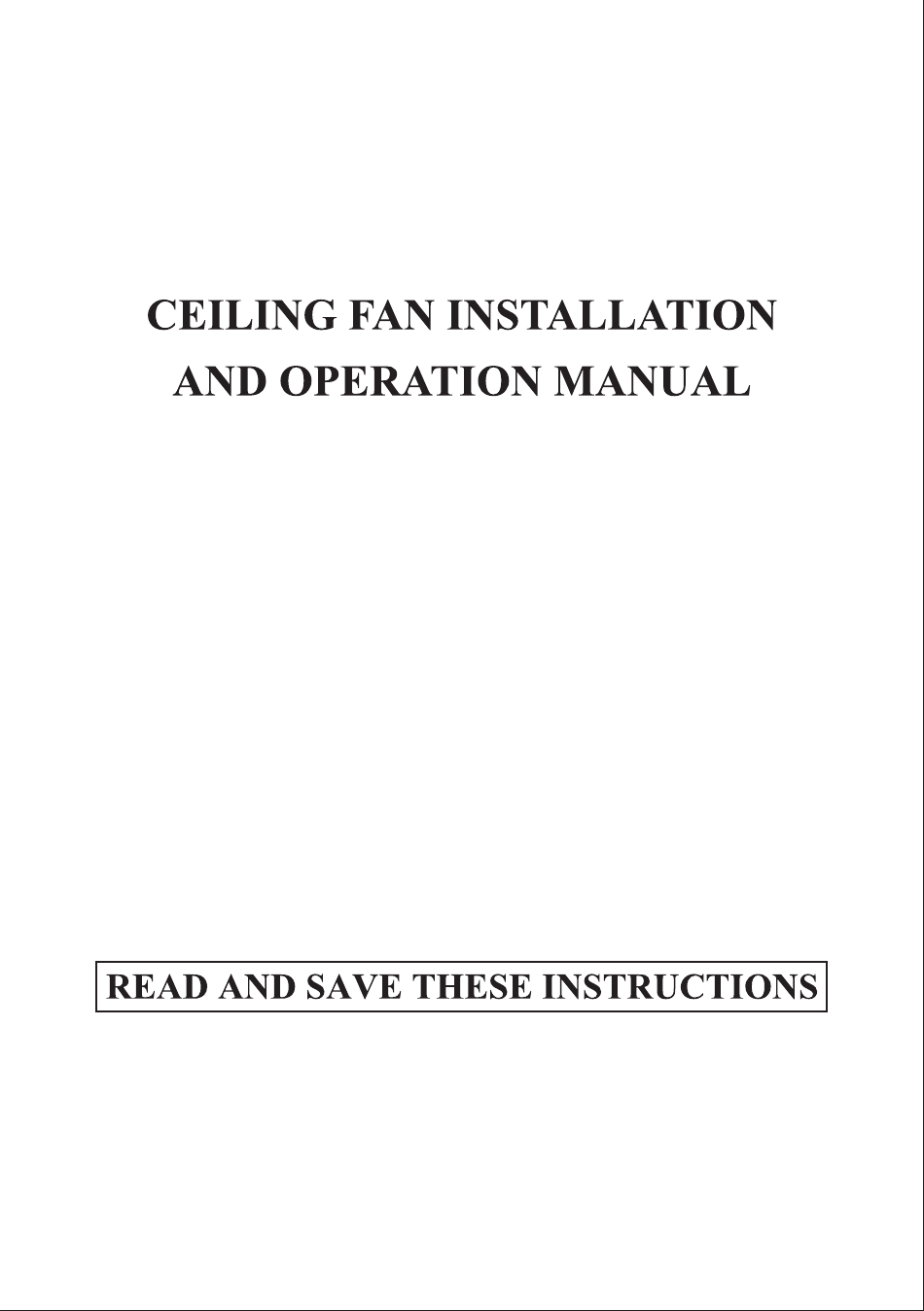

- Page 1 (MODEL NUMBER:AC-21454)
- Page 3 MOUNTING PLATE 1. Remove 3 screws on mounting plate. (see SCREW FIG.1 fig.1) OUTLEX BOX 2. Install the mounting plate onto junction box MOUNTING PLATE with the provided mounting hardware.(see WASHER fig.2) WASHER FIG.2 SCREW 3. Hang the cable from the fan body up to the MOUNTING PLATE hook on mounting plate.(see fig.3) SAFETY CABLE...
- Page 4 MOUNTING PLATE 4. Lift the fan body up and turn the motor RECEIVER into the mounting plate.(see fig.7) MOTOR 5. Tighten the 3 screws to fix the motor.using allen screws and wrench provided.(see fig.8) FIG.7 MOUNTING PLATE 6. Move motor housing up over motor + mounting plate and secure with the 3 screws.
- Page 5 1. Remove 1 of 3 screws on fan adapter and loosen the other 2 screws.(see fig.12) SCREW FIG.14 SCREW 2. Attach the light kit adapter to fan adapter by placing key slots over the 2 loosened screws, turn the light kit adapter until it get the narrow end of key slots and have the round hole align with the LIGHT KIT ADAPTER...
- Page 8 TNA15111003...
-
Page 9: Remote Control Setting And Operation
REMOTE CONTROL SETTING AND OPERATION TRANSMITTER OPERATION Remove the battery cover from the remote control transmitter and install batteries, Replace the cover. Note : Use 2 1.5V/AAA batteries (included). Note : If not using for long period of time, remove battery to prevent damage to remote transmitter, and store the remote transmitter away from excess heat or humidity. - Page 10 Remote Control Fan Speed And Light Functions. Fan speed 1 = minimum speed 2 = low speed 3 = medium low speed 4 = medium speed 5 = medium high speed 6 = high speed This button turns the fan off. Forward / Reverse button- This button controls the direction of the fan rotation .
