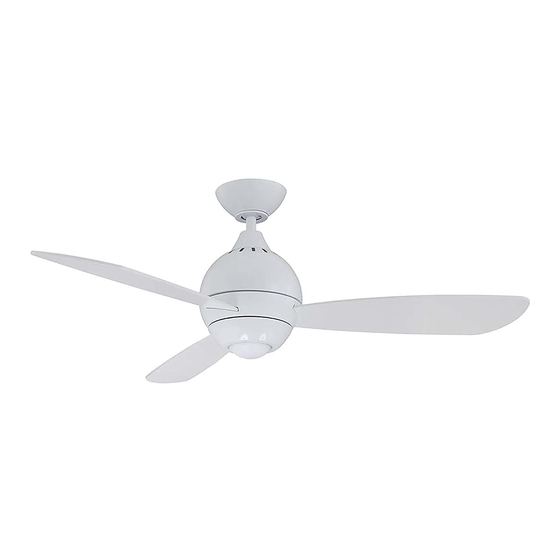

- Page 1 READ AND SAVE THESE INSTRUCTIONS INSTALLATION INSTRUCTIONS Model: AC-20644 KENDAL LIGHTING Kendal Lighting (BC) Inc. #110, 6780 Dennett Place Delta, BC V4G 1N4 Canada Tel: (604) 952-5510 Fax: (604) 952-5513 UL and cUL Listed Model: AC-542 Weight of Fan:...
-
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screw driver Flat screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; Blade set (3) Hanger bracket assembly Downrod Coupling cover Fan motor assembly... -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure 7. Do not operate reversing switch while fan electricity has been turned off at the circuit blades are in motion. Fan must be turned breaker or fuse box before beginning. off and blades stopped before reversing blade direction. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. HANGING THE FAN Ceiling hanger REMEMBER to turn off the power. Follow the bracket steps below to hang your fan properly: Ceiling canopy Step 1. Remove the decorative canopy bottom cover from the canopy by turning the cover Canopy cover counter clockwise. -
Page 6: Make The Electric Connections
6. MAKE THE ELECTRIC CONNECTIONS Code switch WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. NOTE: This remote control unit is equipped with 16 code combinations to prevent possible Figure 9 interference from or to other remote units. -
Page 7: Installation Of Safety Support
Note: Fan must be installed at a maximum distance of 20 feet from the transmitting unit for proper signal transmission between the transmitting unit and the fan's receiving unit. 7. INSTALLATION OF SAFETY SUPPORT Attach the lag bolt and flat washer to ceiling joist. -
Page 8: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES Step 1. Insert the blade through the slot in the housing. Align the holes in blade and motor and secure with the screws and fiber washers. (Fig. 14) Step 2. Repeat this procedure for remaining blades. -
Page 9: Attaching The Glass Shade
11. ATTACHING THE GLASS SHADE NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. There are 2 sets of glass available in your box, use the one preferred and make the following light kit installation. - Page 10 12. INSTALLING THE Outlet box TRANSMITTER Switch HOLDER Wall plate Select a location to install your remote control system transmitter. You can replace an existing wall switch or, install the transmitter on ANY flat surface. Option 1: Install the cremote ontrol system using an existing wall switch outlet box.
-
Page 11: Installing The Battery
13. INSTALLING THE BATTERY Remove the back cover on the transmitter and install both, 3 volt (#2032) batteries that were included with the remote control. Make sure the + sign is facing up. (Fig. 21) 14. OPERATING YOUR TRANSMITTER Figure 20 Restore power to ceiling fan and test for proper operation. -
Page 12: Care Of Your Fan
15. CARE OF YOUR FAN Here are some suggestions to help you maintain your fan. 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. -
Page 13: Troubleshooting
16. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check main and branch circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
