Mounting
Location and Cover Removal
Install the sensor on an inside wall where it can sense
the average room temperature and be away from
direct sunlight, heat sources, windows, air vents,
and air circulation obstructions (curtains, furniture,
etc.). It can be mounted on a hollow wall or (with
an HMO-6036/6036W universal backplate) to a 2 x 4
inch electrical (handy) box.
The cover is held to the black base by three round
pegs that fit in the holes of the cover. The bottom peg
is on a tab and snaps into the center bottom hole.
1. With a small Phillips screwdriver or hex wrench,
press in and hold the plastic tab button that
snaps into the center hole on the bottom of the
cover. Do not use excessive force and deform or
break the tab.
2. Carefully pull the cover from the black base.
STE-6010/6013/6015 Only
Handy Box Installation (Recommended)
1. Mount an HMO-6036 or HMO-
6036W universal backplate to the
handy box using the two screws
provided.
2. Remove the cover from the black base (see the
Location and Cover Removal section).
3. With the plastic tab button on the bottom, attach
the base to the universal backplate using the two
screws provided.
4. Connect the wiring (see the Wiring section).
5. Reinstall the cover.
Hollow Wall Installation
1. Remove the cover from the black base (see the
Location and Cover Removal section).
2. Using the base as a template, drill two holes for
mounting screws (7/64 inches or 3 mm in diam-
eter and 1.4 inches, 1-13/32 inches, or 35.6 mm
apart) and cut a center hole (size needed is depen-
dent on model) for the terminal block or jack.
3. Attach the base to the wall using two #6 self-
threading screws. (Plastic anchors are recom-
STE-6010/6011/6013/6015 Room Temperature Sensors
Installation Guide
R .187
4. Connect the wiring (see the Wiring section).
5. Reinstall the cover.
STE-6011 Only
Handy Box Installation (Recommended)
1. Mount a universal backplate HMO-6036/6036W
2. Remove the cover from the black base (see the
3. Connect the wiring (see the Wiring section).
4. Attach the base to the backplate using two screws.
5. Check that leads to the thermistor are straight
6. Reinstall the cover.
Hollow Wall Installation
1. Remove the cover from the black base (see the
2. Use the back panel as a template to drill two holes
3. Connect the wiring (see the Wiring section).
4. Attach the black base to the wall using two #6
5. Check that leads to the thermistor are straight
6. Reinstall the cover.
1

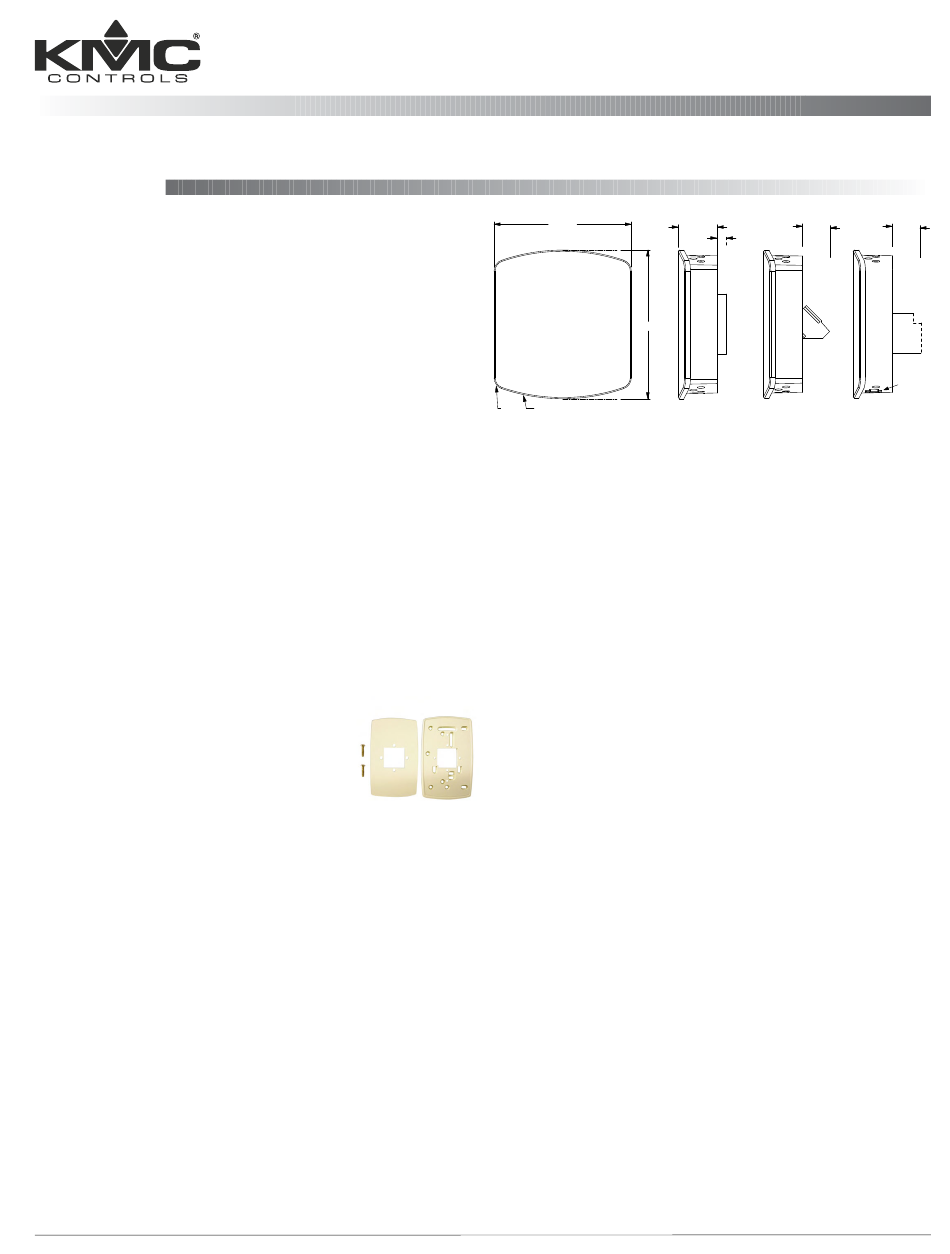

Room Temperature Sensors
2.250
.643
All dimensions
2.438
are in inches
R 3.094
STE-6013
mended, and the size of the holes will then need
adjusting.)
to the handy box using the two screws provided.
Location and Cover Removal section).
and the thermistor is completely extended.
Location and Cover Removal section).
for mounting screws (7/64 inches or 3 mm in di-
ameter and 1.4 inches, 1-13/32 inches, or 35.6 mm
apart) and to cut a center hole (7/8 inch or 20 mm)
for the terminal block or jack.
self-threading screws. (Plastic anchors are recom-
mended, and the size of the holes will then need
adjusting.)
and the thermistor is completely extended.
STE-6010/6011/6013/6015
.450
.149
Clamp
(Screw-type)
Clamp
Terminals
(Screw-type)
Terminals
STE-6011
STE-6010/6015
Installation Guide
.475
max.
Modular
RJ-45
Jack
Four-pin
EIA-485
PC Data
Port
