KMC Controls STE-6010 Installation Manual

Mounting
Location and Cover Removal
Install the sensor on an inside wall where it can sense
the average room temperature and be away from
direct sunlight, heat sources, windows, air vents,
and air circulation obstructions (curtains, furniture,
etc.). It can be mounted on a hollow wall or (with
a universal backplate HMO-6036/6036W) to a 2 x 4
inch handy box.
The cover is held to the black, back panel by three,
small, round pegs that fit in the holes of the cover.
The bottom peg is on a tab and snaps into the center
bottom hole.
1. With a small Phillips screwdriver or hex wrench,
press in and hold the tab button that snaps into
the center hole on the bottom cover.
2. Carefully pull or pry the back panel from the
front cover.
STE-6010/6013/6015 Only
Handy Box Installation (Recommended)
1. Mount a universal backplate
HMO-6036 or HMO-6036W to the
handy box using the two screws
provided.
2. Remove the cover from the back panel.
3. Attach the back panel to the backplate using the
two screws provided.
4. Attach the cable to the terminal block or jack
according to the appropriate wiring diagram on
the next page.
5. Replace the cover.
Hollow Wall Installation
1. Remove the cover from the back panel.
2. Using the back panel as a template, drill two holes for
mounting screws (7/64 inches or 3 mm in diameter
and 1.4 inches, 1-13/32 inches, or 35.6 mm apart) and
cut a center hole (size needed is dependent on model)
for the terminal block or jack.
3. Attach the back panel to the wall using two
#6 self-threading screws. (Plastic anchors are
recommended, and the size of the holes will then
need adjusting.)
STE-6010/6011/6013/6015 Room Temperature Sensors
Installation Guide
R .187
4. Attach the cable to the terminal block or jack
5. Replace the cover.
STE-6011 Only
Handy Box Installation (Recommended)
1. Mount a universal backplate HMO-6036 to the
2. Remove the cover from the back panel.
3. Attach wires according to the STE-6011 wiring
4. Attach the back panel to the backplate using two
5. Check that leads to the thermistor are straight
6. Replace the cover.
Hollow Wall Installation
1. Remove the cover from the back panel.
2. Use the back panel as a template to drill two
3. Attach wires according to the STE-6011 wiring
4. Attach the back panel to the wall using two
5. Check that leads to the thermistor are straight
6. Replace the cover.
1

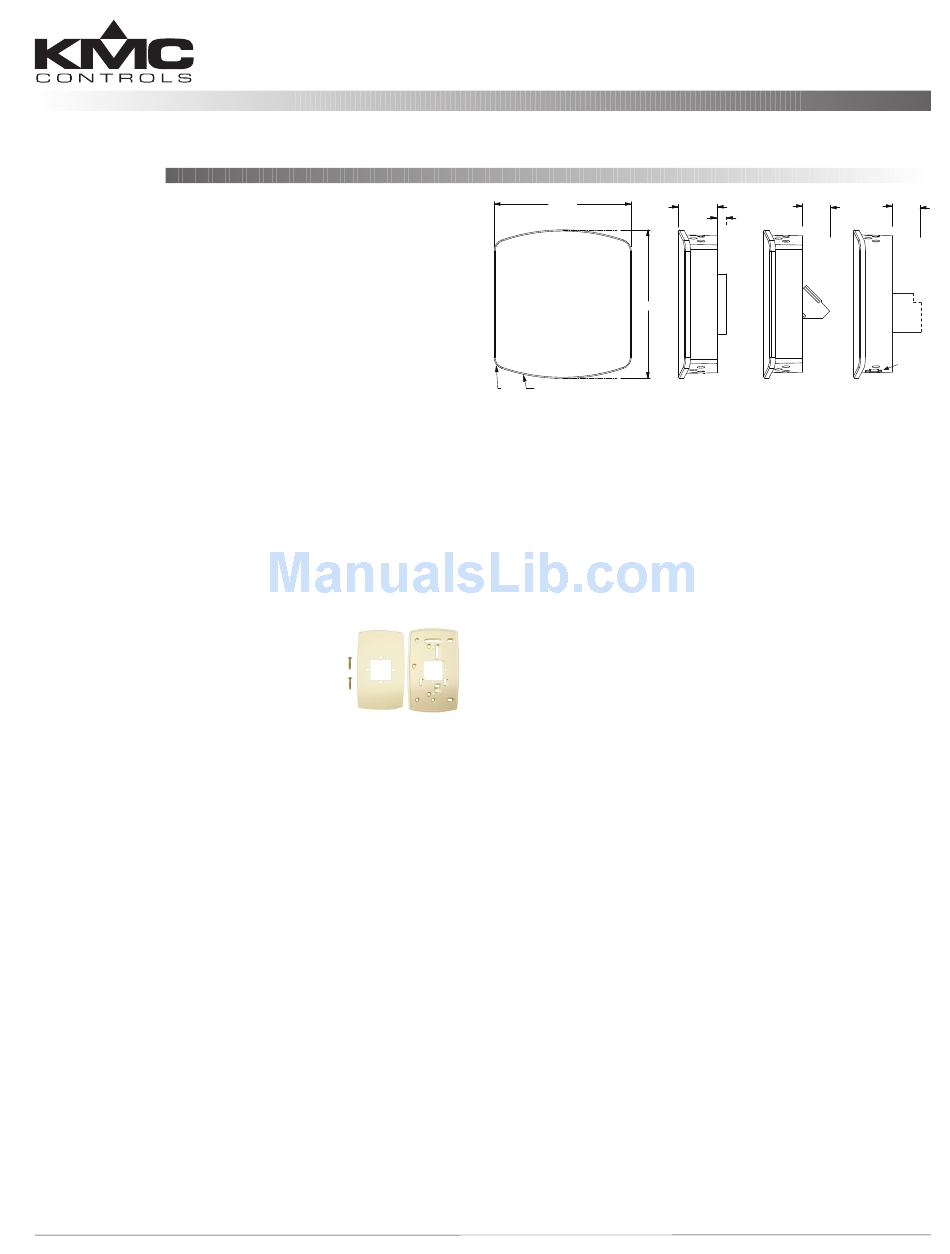

Room Temperature Sensors
2.250
.643
All dimensions
2.438
are in inches
R 3.094
STE-6013
according to the appropriate wiring diagram on
the next page.
handy box using the two screws provided.
diagram on the next page.
screws.
and the thermistor is completely extended.
holes for mounting screws (7/64 inches or 3 mm
in diameter and 1.4 inches, 1-13/32 inches, or 35.6
mm apart) and to cut a center hole (7/8 inch or 20
mm) for the terminal block or jack.
diagram on the next page.
#6 self-threading screws. (Plastic anchors are
recommended, and the size of the holes will then
need adjusting.)
and the thermistor is completely extended.
STE-6010/6011/6013/6015
.450
.149
Clamp
(Screw-type)
Clamp Terminals
(Screw-type)
Terminals
STE-6011 STE-6010/6015
Installation Guide
.475
max.
Modular
RJ-45
Jack
Four-pin
EIA-485
PC Data
Port
