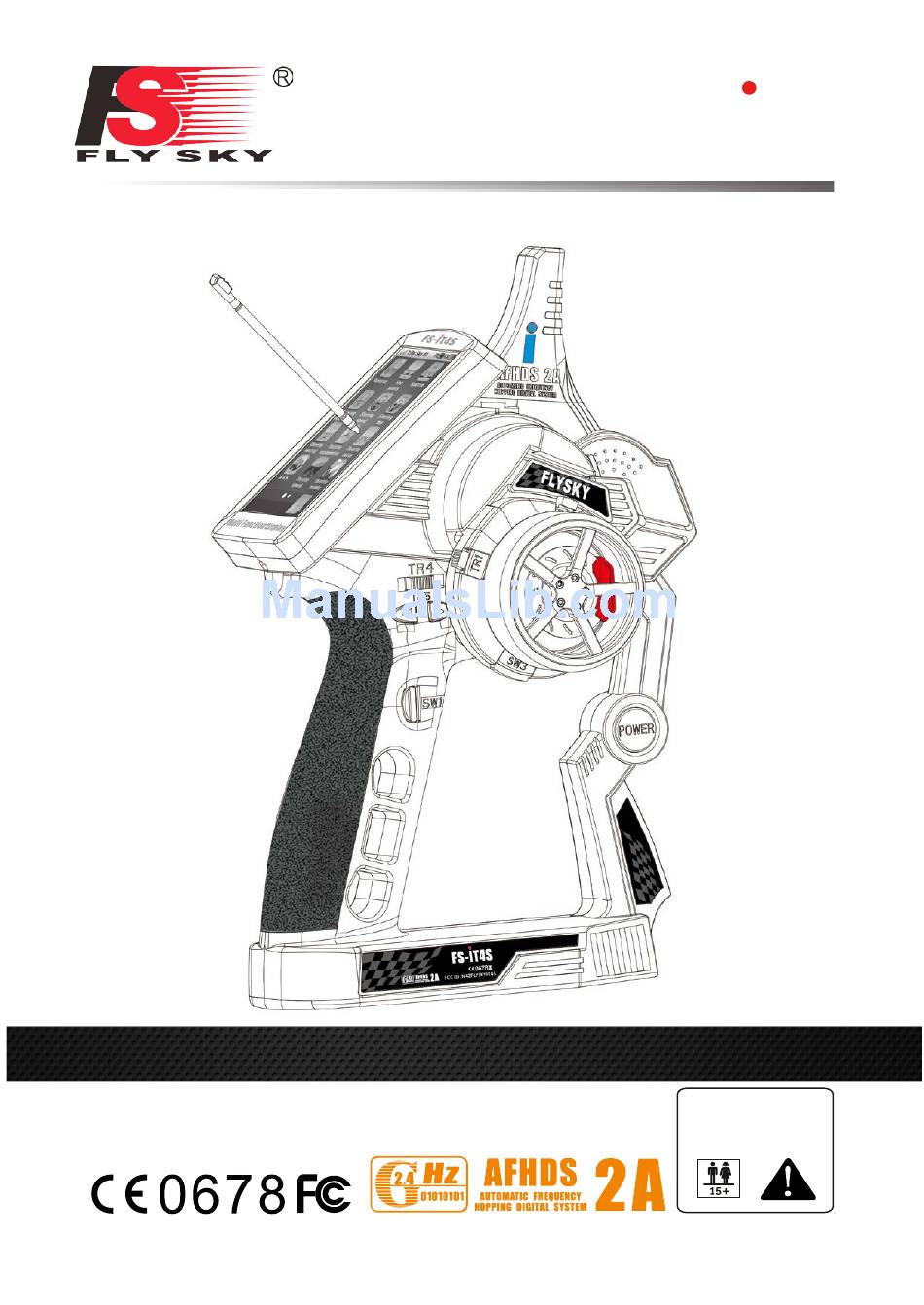

- Page 1 FS-lT4S Digital proportional radio control system INSTRUCTION MANUAL WARNING: This product is only for 15 years old or above...
- Page 2 Thank you for purchasing our product, an ideal radio system for beginners or experienced users alike. Read this manual carefully before operation in order to ensure your safety, and the safety of others or the safe operation of your system. If you encounter any problem during use, refer to this manual first.
-
Page 3: Table Of Contents
FS-lT4S Digital proportional radio control system Table of contents 1. Safety ..............................4 1.1 Safety Symbols ..............................4 1.2 Safety Guide ............................... 4 2. Introduction ............................. 6 2.1 System Features ..............................6 2.3 Transmitter Overview ............................ 7 2.3.1 Transmitter Antenna ..........................7 2.3.2 Wheel and Trigger .......................... - Page 4 7.6 Display Servos ..............................24 7.7 Race Timer ................................24 7.8 Keys Function ..............................25 7.9 Models ................................25 8.0 RX Setup ............................27 8.1 Bind with a receiver ............................27 8.2 RF std.: ADHDS 2A 2-way ..........................27 8.3 Receiver PPM Output ..........................27 8.4 RX Battery Monitor ............................28 8.5 Low Signal Alarm ............................28 8.6 FailSafe ................................28 8.7 Display Sensors ...............................28...
-
Page 5: Safety
FS-lT4S Digital proportional radio control system 1. Safety 1.1 Safety Symbols Pay close attention to the following symbols and their meanings. Failure to follow these warnings could cause damage, injury or death. Danger • Not following these instructions may lead to serious injuries or death. - Page 6 • Misuse of this product can lead to serious injuries or death. To ensure the safety of you and your equipment, read this manual and follow the instructions. • Make sure the product is properly installed in your model. Failure to do so may result in serious injury.
-
Page 7: Introduction
FS-lT4S Digital proportional radio control system 2. Introduction The FS-iT4S is an 8-channel 2.4GHz AFHDS 2A digital proportional R/C system. It is compatible with cars and boats. 2.1 System Features The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and patented by FLYSKY is specially developed for all radio control models. -
Page 8: Transmitter Overview
2.3 Transmitter Overview Antenna Stylus Wheel Power 2.3.1 Transmitter Antenna Precautions: □ For best signal quality, make sure that the antenna is at about a 90 degree angle to the model. Do not point the antenna directly at the receiver. □... -
Page 9: Status Indicator
FS-lT4S Digital proportional radio control system 2.3.3 Status Indicator The status indicator is used to indicate the power and working status of the transmitter. Off: the transmitter is powered off. □ Blue light: the transmitter is on and working. □... -
Page 10: Getting Started
3. Getting Started Before operation, install the battery and connect the system as instructed below. 3.1 Transmitter Battery Installation Danger • Only use specified battery. Danger • Do not open, disassemble, or attempt to repair the battery. Danger • Do not crush/puncture the battery, or short the external contacts. Danger •... - Page 11 FS-lT4S Digital proportional radio control system Servos Receiver...
-
Page 12: Operation Instructions
4. Operation Instructions After setting up, follow the instructions below to operate the system. 4.1 Power On Follow the steps below to turn on the system: Check the system and make sure that: ▫ The battery is fully charged and installed properly. ▫... -
Page 13: Adjusting Wheel Position
FS-lT4S Digital proportional radio control system 4.4 Adjusting Wheel Position The position of the wheel can be adjusted to be more comfortable to use. Hold the transmitters handle firmly. Grab the plastic underneath the wheel. (Do not pull the wheel itself as this could lead to long term wear and damage). -
Page 14: Home Screen
5. Home Screen The home screen diplays useful information about you're model, including sensors, current active condition and timers. Model Name Transmitter Battery Receiver Signal Receiver Battery Sensor Feedback Break Mixing Throttle Curve Mixes A.B.S. Race Timer Engine Cut Sound Throttle Idle Steering Position Throttle Position... -
Page 15: Reverse Function
FS-lT4S Digital proportional radio control system 6 Reverse Function The Reverse function is used to correct a servo or motor's direction in relation to the systems controls. For example if a servo is mounted upside down in order to fit inside a model (in this case steering), when the systems steering wheel is turned the servo will move in the oppisite direction. -
Page 16: Steering Exponential
The method for changing settings in this function is the wheel located above the menu bar at the bottom. To restore default settings of a single channel, select the reset icon within its subtrim menu. □ To restore the entire function to default, select the reset icon in the channel selection menu. □... -
Page 17: Steering Speed
FS-lT4S Digital proportional radio control system To set the steering exponential/rate: Select the desired parameter, rate or exp. Use the wheel at the bottom of the screen to change the value. To restore the entire function to default, select the reset icon located at the bottom center of the screen. -
Page 18: Throttle Neutral
There are 4 types of steering control: Font side: Front wheel steering. (Default) □ Rear side: Rear wheel steering. □ Same phase: Front and rear steering at the same time, □ when turning a direction all the wheels will turn the same direction. -
Page 19: Throttle Exponential
FS-lT4S Digital proportional radio control system 6.6 Throttle Exponential This function has two variables: □ Rate: Reducing the rate shrinks the outer limits of the curve, as the rate drops below 100% the graph will update in real-time. The maximum is 100%. -
Page 20: A.b.s
6.8 A.B.S. A.B.S. stands for auto breaking system, and is designed to stop the wheels from locking (which can lead to loss of control or a skid). A.B.S. manages this by regulating the amount of pressure the breaks use, this is done by pumping the breaks on and off rather than a constant force. - Page 21 FS-lT4S Digital proportional radio control system Trigger point Changes the point in which the A.B.S. will kick in. The trigger point is represented as a white line on the graph. To change the position of the trigger point use the wheel at the bottom of the screen.
-
Page 22: Throttle Speed
6.9 Throttle Speed This function changes how quickly the throttle will react, both when pressed and released. This is useful to emulate different models such as big trucks, which in real life take longer to get up to speed and slow down. -
Page 23: Throttle Middle
FS-lT4S Digital proportional radio control system 7 Throttle Middle This function changes the midpoint of the throttle, this could be used in a middle in which the servo and the throttle position do not line up with no throttle, if this is the case the model may move as soon as it’s turned on. -
Page 24: Boat Mode
7.3 Boat Mode This function is used only when you are using a model boat. When using this function the break functionality is disabled and the throttle channel is set to its lowest position. To toggle this function select the box beside "Normal mode", when the function is active the text beside the box will change to "Boat mode". -
Page 25: Display Servos
FS-lT4S Digital proportional radio control system 7.6 Display Servos This function displays the models channel output and can be used to test output and servo range, the test button at the middle bottom of the screen will cause the channels to move slowly though their entire range. -
Page 26: Keys Function
7.8 Keys Function This function assigns the systems physical buttons to different functions. To assign a function to a key select the key from the diagram, then select a function from the list. WARNING If the model engine is powered on while the test function is activated will rev up. - Page 27 FS-lT4S Digital proportional radio control system Copy Model Select copy model from the menu (This will usually be the current model). Select a copy source (the model you wish to make a copy of). Select a target model (the model you wish to overwrite).
-
Page 28: Rx Setup
8.0 RX Setup 8.1 Bind with a receiver This function enables you to bind the RX and TX so that no other system may interfere with your models operation. To bind the transmitter with a receiver: Connect the bind cable to the RX, then connect the power. On the TX select “Bind with a receiver”. -
Page 29: Rx Battery Monitor
FS-lT4S Digital proportional radio control system 8.4 RX Battery Monitor Monitors the receiver battery voltage. Use the supplied battery’s user manual to set the lower and higher voltages, so that the system can monitor battery level effectively. Setting the voltage alarm sets a custom low battery level alarm. -
Page 30: Choose Sensors
8.8 Choose Sensors The main screen can display the value of up to 4 sensors, this function selects which sensors are displayed. First select a slot, any sensors that are connected will automatically populate this list, select the desired sensor and exit the function. There are 2 types of sensors, basic and advanced. -
Page 31: I-Bus Setup
FS-lT4S Digital proportional radio control system 9 i-Bus Setup After connecting the i-Bus module to your receiver and servos, select steering, throttle, channel 3 or 4. The system will display a prompt saying "Press the corresponding servo interface button or touch cancel.". -
Page 32: System
10.0 System 10.1 Blacklight Timeout: (Time) The blacklight timeout function controls how long the system will wait before turning off screens backlight. Note Backlight time can affect the battery life of your system, the longer the time, the shorter the battery will last. -
Page 33: Units
FS-lT4S Digital proportional radio control system 10.7 Units Use this function to change between Metric and Imperial mesurement systems. 10.8 USB Function The system can be used with various computer based simulators via USB. To enable the simulator function select "FS-iT4S emulator" from the menu. To disable this function select "none". (Note: when the emulator... -
Page 34: Product Specification
11 Product Specification 11.1 Transmitter Specification Channels Model type Car/Boat Sensitivity 1024 Low voltage alarm When lower than 3.7 V Steering Range 90° L: 45° R: 45° Throttle Range 35° F: 22.5° B: 12.5° Weight 398 g Dimension (Length x Width x Height) 157 x 116 x 258 mm Power input 3.7 V... -
Page 35: Appendix 1 Fcc Statement
FS-lT4S Digital proportional radio control system Appendix 1 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of theFCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 36 The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
