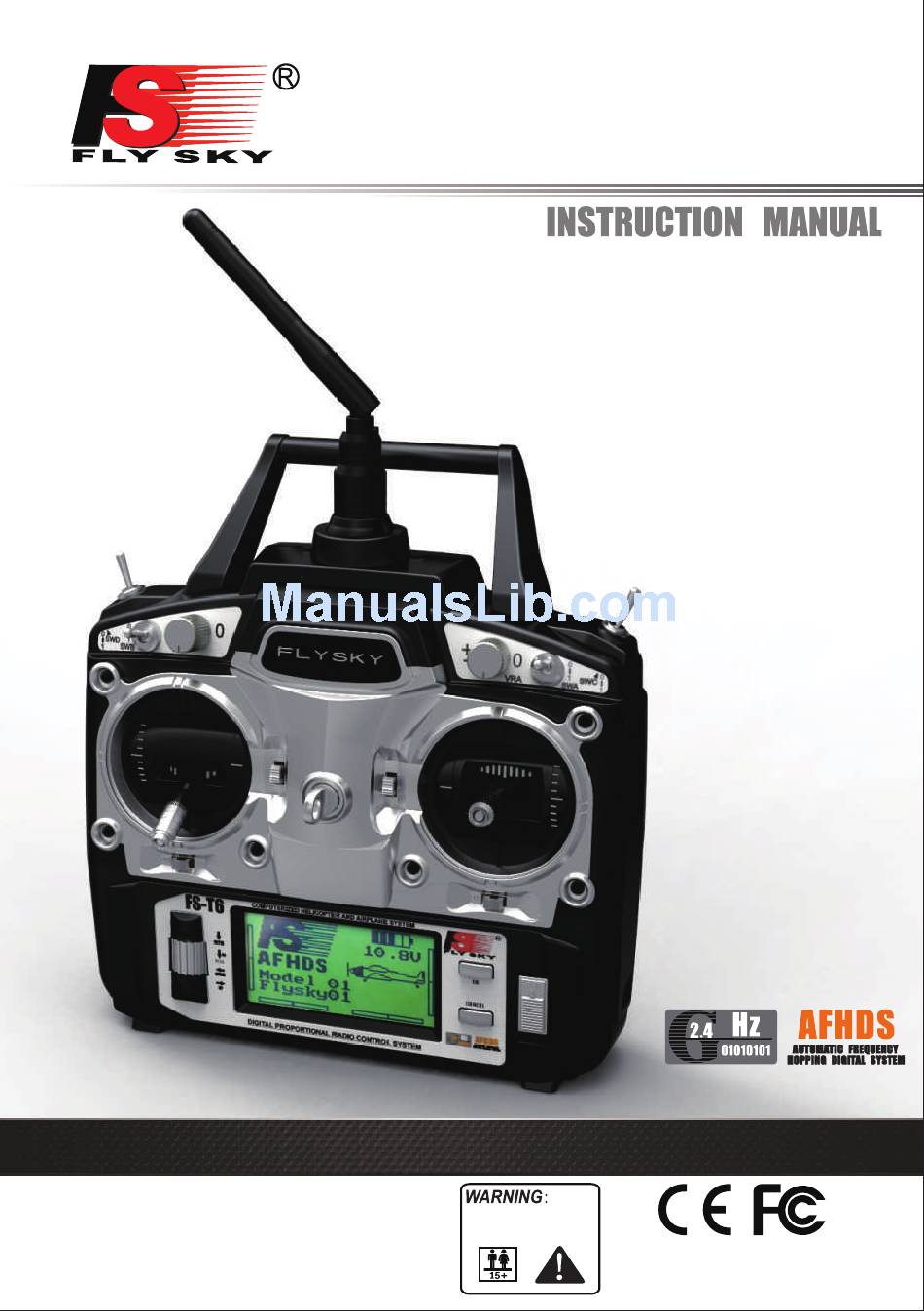

- Page 1 FS-T6 Digital propotional radio control system 用户手册 http://www.flysky-cn.com Copyright ©2008-2012 Flysky co., ltd This product is suitable for 15 years old and above 本产品不适合15岁以下儿童使用...
-
Page 2: Table Of Contents
Table of contents 1. Introduction ..............................2 2. Services ................................. 2 3. Special symbols ............................. 3 4. Safety guide ..............................3 5. 2.4GHz System.............................. 4 6. Battery charging notes ........................... 5 7. Transmitter specifications..........................6 8.Receiver specifications..........................6 9.Receiver and servo connections........................7 9.01. -
Page 3: Introduction
Introduction 简介 Thank you for choosing the Fly Sky FS-T6 6 channels 2.4GHz AFHDS computerized digital proportional R/C airplane and helicopter system. If it’s your first use of a computerized radio system, this user manual will bring you easily to a new world of fun and sophistication. In all cases, please read carefully and completely this user manual as it contains all information to keep you safe. -
Page 4: Special Symbols
Special symbols 特殊标志 Please pay attention to the following symbols when they appear in the manual and read carefully. 当以下标志出现在说明书的时候请注意并且仔细阅读。 Not following these instructions may expose the user to serious injuries or death. 如果使用者不按照说明方法操作，有可能导致使用者严重受伤，甚至致命的危险。 Not following these instructions may expose the user to serious injuries. -
Page 5: 4Ghz System
This is the result of years of research and testing and makes Fly Sky one of the world leader in the market. The 2.4GHz radio band has a completely different behavior than previously used lower frequency bands. -
Page 6: Battery Charging Notes
System Characteristic 系统特征 This radio system works in the frequency range of 2.4000 to 2.4835GHz. This band has been divided into 160 independent channels. Each radio system uses 16 different channels and 160 different types of hopping algorithm. By using various switch-on times, hopping scheme and channel frequencies, the system can guarantee a jamming free radio transmission. -
Page 7: Transmitter Specifications
FS-T6 Digital propotional radio control system Transmitter specifications 发射机参数 Transmitter specifications: Number of channels: 6 Model type: airplane and helicopter FS-T6 Channel resolution: 1024 steps Power supply: 12V (1.5V AA x 8) Low voltage warning: Blinking symbol below 9.5V Buzzer alarm below 8.5V... -
Page 8: Receiver And Servo Connections
9.Receiver and servo connections 接收机与伺服器连接 9. 01. Receiver and servo connections (aircraft) 飞机模型的接收机与伺服器连接 接电池 (CH6) T o Battery (CH5) (CH1) 开关 充电接口 (CH4) Switch Charging Harness (CH6) (CH1) Jack (CH6) (CH2) (CH2) (CH3) (CH4) (CH4) Flaperon Mode (Dual Aileron Independent Aileron & Flap (CH2) Servo, CH1 &... -
Page 9: 4Ghz Operation Notes
FS-T6 Digital propotional radio control system 2.4GHz Operation notes 2.4G操作注意事项 10.01. Binding 对码 The supplied transmitter and receiver are already bound at production time so you don’t need to do it. If you are using another transmitter or receiver, you have to first bind them before use as described below: 1. -
Page 10: Power On
10.03 Power on 开机 1. Connnect all parts 1. 连接好所有部件 2. Switch on the transmitter 2. 打开发射机 3. Connect the receiver battery 3. 接通接收机电源 4. The receiver red LED indicator is solid 4. 接收机红色指示灯常亮说明信号连接正常. indicating the presence of a correct signal 5. -
Page 11: Definition Of Key Functions
FS-T6 Digital propotional radio control system Definition of key functions 按键定义 天线 Antenna 提手 Handle Knob B (VrB) 旋钮B Switch C (SwC) 开关C Switch D (SwD) 开关D Knob A (VrA) 旋钮A 开关B Switch B (SwB) Switch A (SwA) 开关A 挂钩... -
Page 12: Warning
Mode type Model number Model name Right trims Left trims Besides the Fly Sky logo and modulation type (AFHDS), 除了富斯商标和AFHDS跳频方式外，开机画面还显 the main screen displays the following information: 示以下内容： 1. Selected model number (1 to 20): 20 different models 1. 选择模型编号( 1到20 ): 发射机可以存储 2 0组不同模... -
Page 13: Main Menu
FS-T6 Digital propotional radio control system 主菜单 Main menu 主菜单分为两部分，系统设置和功能设置。用户可以 The main menu is separated into two main sections, system and functions. The system menu allows you to 进入系统菜单设定发射机和选择 2 0组模 型 。功能菜单中可 set up the transmitter and to manage the 20 models. The function menu is used to set up each model separately. -
Page 14: Model Name
15.02. Model name 模型名称 Use this function to change the name associated with 此功能可修改当前选择的模型名称。按“Enter ”键选 the currently selected model. Press “Enter” to select 定需要修改的字母，滚动旋钮选择替换该处的新字母。 the letter of the name to change then use the rotary button to change the selected letter. 15.03. -
Page 15: Model Reset
FS-T6 Digital propotional radio control system 模型重设 15.05. Model reset 此功能将当前所选择的模型数据恢复到默认值，其他的 This function will reset the currently selected mode to its default. The other models will not be affected. This 模型的数据不会被修改。设置调乱时可使用该功能进行初始 can be useful when a setup is going nowhere and 化设置。当前所选择模型的数据将被永久删除，并且无法恢... -
Page 16: Sticks Mode
15.08. Sticks mode 操纵杆模式 此功能有四种不同操纵杆模式供选择。第一组操作杆 With this function, you can choose among 4 different sticks modes. The 4 first channels are mapped to the 模式的通道已经在图上标明出来，用户可根据飞行习惯自 selected sticks according to your flying habits (left or right handed for example). 行选择(例如左手油门或者右手油门)。 15.09. LCD brightness 屏幕亮度... -
Page 17: 5.11. Firmware Update
FS-T6 Digital propotional radio control system 15.11. Firmware update 固件升级 Prior activating this function, connect the USB cable 先启动此功能，然后用USB线将发射机背后的接口与电 between the back interface of the transmitter and a PC 脑连接。 所有功能停止之后， 会有一个询问提示， 确认是 computer. A confirmation will be asked since all functions will be halted. -
Page 18: Reverse
16.01. Reverse 倒置功能 用户可通过此功能倒置通道，模型上所有舵机的方向可 This function allows you to reverse a channel. Set all channels according to your model mechanics. 以通过此设置改变。 16.02. End points 终点设置 This function sets the lower and upper extents of all 此功能可以调整所有通道范围的大小。按“Enter ”键 channels. Select t h e channel number with the “Enter” 选择通道，根据需要和用户的模型结构移动对应的拨动开关... -
Page 19: Auxiliary Channels
FS-T6 Digital propotional radio control system 16.04. Auxiliary channels 辅助通道 This function let you choose the source of the channels 此功能可选择第五、第六通道的控制来源。可以是一 5 and 6. It can b e a variator or a switch. If a switch 个旋钮或者是一个拨动开关。如果选择拨动开关，开关关 is selected, an off switch will t r a n s m it the lower extent 闭时传播信号为通道的较低值，... -
Page 20: Throttle Curve
16.07. Throttle curve 油门曲线 此功能可设置油门(第三通道)曲线的普通模式和悬停模 This function sets up the transfer curve of the throttle (channel 3) in both normal and idle up modes. Use the 式。使用悬停开关改变模式类型。可以调整曲线上的5个主 idle mode switch to change mode. 5 key points can be adjusted. For example, a beginner may set them to 0, 5, 要数值。例如：初学者可分别设置为0%、... -
Page 21: Mix
FS-T6 Digital propotional radio control system 16.10. 混控功能 用户可根据自己的实际需要编写三组混 控 功 能 数 据。 This function allows you to program up to 3 custom Master对应通道数值会改变Slave对应通道数值。混控设置 channel mixes. The master channel will alter the slave 的正负值设定需要在中点上下做调整。Slave 通道的数值会 channel. The positive and negative mix set the amount 根据现有的数值改变。... -
Page 22: Gyroscope (Helicopter Only)
16.13. Gyroscope (helicopter only) 陀螺仪设置(仅直升机适用) This function allows you to activate the gyroscope on 用户可在此功能中打开第五通道的陀螺仪，设置普通 the channel 5 and to set up its value for both normal and 模式和悬停模式的数值。 idle up modes. 16.14. Switches assign 开关分配 此功能可将波动开关分别分配给飞行模式，悬停模式 This function lets you assign a switch to control the fly mode, idle mode and throttle hold functions. -
Page 23: Packaging Content
FS-T6 Digital propotional radio control system Packaging content 包装内容 6 channel 2.4G transmitter (FS-T6) 6 通2.4G发射机 6 channel 2.4G receiver (FS-R6B) 6 通2.4G接收机 User manual 说明书 Simulator cable 模拟线 可选的 可选的 伺服器 充电器 可选的 Trainer cable 教练线 可选的 FCC Statement... - Page 24 Digital propotional radio control system http://www.flysky-cn.com Copyright ©2008-2012 Flysky co., ltd...
