Fly Sky FS-i10 Instruction Manual

Digital proportional radio control system
Hide thumbs Also See for FS-i10:
Table of Contents

Advertisement

Quick Links

http://www.flysky-cn.com
Copyright©2013-2017
Flysky RC model technology Co., Ltd

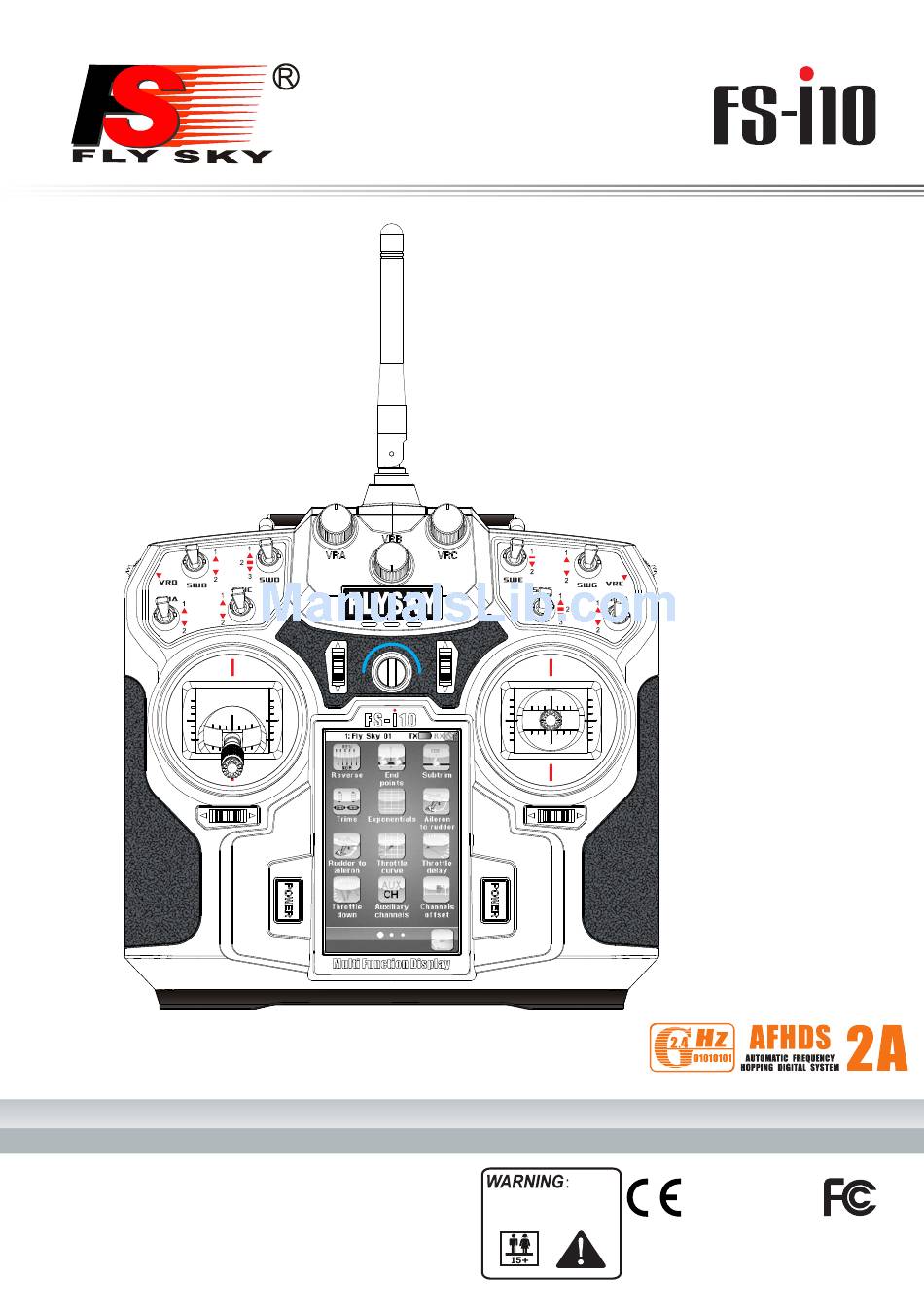

Digital Proportional radio control system
This product is suitable for
15 years old and above
INSTRUCTION MANUAL
0678

Advertisement

Table of Contents
loading

Related Manuals for Fly Sky FS-i10

Summary of Contents for Fly Sky FS-i10

  • Page 1 Digital Proportional radio control system INSTRUCTION MANUAL http://www.flysky-cn.com Copyright©2013-2017 0678 This product is suitable for Flysky RC model technology Co., Ltd 15 years old and above...
  • Page 2 Digital proportional radio control system Catalog 1， Introduction......................2， Services......................3， Special symbols....................4， Safety guide....................5， 2.4GHz System Specifications................6， System Characteristics..................7， Battery Charging Instructions................8， System Overview....................9， Transmitter specifications................... 10，Receiver specifications..................10.01，FS-APD01 RPM telemetry (magnetic) module..........10.02，FS-APD02 RPM telemetry (optical) module..........
  • Page 3 21.07，Rudder to Aileron .................. 21.08，Throttle Curve ..................21.09，Throttle Delay ..................21.10，Throttle Down ..................21.11，Auxillary Channels ................21.12，Channels offset ..................21.13，Function Delay ..................21.14，Channels Delay ..................21.15，Linear mixes ..................21.16，Curve Mixes ..................21.17，Conditions..................... 21.18，Conditions Delay..................Logic switches 21.19， ..................21.20，Airplane structure .................. 21.21，Timers....................

  • Page 4: Services

    Digital proportional radio control system Introduction Thank you for choosing the Fly Sky FS-i10 ten channels 2.4 GHz AFHDS2A intelligent system, which is compatible with helicopter, fixed wing, glider and powered glide systems. System parameters can be set up based on the model owned by the user. If this is your first time to use an intelligent system, this user manual will provide you with the instructions you need to obtain full enjoyment from your new system.

  • Page 5: Special Symbols 4

    Special symbols Please pay attention to the following symbols when they appear in the manual and read carefully. Not following these instructions may expose the user to serious injuries or death. Not following these instructions may expose the user to serious injuries. Not following these instructions may expose the user to minor injuries and even to serious injuries.
  • Page 6 Digital proportional radio control system Be sure to set the Fail Safe function. Do not operate outdoors on rainy days, run through puddles of water or use when visibility is limited. Should any type of moisture (water or snow) enter any component of the system, erratic operation and loss of control may occur.
  • Page 7 Fail safe function: Before running (cruising), check the fail safe function: Check Method; Before starting the engine, check the fail safe function as follows: (1) Turn on the transmitter and receiver power switches. (2) Wait at least 30 seconds, then turn off the transmitter. (The transmitter automatically transfers the fail safe data to the receiver every 5 seconds.) (3) Check if the fail safe function moves the servos to the preset position when reception fails.
  • Page 8 Digital proportional radio control system 2.4GHz System Specifications Misuse of this radio system can lead to serious injuries or death. Please read completely this manual and only operate your radio system according to it. The 2.4 GHz radio band has a completely different behavior than previously used lower frequency bands.
  • Page 9 System characteristics This radio system works in the frequency range of 2.4055 to 2.475GHz. This band has been divided into 1420independent channels. Each radio system uses 16 different channels and 160 different types of hopping algorithm. By using various switch-on times, hopping scheme and channel frequencies, the system can guarantee a jamming free radio transmission.

  • Page 10: System Overview

    Digital proportional radio control system System Overview The transmitter i10： · Adopts the latest two-way communication systems to ensure that all of the FS-brand receivers are compatible with this transmitter · Home page menu can monitor i10 voltage, speed, temperature, voltage parameters, function conditions (on/off), model structure and timers in real time.

  • Page 11: Receiver Specifications

    Transmitter specifications Transmitter specifications: MODEL: Channels: 10 Model type: helicopter/ airplane/ glider RF range: 2.4055-2.475GHz Bandwidth: 500KHz Band: 140 RF power: less than 20 dBm 2.4G system: AFHDS2 Code type: GFSK Sensitivity: 1024 Low voltage warning: yes (less than 3.75V) DSC port: yes(USB, HID) SD port: yes ANT length: 26mmx2...
  • Page 12 Digital proportional radio control system 10.01. RPM Telemetry (magnetic) module Specifications: Model type: helicopter/ airplane/ glider MODEL: FS-APD01 Monitor range of speed: 0-16000RPM Weight: 3.9g Power: 4.0-6.5V/DC Size: 24.4*14*8mm Color: Black 10.02. RPM Telemetry (optical) module Specifications: Model type: helicopter/ airplane/ glider MODEL: FS-APD02 Monitor range of speed: 0-16000RPM Weight: 3.9g...
  • Page 13 10.06. RPM Telemetry (magnetic) module Specifications: Model type: helicopter/ airplane/ glider MODEL: FS-CPD01 Monitor range of speed: 0-60000RPM Weight: 6g Power: 4.0-6.5V/DC Size: 31*15*8.58mm Color: Black 10.07. RPM Telemetry (optical) module Specifications: Model type: helicopter/ airplane/ glider MODEL: FS-CPD02 Monitor range of speed: 0-60000RPM Weight: 6g Power: 4.0-6.5V/DC Size: 31*15*8.5mm...

  • Page 14: Module Transformation

    Digital proportional radio control system 10.11. Module transformation When you want to connect A series module with C series module, you need to use a A-C patch cord. When you want to connect C series module with A series module, you need to use a C-A patch cord.

  • Page 15: Airplane Model Installation

    11.01 Airplane model installation CH10 Aux.3 Battery Switch Aux.2 Spoiler Flap Aileron Aux.1 Rudder servo Receiver Throttle servo evator servo Connection method for the receiver and Alieron servo the fix wing, for example: Structure: Two ailerons+flap+spoiler Ch1：Aileron Ch2：Elevator Ch3：Throttle Ch4：Rudder Ch5：AUX1 Ch6：Aileron Ch7：Flap...
  • Page 16 Digital proportional radio control system Receiver operation instruction 12.01 Port Setup CH1-CH10: represent relevant channel of transmitter. Bind,VCC: represent the channel used for matching and input power respectively. OUT: Represent i-BUS port of outputting PPMS data and be used for connecting the serial bus receiver to expand channels. IN: Represent input ports of all kinds of sensor data, and data acquisition modules can be connected in serial optionally.

  • Page 17: Rpm Telemetry Module Setup

    12.03 i-bus Receiver Connection instruction Setup FS-AEV01 Function Details ： The system is able to support many channels. This allows the user of the system to change to a different output channel should signal strength be insufficient i-BUS receiver, can connect 4 modules with 16 channels in serial at most. Button K1 and K4 correspond to C1 and C4 respectively.
  • Page 18 Digital proportional radio control system 12.05 RPM Telemetry (optical) module setup FS-APD02 Function Details ： This function allows the user to monitor turning speed via the transmitter. This is a very useful function when determination of turning speed is required Operation instruction：...

  • Page 19: Fs-Cev04 I-Bus Receiver Connection Instruction Setup

    12.08 i-bus Receiver Connection instruction Setup FS-CEV04 Function Details ： The system is able to support many channels. This allows the user of the system to change to a different output channel should signal strength be insufficient i-BUS receiver, can connect 4 modules with 16 channels in serial at most. Button K1 and K4 correspond to C1 and C4 respectively.
  • Page 20 Digital proportional radio control system 12.10 RPM Telemetry (optical) module setup FS-CPD02 Function Details ： This function allows the user to monitor turning speed via the transmitter. This is a very useful function when determination of turning speed is required Operation instruction：...

  • Page 21: Control Parts Descriptions

    Control Parts Descriptions Thro trim Elevator trim Rudder Aileron Thro/Elevator Elevator/ Thro Aileron trim Rudder Trim Power button Power button Antenna Trainer port Handle USB port Hook Grip Battery Cover Battery Box SD Card slot http://www.flysky-cn.com...
  • Page 22 Digital proportional radio control system Stick mode adjustment Stick Mode Adjustment The mode can be changed based on user preferences The instructions for changing default mode 2 are detailed below: 1. Touch system option to select the stick mode as shown in picture 14.1. 2.

  • Page 23: Power Off

    Power On 1. Connnect all parts, 2. Press the two power buttons to power on the unit. Switch on the transmitter, 3. Connect the receiver battery, 4. The receiver red LED indicator is solid indicating the presence of a correct signal, 5.

  • Page 24: Main Menu

    Digital proportional radio control system Logo/Information Screen The FlySky logo will be shown on the screen when first switching on the transmitter. After two seconds the main menu will be displayed: (Pic 17.1) Model name Transmitter battery state Receiver signal Receiver battery state Receiver sensor state Flap function enabled...

  • Page 25: Main Menu

    Main menu (Pic 18.1) (Pic 18.2) (Pic 18.3) (Pic 18.4) The main menu can be accessed by touching the settings icon at the bottom of the main screen. The main menu is organized in horizontal pages. Each page contains up to 12 icons representing 12 different functions. The main menu has 26 icons by default, but may have as few as 21 or as many as 33, depending on the model of the aircraft ·The white balls in the bottom tray indicate which menu page is...
  • Page 26 Digital proportional radio control system General Functions Description 20.01 Introduction All functions use a set of standard user interface objects. The bottom tray can contain the following buttons: The back buttons returns to the previous screen. The default button sets back the current page parameters to their default values. Some functions require usage of 1-4 as stated in 20.02 below to enable proper control.
  • Page 27 20.04 Online Help Function Details A title bar displays the name of the current function or menu. A white question mark on the right of a title bar indicates that contextual help is available. Touch the question mark to see the help details. To scroll down a help page, touch the bottom of the page and slide up.
  • Page 28 To select one of the menu items, simply touch it. The blue ball indicates the currently selected value. To select another value, simply touch it. For example： picture 20.6 has selected the Fly Sky 01 option (Pic 20.10) 20.07 Multi-function dialog settings Most functions are set using a dialog box.

  • Page 29: Subtrim

    General function menu 21.01. Reverse Function Details This function enables the user to modify the direction of operation of each ot the ten servos. For each channel the user can toggle a reverse state based on demand The reverse function individually reverses the direction of operation of the servos on the 10 channels. This menu contains 10 check boxes, one for each channel.

  • Page 30: Scaling Exponentials

    Digital proportional radio control system 21.04 Trims Function Details: This function is to amend channels' output and value of channels' output. So far there are a lot of players use it to amend center gravity of model and Revomix caused by aerodynamic, etc. So it makes model more stable in the air.

  • Page 31: Aileron To Rudder

    21.06. Aileron to rudder Function Details : The aileron to rudder automatically creates a coordinated turn for the aircraft with aileron and rudder. It is the pre-programmed mix which controls the rudders with the aileron operation and can modify the master channels rate, which is 10% by default.

  • Page 32: Throttle Curve

    Digital proportional radio control system 21.08. Throttle Curve Function Details: This function enable the user to adjusts the operation curve of the aircraft throttle and make it coordinate the stick movement and throttle output to compensate the non-linear problems of the throttle. The 11 points (L, 2~10, H) of throttle curve can be adjusted from 0% to 100%.

  • Page 33: Throttle Down

    21.10. Throttle Down Function Details: This function contains two options: option one is idle setup and option two is throttle hold Two options would be set when you adjust models. The idle is useful for the models with engines and make models keep low rpm without shutting down.
  • Page 34 Digital proportional radio control system 21.12. Channels offset Funtion Details : This function is to revise model when there are some deviations in structures. Set channel offset rate from -50% to 50% based on the channel neutral position. The default is 0%. This function can be set in five conditions. Select the desired point to set and move the wheel to modify the corresponding value after activating this function.
  • Page 35 21.15. Linear mixes Function Details: This function could be helpful when you are flying some special movements and need mix control function Linear Mixes can set 4 groups of mix controls among any two sticks, basic functions and output channels. This function can be set in five conditions. The slave channel will be affected by corresponding rate of master channel, which will be changed in a linear fashion after linear mix function is applied.
  • Page 36 Digital proportional radio control system 21.17. Conditions Function Details: This function enables the user to select five different conditions for the model. This function can set the flight condition and there are 5 conditions at most. The default name is Normal, Take off, High speed, 3D fight, Landing, which can be amended.
  • Page 37 21.19. Logic switches Function Details: The logic switch is a virtual switch which consists of two switches plus a mathematical logicl relationship. The logic switch is used to control turning on or turning off of some functions The logic switch is a virtual switch which consists of two switches plus a mathematical logicl relationship.

  • Page 38: Timers

    Digital proportional radio control system 21.21. Timers Function Details: This function is used to control time and reduce the risk of aircraft crashing There are three choices for timing. Select Timers to set the timers function. Model/Engine: Model timer is the total time of turning on the model. Engine timer counts the time when throttle value exceeds the set value.
  • Page 39 21.23. Display servos Function Details: This function is to display model channel output and automatically test all output channels. This function displays in real time the position of the 10 servos. The test button lets the 4 servos move slowly between their respective end points. This allows testing of the consistency of the mechanics of the model.
  • Page 40 Digital proportional radio control system Copy model: The second menu selects the target Copies a model configuration to model configuration to copy to. another. The target configuration is lost and replaced by the source configuration. The first menu selects the source model configuration to copy from.

  • Page 41: Rx Setup

    Setting model type: All the model settings must be reset to default state of airplane or glider, then enter 'structure setting'. The default structure of airplane or glider is 4 channels (throttle, aileron, elevator and rudder), the structure can be changed by touching the check box.
  • Page 42 Digital proportional radio control system Receiver update Function Details : Receiver update: there will be a prompt in TX if new firmware of RX can be updated. Just update it by entering this interface. RX PPM output Function Details : RX PPM output: output signal of CH1 is PPM after it is activated.
  • Page 43 failsafe function: Function Details : This function is used to protect aircraft with parameters set in advance when the receivers don't receive the signals. Press failsafe function and it will display the current setting of 10 channels. Off means that in case of a loss of signal, the corresponding servo will keep its last received position..
  • Page 44 Digital proportional radio control system For your safety, please use this function Display sensors: Display the type, ID and value of all connected sensors. Receiver can connect 15 sensors at most. (Pic 21.55) Choose sensors: The main screen can display the value of up to 4 sensors.
  • Page 45 Speed sensor: Select the rotation speed sensor to use. If none is selected, this function is disabled. (Pic 21.58) Set rotation length: Set the model travel distance corresponding to one rotation speed sensor. This distance is used to control the virtual speed and odometers sensors. Touch "Set rotation length"...
  • Page 46 Digital proportional radio control system Servo frequency selection: i-bus setup: Adjust the servo frequency If servos are connected on from 50HZ to 380HZ. Move the the external serial interface, this wheel to modify the frequency function attributes a channel to value, which can be saved on each servo.
  • Page 47 None: the USB interface can be used only to charge the battery of the transmitter. FS-i10: when connected to a computer, the transmitter acts as a standard HID with 4 axes (one for each channel) and 10 buttons (1-10) and can be used as the main controller in any compatible simulation software.
  • Page 48 3. Enter transmitter firmware upgrade menu and press OK to complete (Pic 21.74 About FS-i10 Touch 'About FS-i10', and the version of the current firmware is as shown on the left . Touch the "OK" button to go back. (Pic 21.75)

  • Page 49: Spoiler Function

    Airplane/glider exclusive function menu 22.01 Aileron function Function Details : This function is used to adjust aileron function of models and give it best control. Aileron function can be used to adjust the proportion of the 2 ailerons end points. If the structure does not have the aileron, 2 aileron linkage, flap or elevator, then there is no this function, and no icon will be displayed.
  • Page 50 Digital proportional radio control system 22.04 Elevator to flap Function Details: When aircraft has elevator and flap ,elevator to flap function is used to adjust the proportion of the corresponding mix end point, which default value is 10%. The airplane can fly up or down, which makes the flap move up or down accordingly. It is commonly used for turning somersaults during the flight.
  • Page 51 22.06 Butterfly Function Details: If the airplane structure has 1 aileron, 1 flap, 1 spoiler and 1 elevator, it can be used to adjust the rate of the corresponding motion (the default rate is +30%). This function allows powerful brake operation by simultaneously raising the left and right ailerons and lowering the flaps (camber flap, brake flap).

  • Page 52: Rudder Function

    Digital proportional radio control system 22.08 Rudder function Function Details: Rudder function is used to adjust the proportion of the 2 rudders end points and the defaults are 100%.There is no function if the airplane does not have the rudder or 2 rudder linkage. The function icon will not be shown on the screen.

  • Page 53: Throttle Hold

    Helicopter exclusive function menu 23.01.Throttle hold Function Details : This function is used to maintain the throttle channel position as preset position. The default rate is 10.0%. Throttle will be in preset position after this function is applied. It is commonly used to practice auto-rotation landing.
  • Page 54 Digital proportional radio control system 23.04.Swashplate mix Function Details: This function is the pre-programmed mix control of the helicopter aileron, elevator and pitch. Adjust the motion range of these three functions to achieve the best flight effect. This function can be set in 5 conditions respectively.
  • Page 55 23.07. Swashplate ring This function is to set limitation for the swash plate travel to achieve the best flight effect. Move the wheel to modify the corresponding value. (Pic 23.7) 23.08. Governor This new function is mainly used for maintaining the propeller speed. The default channel is CH7. It can be set in 5 conditions respectively Move the wheel to modify the corresponding value.

  • Page 56: Hover Trim

    Digital proportional radio control system 23.10.Hover trim Function Details: To maintain a hover, assign a knob for adjusting the pitch in helicopter mode. (Pic 23.10) 5 55...
  • Page 57 Warning function introduction Audible alarm 1. When the transmitter battery is low and the voltage is lower than 3.75 V, the system will make alarm which sounds slowly. 2. If the voltage is lower than setting data due to low battery of receiver, the system will make a sound "Ba,Ba". 3.

  • Page 58: Troubleshooting Guide

    Digital proportional radio control system Troubleshooting guide Problem solving 1.The transmitter can not be turned on The battery is not properly installed, Battery is empty, The screen flashes when the transmitter is powered on, and then the transmitter turn itself off immediately, It indicates the electric quantity can't support system for a long time and the transmitter will be turned off once it is powered on, The battery shrapnel is oxidized and loose contact.

  • Page 59: Function Trees

    Function tree Input processing Physical stick 1 Physical stick 2 Physical stick 3 Physical stick 4 VrA to VrE knob Sticks mode Aileron stick Elevator stick Throttle stick Rudder stick Exponential Exponential Exponential Exponential Exponential Trim Trim Trim Trim Aileron stick Elevator stick Throttle stick Rudder stick...
  • Page 60 Digital proportional radio control system Helicopter processing Aileron stick Elevator stick Throttle stick Rudder stick VrA to VrE knob Throttle curve Has variable pitch Pitch curve Throttle down Has throttle needle Throttle mix Throttle hold Throttle needle Linear mixes Has gyroscope Has governor Aileron BF Elevator BF...
  • Page 61 Packaging content Model Model Remarks Remarks FS-AEV01、FS-CEV01 10 Channel 2.4G i-bus receiver connection instruction Transmitter (FS-i10) Optional FS-APD01、FS-CPD01 Data telemetry connection Optional 10 Channel 2.4G receiver (FS-iR10) FS-APD02/FS-CPD02 RPM telemetry (optical) module connection Optional FS-ATM01、FS-CTM01 Temperature telemetry module connection FS-BA1700 Optional FS-AVT01、FS-CVT01...

  • Page 62: Fcc Statement

    Digital proportional radio control system FCC Statement FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 63 Digital proportion radio control system 0678 http://www.flysky-cn.com Copyright©2013-2017 Flysky RC model technology Co., Ltd Edition:20141223...
