Summary of Contents for Fly Sky FS-I4

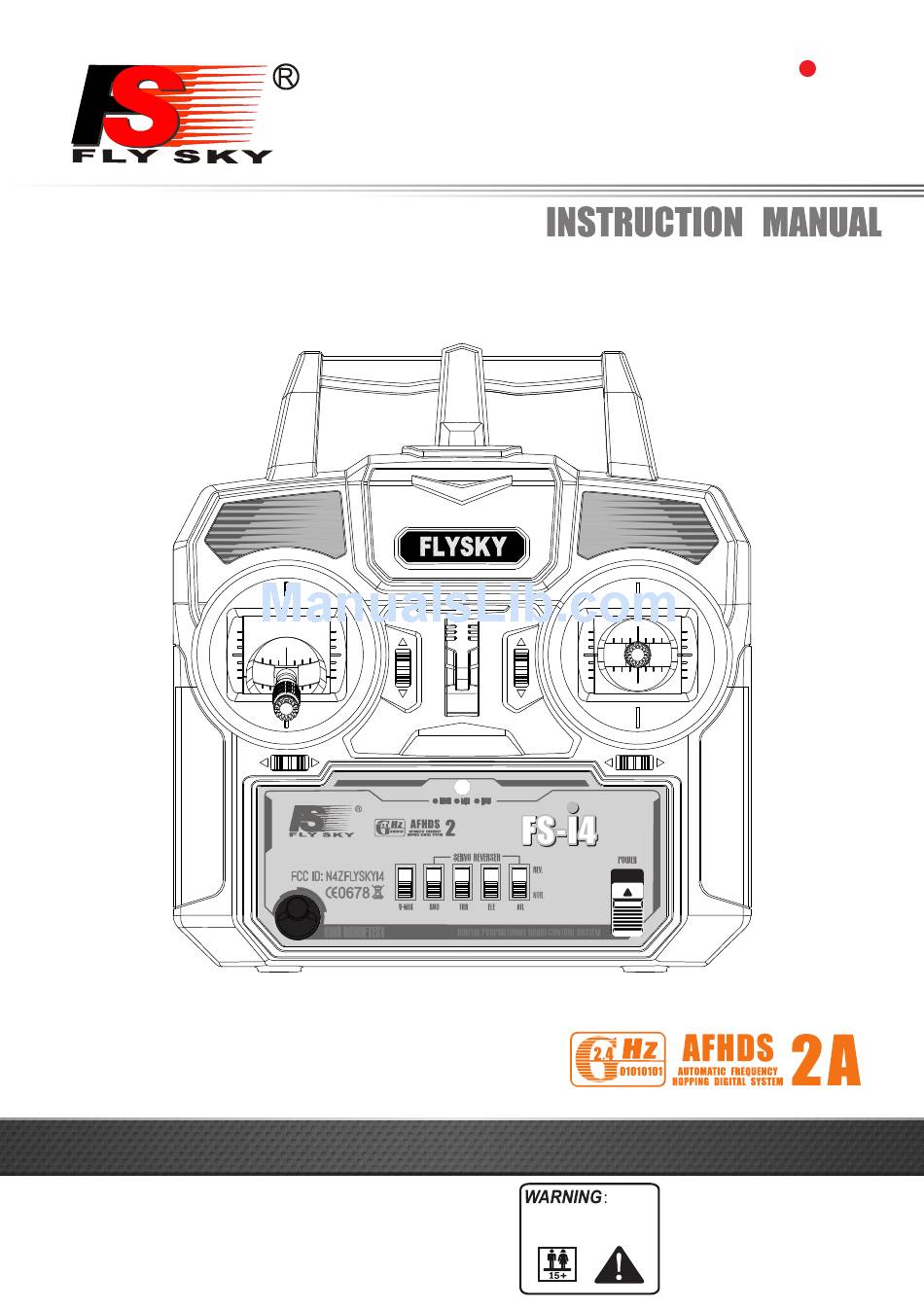

- Page 1 FS-I4 Digital propotional radio control system 用户手册 http://www.flysky-cn.com Copyright ©2013-2017 This product is suitable for FlyskyRC model technology co., ltd 15 years old and above 本产品不适合15岁以下儿童使用...
-
Page 2: Table Of Contents
目录 1、 简介..............................2 Introduction 2、 服务................................2 Services 3、 特殊标志.............................3 Special symbols 4、 安全指导............................3-4 Safety guide 5、 2.4G系统............................5 2.4GHz System 6、System characteristic 系统特征..........................6 7、 Switch the system between AFHDS and AFHDS2 AFHDS与AFHDS2A系统模式互换....6 、 发射机参数.........................7 Transmitter specifications 、 接收机参数........................7 Receiver specifications 10、Operation instruction 接收机操作说明... -
Page 3: Introduction 简介
Introduction 简介 Thank you for choosing the Fly Sky FS-i4 4 channels 2.4GHz AFHDS2A computerized digital proportional R/C airplane and helicopter system. If it’s your first use of a computerized radio system, this user manual will bring you easily to a new world of fun and sophistication.In all cases, please read carefully and completely this user manual as it contains all information to keep you safe. -
Page 4: Special Symbols 特殊标志
Special symbols 特殊标志 Please pay attention to the following symbols when they appear in the manual and read carefully. 当以下标志出现在说明书的时候请注意并且仔细阅读。 Not following these instructions may expose the user to serious injuries or death. 如果使用者不按照说明方法操作，有可能导致使用者严重受伤，甚至致命的危险。 Not following these instructions may expose the user to serious injuries. - Page 5 Digital propotional radio control system FS-I4 Do not operate outdoors on rainy days, run through puddles of water or use when visibility is limited.Should any type of moisture (water or snow) enter any component of the system, erratic operation and loss of control may occur.
-
Page 6: 2.4G系统
2.4GHz System 2.4G系统 警告! 错误使用遥控设备将可能导致严重的伤害甚至死亡。 请在使用前完整阅读这本使用手册，并且在使用过程中 严格按照此手册的说明操作。 该2.4G无线电波段完全不同于之前所使用的低频无 线电波段。使用时要保持您的模型产品飞行在您的视线 范围内，因为大的障碍物将会阻断无线电频率信号从而 导致遥控失控和危险。2.4G无线电频率信号是沿直线传 播的，它不能绕过障碍物进行传播。在使用过程中，严 禁紧握发射机天线，否则将会大大减弱无线电传播信号 的质量和强度， 导致遥控设备失控和危险。 RF specifications: RF range: 2.4055-2.475GHz Channel bandwidth: 500KHz Number of channels: 142 RF power: less than 20dBm RF mode: AFHDS2A. Second generation automatic frequency hopping digital system. (Including the first generation system) Modulation type: GFSK Antenna length: 26mm* 2(dual antenna) -
Page 7: System Characteristic 系统特征
Digital propotional radio control system FS-I4 6.System Characteristic 系统特征 This radio system works in the frequency range of 2.405 to 2.475GHz. This band has been divided into 142 independent channels. Each radio system uses 16 different channels and 160 different types of hopping algorithm. -
Page 8: Transmitter Specifications 发射机参数
Transmitter specifications: Number of channels: 4 Model type: fixed-wing/glider/ helicopter Channel resolution: 1024 steps Power supply: 6V (1.5V AA x4) FS-I4 Low voltage warning: <4.2. Red LED will flash 4.2-4.5V Red 4.6-5V Orange 5-6V Green <3.2V Buzzer goes off to alarm 2.4GHz type:AFHDS2A. -
Page 9: Operation Receiver Instruction 接收机操作说明
Digital propotional radio control system FS-I4 peration instruction 接收机操作说明 接收机与伺服器连接 Receiver and servo connections 10.01. To Batter y 接电池 (CH4) Switch Harness Charging Jack 开关 充电接口 (CH3) (CH2) (CH1) 接收机 Receiver 注意: 为保证良好的遥控距离,请将接收机天线与飞机机身垂直放置并远离金属物体。 Note: To ensure good remote distance, please set the receiver antenna and the aircraft fuselage vertically and leave away from metal objects. -
Page 10: Binding 对码
10.03. Binding 对码 The supplied transmitter and receiver are already bound at production time so you don’t need to do it. If you are using another transmitter or receiver, you have to first bind them before use as described below: 1. -
Page 11: Definition Of Key Functions 按键定义
Digital propotional radio control system FS-I4 Definition of key functions 按键定义 Handle 提手 天线 Antenna 油门/ 升降 微调 油门/ 升降 微调 Throttle/Elevator Trim Throttle/Elevator Trim 方向 Rudder 副翼 Aileron 油门 / 升降 升降 / 油门 Throttle/Elevator Elevator/Throttle 方向 微调 副翼... -
Page 12: Right And Left Stick Can Be Adjustable 左右手摇杆模式调整
Right and left stick can be adjustable. 左右手摇杆模式调整 Function discription: This feature is set for different operating habits of different users , and the user can adjust by the following operation. How to interchange right and left stick mode of transmitter 1. -
Page 13: Power On 开机
Digital propotional radio control system FS-I4 Power on 开机 1. 将各部件连接好。 1. Connect all components. 2. 打开发射机电源开关。 2. Switch transmitter power on. 3. Connect to receiver power supply. 3. 连通接收机电源。 4. The receiver light remains on. 4. 接收机恒亮 5. Use. -
Page 14: Function Description 功能说明
Function description 功能说明 15.01. 1 Channel control 1通道控制 左 右 左移 图16.1 move leftward 当您将发射机的通道1操纵杆向左边移动时， 飞机将往左边倾斜，同时飞机向左边移动（图16.1） 当您将发射机的通道1操纵杆向右边移动时， 飞机将往右边倾斜，同时飞机向右边移动（图16.2） when you move chanel one stick of transmitter to the left, the aircraft will tilt to the left, and the aircraft will move to the left at the same time(figure 16.1) When you move the channel one stick of transmitter to the right, the aircraft will tilt to the right, the aircraft will move... -
Page 15: Channel Control 3通道控制
Digital propotional radio control system FS-I4 15.03. 3 Channel control 3通道控制 上 下 图16.5 上升 go up 此通道用于飞机动力油门控制，其功能如图。 当您将发射机的通道3操纵杆向上边移动时， 飞机的动力将会增加，同时飞机向上升起。（图16.3） 当您将发射机的通道3操纵杆向上边移动时， 飞机的动力将会减小，同时飞机向下降落。（图16.4） This channel is used to control the aircraft power , this function is shown in the figure. When you move the channel 3 stick of transmitter up, the power of aircraft will increase, and the aircraft rises upward at the same time. -
Page 16: Packaging Content 包装内容
Packaging content 包装内容 4 channel 2.4G transmitter (FS-i4) 4 通2.4G发射机(FS-i4) 6 channel 2.4G receiver (FS-A6) 6 通2.4G接收机(FS-A6) FS-I4 Digital propotional radio control system 用户手册 User manual 说明书 http://www.flysky-cn.com Copyright ©2013-2017 FlyskyRC model technology co., ltd This product is suitable for 15 years old and above 本产品不适合15岁以下儿童使用... - Page 17 Digital propotional radio control system http://www.flysky-cn.com Copyright ©2013-2017 Flysky co., ltd...
