- Page 1 FS GT3 INSTRUCTION MANUAL Digital propotional radio control sytem Http www flysky cn com Copy right 2008 flysky co...
-
Page 2: Table Of Contents
MODELS FS GT3 Digital propotional radio control sytem M enu 1.Introduction 2.Ser vices 3.T he special symbols 4.Safty guides 5.Batter y charging notes 6 Transmitter parameters 7.Receiver parameter s 8.RF module parameters 9.Receiver connectivity 10 2 4G Operation notes 11.Each par t of the transmitter 12.Transmitter function notes Main menu MODEL SEL... -
Page 3: Introduction
MODELS FS GT3 Digital propotional radio control sytem 1 .I n tr oduc ti on Thank you for choosing 2.4 G ratio remote control digital products, if you are the first time to use this type of products, please read this statement carefully and strictly in accordance with the requirements of operation. -
Page 4: T He Special Symbols
MODELS FS GT3 Digital propotional radio control sytem 3. Th e s peci al sy mbo ls Please pay attention to the following symbols when it appears on the manual, and read carefully. If the operator does not operate by following the instructions,the operator Danger: may lead to serious injuries, even Mortal danger. -
Page 5: Batter Y Charging Notes
MODELS FS GT3 Digital propotional radio control sytem 5 .Batter y ch arg in g n otes If your transmitter, receiver using a nickel-cadmium, nickel-metal hydride rechargeable battery, you have to well-check before you fly. If lack of electricity, it could happen those phenomenon like inadequate control or out of control, resulting accident. -
Page 6: Transmitter Parameters
MODELS FS GT3 Digital propotional radio control sytem 6 Tr ans mi tter parameter s Specifications A channels 3 channels B model type car boat C RF power less than 20dbm 0 8W D modulation FM GFSK MODEL FS GT3 E Code type digital F sensitivity 1024 G LCD type 128 64 dot... -
Page 7: Rf Module Parameters
MODELS FS GT3 Digital propotional radio control sytem Specifications A channels 2 channels B model type car boat MODEL FS GR2 C frequency bank 27 35 40MHz 27 35 40MHz D modulation PPM E sensitivity 1024 1024 F RF receiver sensitivity 80dbm 80dbm G power 4 5 6vdc... -
Page 8: Receiver Connectivity
MODELS FS GT3 Digital propotional radio control sytem 9.Rec ei ver co nn ecti vity 9 01 INSTALLATION WHEN AN MOTOR CONTROLLER IS USED SWITCH Servo MOTOR BATTERY Receiver Remark Place the antenna of the receiver vertically with the plane And don t let it close to the metal thing for assuring its sensitivity See pic1 Receiver... - Page 9 MODELS FS GT3 Digital propotional radio control sytem 9 02 INSTALLATION FOR GAS POWERED MODELS SWITCH Battery 1 5AA 4 THROTTLE STEERING SYSTEM Servo Http www flysky cn com...
-
Page 10: 10 2 4G Operation Notes
MODELS FS GT3 Digital propotional radio control sytem 1 0 2 4 G Oper ati o n no tes 10 01 Matching (code Our products are well matched in the factory, you do not need to match by yourself. But if your are going to match the receiver with other transmitter, or you need to change a new receiver or transmitter please follow the following steps: A Install the battery to 2.4G transmitter and shut it down. - Page 11 MODELS FS GT3 Digital propotional radio control sytem 10 02 power on Connect every part. Switch on the power supply. Connect the power supply. Receive LED light solid. Finish and use. Power on Tx power ON Rx power ON 10 03 Shut down A Cut off the receiver power supply.
-

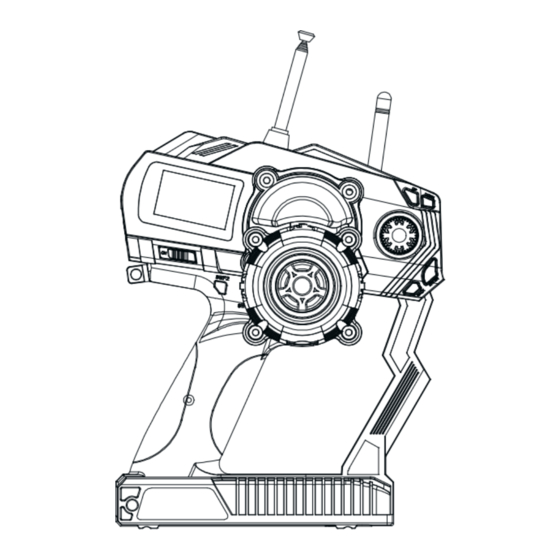

Page 12: Each Par T Of The Transmitter
MODELS FS GT3 Digital propotional radio control sytem 1 1 .Each par t o f the tr ans mi tter FRONT LCD SCREEN default throttle trim POWER SW HOOK SWF2 default steering trim 2 4G ANT FM ANT DOWN edit key edit key DIAL ENTER... -
Page 13: Transmitter Function Notes
MODELS FS GT3 Digital propotional radio control sytem 1 2.Tra ns mi tter f un c ti on no tes LCD MAIN PAGE ST TRIM BEEZ POWER VOLTAGE DR SW ON LOGO ABS SW ON ABS START MODEL NAME TH TRIM LOGO MODEL NAME BEEZ... -
Page 14: Main Menu
MODELS FS GT3 Digital propotional radio control sytem Mai n menu Page1 Page2 UP/DOWN MODEL SEL NAME EDIT REVERSE DOWN SUBTRIM RIGHT E POINT LEFT DISPLAY Press button ENTER ENTER ST DELAY TH SPEED BACK PROG KEY Function Introduction: To display all the 12 menus.. Operation Method: Choose the menu by press the UP/DOWN button, and then press ENTER to enter in. -
Page 15: Model Sel
MODELS FS GT3 Digital propotional radio control sytem MODEL S EL Function Introduction This transmitter can save 8 type models so that you the user can use one transmitter control different models Operation Method Select the models by the key UP DOWN or the knob Parameter Introduction MODEL1 MODEL8 are 8 different model parameter FLYSKY0 is the original model name you can edit it by yourself... -
Page 16: Rever Se
MODELS FS GT3 Digital propotional radio control sytem Rever se Function Introduction Adjustments the forward and reverse direction of the outputs channel steering system Throttle and the third channel to apply to the different servo system and assemble methods Operation Method Select the adjustment channel by UP DOWN key adjustments by the knob switch after finished press enter key to save and exit Parameter Introduction... - Page 17 MODELS FS GT3 Digital propotional radio control sytem Function Instruction: Double output control to get 2 different operation mode and suitable for different operation requirement. This function can be shut or open by a button in anytime normally, we set this function to the key SWD, pls see PROG KEY menu.
-
Page 18: End Point
MODELS FS GT3 Digital propotional radio control sytem END POIN T Function Instruction: use this when performing left and right steering angle adjustments, throttle high side/brake side operation amount adjustment, and channel 3 servo up, side/down side operation amount adjustment during linkage.Correct the maximum steering angle and left and right steering angles when there is a difference in the turning radius due to the characteristics, etc. -
Page 19: Arc
MODELS FS GT3 Digital propotional radio control sytem Operation introduction this function is a kind of high class professional setting system it can be used to set the output curve to let the output to match the motor engine and servo much better and anc it also can according the operator s feeling to set to get to get theoptimal operation feeling Operation Method:... -
Page 20: Abs
MODELS FS GT3 Digital propotional radio control sytem Function introduction This function is a kind of high class professional setting system to set the car s anti skid brake system Operation Method: To choose the item by press the UP/DOWN button, then adjust the data by the knob, then save the data and press “Enter”... -
Page 21: St Delay
MODELS FS GT3 Digital propotional radio control sytem S T DEL AY Function Introduction: To adjust the speed of the steering operation that quick steering operation will cause momentary understeering, loss of speed, or spinning. This function is effective in such cases. Operation Method: Adjust the data by the knob, and then save the data and press “ENTER”... -
Page 22: Th Speed
MODELS FS GT3 Digital propotional radio control sytem TH SPEED Function Introduction: Sudden throttle trigger operation on a slippery road only causes the wheels to spin and the vehicle cannot accelerate smoothly. Setting the throttle speed function reduces wasteful battery consumption while at the same time permitting smooth, enjoyable operation. Operation Method: To adjust the data by the DIAL key, then save the data and press “Enter”... -
Page 23: Exploded Drwing
MODELS FS GT3 Digital propotional radio control sytem 1 3 EXPL ODED DR WING Http www flysky cn com... -
Page 24: Packaging With Content List
MODELS FS GT3 Digital propotional radio control sytem 1 4.Pac kag in g w ith c onten t li s t Model Remarks 3 CHANNEL 2 4G TRANSMITTER FS GT3 3 CHANNEL 2 4G RECEIVER FS-GT3A 2 4G MODULE FS GT3 INSTRUCTION MANUAL MANULE Digital propotional radio control sytem... - Page 25 Digital proportional radio control system Http www flysky cn com Copy right 2008 flysky co...
