NetVanta 3100 Series Hardware Installation Guide
• Mounting 1700340F1: Plastic enclosed desktop version that can also be wall mounted
• Mounting 1700341F1: 1U-high desktop, wallmount, or rackmount metal enclosure (optional rackmount
brackets (P/N 1700511F1) sold separately)
• Power 1700340F1: DC power (12 VDC, 1.0 A)
• Power 1700341F1: AC auto-ranging power, 100 to 240 VAC, 50/60 Hz
• Optional AC power supply: 110 to 240 VAC, 50/60 Hz
• Operating Temperature 1700340F1: 0°C to 50°C
• Operating Temperature 1700341F1: 0°C to 50°C
• RoHS compliant

NetVanta 3140 Shipping Contents

Each NetVanta 3140 unit is shipped in its own cardboard shipping carton. Open each carton carefully, and
avoid deep penetration into the carton with sharp objects.
After unpacking the unit, inspect it for possible shipping damage. If the equipment has been damaged in
transit, immediately file a claim with the carrier and contact ADTRAN Customer Service (refer to the
Support page on the ADTRAN website at http://www.adtran.com/support).
Shipments of the NetVanta 3140 Desktop (P/N 1700340F1) include the following items:
• NetVanta 3140 base unit
• Quick start guide
• External 12 VDC power supply
• One 7-foot CAT 5e cable (P/N 3125111-E)
Shipments of the NetVanta 3140 (P/N 1700341F1) include the following items:
• NetVanta 3140 base unit
• Quick start guide
• One 7-foot CAT 5e cable (P/N 3125111-E)
• All appropriate power cords

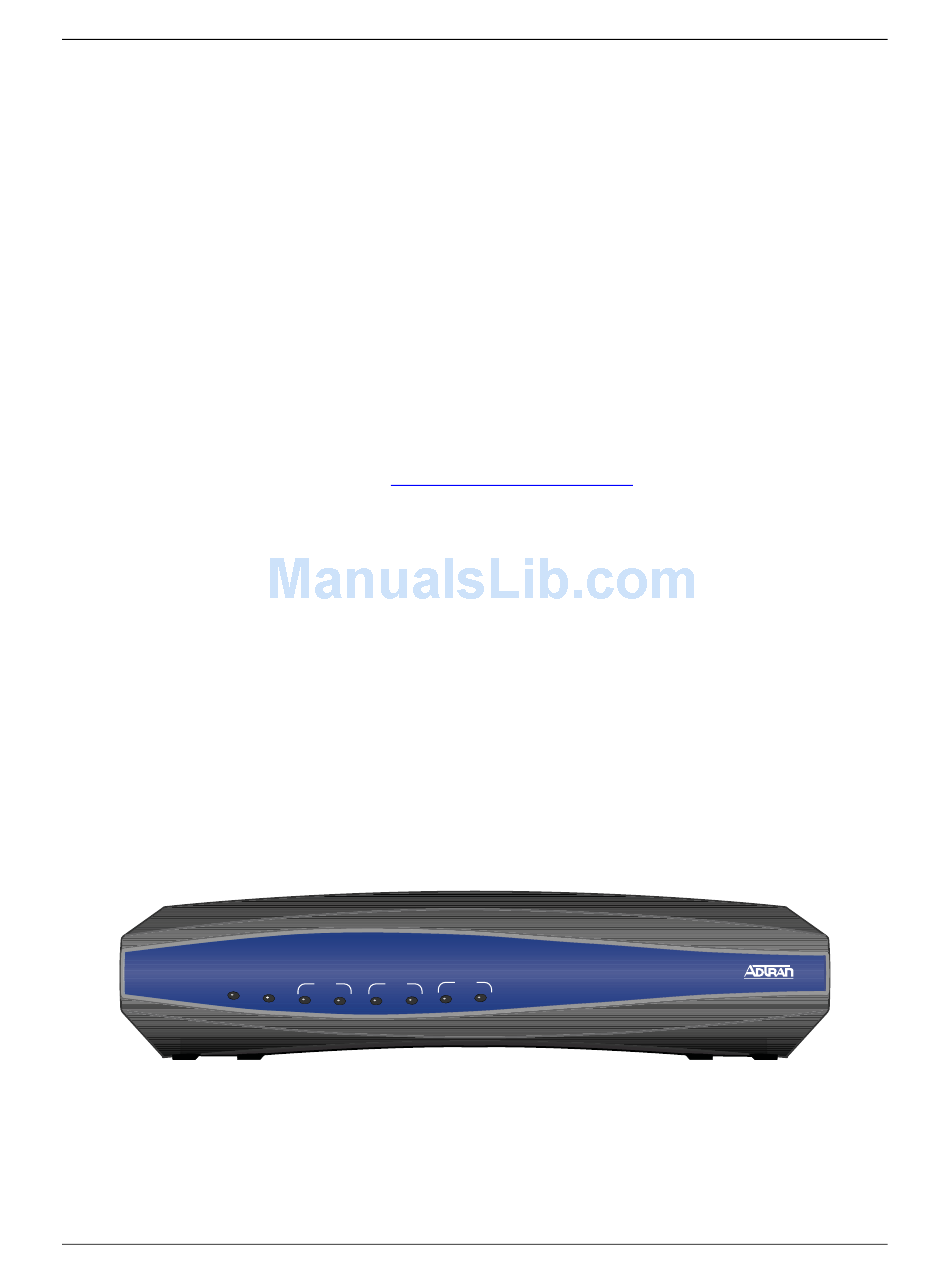

NetVanta 3140 Desktop Front Panel Design

The NetVanta 3140 front panel is shown below. Front panel LED descriptions are given in
STAT
61700600L2-34C
GIG 1 GIG 2
USB
LINK
ACT
LNK ACT

Figure 9. NetVanta 3140 Desktop Front Panel Layout

Copyright © 2015 ADTRAN, Inc.
GIG 3
ACT
LNK
Physical Descriptions
Table 1 on page 24.
NetVanta 3140
21
