ADTRAN NetVanta 3100 Series Quick Start Manual

®
NetVanta 3100 Series Router
Quick Start Guide
STAT
ETH1
VPN 1
DBU

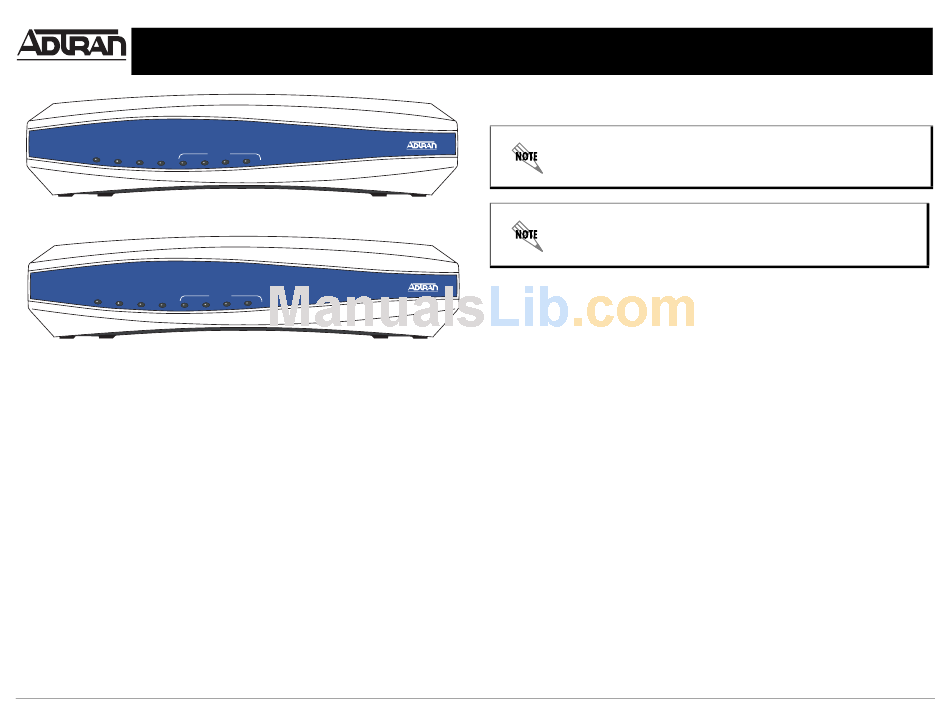

NetVanta 3120 Front Panel Layout
STAT
WAN
VPN 1
DBU
NetVanta 3130 Front Panel Layout
G S
ETTING TARTED
Two configuration methods are available for your NetVanta router:
• Web-based GUI
• AOS Command Line Interface (CLI)
The GUI lets you configure the main unit settings and provides online guidance and explanations
for each setting. However, using the AOS CLI may be necessary for more advanced
configurations.
A GUI
CCESS THE
You may access the web-based GUI from any web browser on your network by following these
steps:
1. Connect the router to your PC using one of the four switch ports on the back of the unit.
2. During bootup your PC will obtain an IP address from the NetVanta 3100 Series unit's DHCP
server. By default, both the DHCP and HTTP servers are enabled.
3. Enter the unit's IP address in your browser address line. The default IP address is 10.10.10.1.
4. You will then be prompted for the username and password (the default settings are admin
and password).
5. The initial GUI screen appears.
Quick Start Guide, 61700600L2-13A, July 2006
NetVanta 3120
SWITCH
4
2 3
NetVanta 3130
SWITCH
4
2 3
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at www.adtran.com.
6. Click on Getting Started in the System menu on the left side of your screen and follow the
on-line instructions.
For security purposes, you should set up an admin password
immediately. Use the Passwords page of the Web GUI to change this
password.
By default, the NetVanta 3130 comes with an ADSL and an Asynchronous
Transfer Mode (ATM) port already configured and enabled. The service
provider should provide a PVC (VPI/VCI) number which will be used to
configure the ATM PVC.
C ATM PVC (N
ONFIGURE THE
1. Click on the Getting Started link under the System menu. This brings up a side bar page.
2. Click on Step 1 - Configure the Public Interface at the top of the side bar page to open the
ATM PVC page.
3. Enter the PVC number and select an Interface Mode. Usually this is PPP or PPPoE;
however, if IP routing is chosen, you will need to enter an IP address.
4. Click Apply. If PPP or PPPoE is selected as the Interface Mode, you will be taken to the
PPP page after clicking Apply. Here you will need to select the type of authentication
needed, authentication passwords, and the Address Type. In most cases you will want the
Address Type to be Negotiated. Click Apply when all the information is complete.
A CLI
CCESS THE
If needed, you can access the AOS CLI via a Telnet session.
1. Telnet to the unit's IP address. The default IP address is 10.10.10.1.
2. You will then be prompted for the username and password (the default settings are admin
and password).
3. Enter enable at the > prompt.
4. Enter the enable password when prompted. The default password is password.
uy
P/N 1700600L2, 1700610L2
V 3130 O )
ET ANTA NLY
Copyright © 2006 ADTRAN, All Rights Reserved
