entered to the calibrator as a reference temperature. The cali-
brator and the device under test are connected with copper
wire.
Otherwise, the external reference temperature is entered in all
cases where temperature measurement at the device under
test is accomplished by means of a thermostatic reference
junction (end of the thermocouple equalizing lead).
!
Attention!
In this operating mode interference voltages must not
be applied to the calibrator jacks.
In the event of operating errors, such as the short-
term application of a high interference voltage, the in-
strument/calibrator is protected by a replaceable
fuse F3, see chapter 12.3.

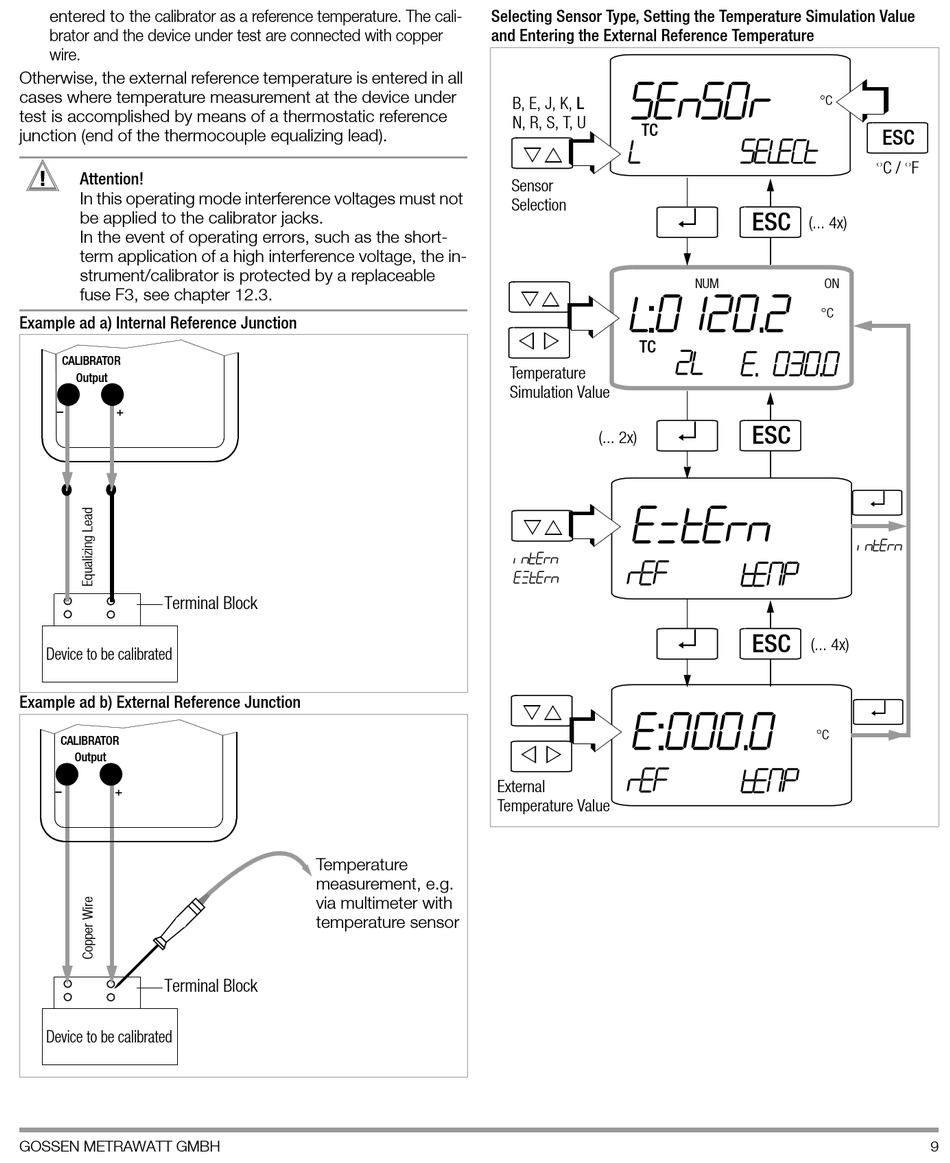

Example ad a) Internal Reference Junction
CALIBRATOR
Output
– +
Terminal Block
Device to be calibrated
Example ad b) External Reference Junction
CALIBRATOR
Output
– +
Terminal Block
Device to be calibrated
