Summary of Contents for Gossen MetraWatt METRISO PRIME

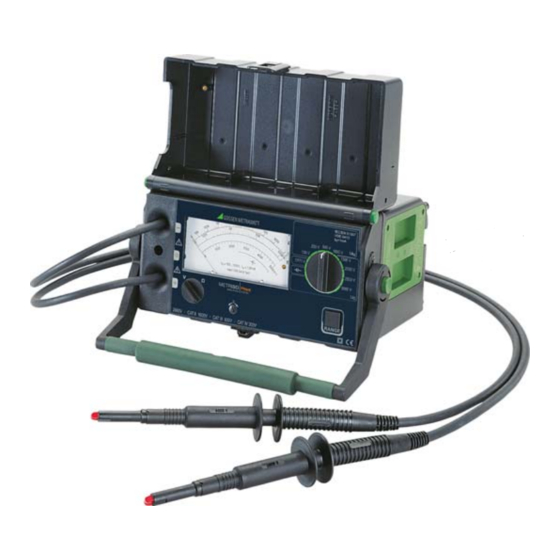

- Page 1 Operating Instructions METRISO PRIME 3-349-820-37 High-Voltage Insulation Tester With Battery or Crank Generator Operating Mode 3/6.18 Option Z580A Crank Generator...
- Page 2 Attention! Connect accessory 5 m extension cable Leadex 5000 (Z580D) only with positive measurement cable! Selector switch for test voltage, battery test and power supply inter- Selector switch for voltage or insulation resistance ruption measurements RANGE key for measuring range selection Analog display Ω...
- Page 3 GMC-I Messtechnik Inbetriebnahme ................5 GmbH. Batterien einsetzen ..................5 The METRISO PRIME insulation tester is manufactured and tested in Batterien testen ....................5 accordance with the following standards: Prüfgerät ein- und ausschalten ................5 IEC 61010-1:2010, EN 61010-1:2011, VDE 0411-1:2011 Analoganzeige ....................6...
- Page 4 Errors and Extraordinary Strains Using the test probes (Electrical Safety) If it may be assumed that the instrument can no longer be operated safely, it must Maximum rated voltage 300 V 600 V 1000 V 5000 V be removed from serviced and secured against unintentional use. Send the instru- Measuring category CAT IV CAT III...
- Page 5 Initial Start-Up For initial start-up of the METRISO PRIME with crank generator or of the Note METRISO PRIME with accessory crank generator module see Chapter 8 If the needle only moves into the minimal supply voltage range, and Chapter 3.4.
- Page 6 Analog Display Note Logarithmic representation of the upper resistance scale allows for quick Voltages of greater than 2000 V may not be applied. Input resis- recognition of the magnitude involved. tance for the voltage measuring range is equal to 5 MΩ. In order to achieve the required accuracy for testing of protective mea- sures, the RANGE key allows for switching to the expanded lower limit measuring range of 100 kΩ...
- Page 7 Do not touch the conductive ends of the test prods when the in- measurement deviation of the METRISO PRIME into consideration (under strument has been activated for the measurement of insulation nominal conditions of use) can be determined with the following table.
- Page 8 Measurements with the Guard Cable (with Accessory Guard 5000A) Characteristic Values The measurement of very high impedance resistances presupposes Insulation Resistance extremely small measurement currents, and can be rendered problematic Nominal/Test by influences such as electromagnetic fields, moisture or surface currents. Measuring Nominal Nom./Test...
- Page 9 Display Electrical Safety Movement core-magnet moving-coil mechanism Protection Class Scale Length 111.5 mm (longest scale) Test Voltage 8.5 kV~ Measurement Category 1000 V CAT II, 600 V CAT III, 300 V CAT IV Reference Conditions Nominal Voltage U 1000 V +23 °C ±2 K Ambient Temp.
- Page 10 Maintenance Device Return and Environmentally Compatible Disposal The instrument is a category 9 product (monitoring and control instrument) in accordance with ElektroG (German Electrical and Electronic Device Law). This device is subject to the RoHS directive. Furthermore, we make Attention! reference to the fact that the current status in this regard can be accessed Before replacing batteries completely disconnect the device from on the Internet at www.gossenmetrawatt.com by entering the search term...
- Page 11 The instrument must be disconnected from the measuring circuit Ð Set the range selector switch at the METRISO PRIME to the OFF/V posi- before repair, replacement of parts or balancing. If the repair of an open, tion and the function selector switch to V.
- Page 12 Ambient Conditions Note If the Ω signal LED is not lit, or if it flickers, test voltage is too low, i.e. too Same as METRISO PRIME (M550T) little power is being delivered by the crank generator. Electrical Safety (installed) Measurement values are only valid if the Ω signal LED is continuously lit.
- Page 13 Repair and Replacement Parts Service Competent Partner Calibration Center* GMC-I Messtechnik GmbH is certified in accordance with and Rental Instrument Service DIN EN ISO 9001. When you need service, please contact: Our DAkkS calibration laboratory is accredited by the Deutsche Akkredi- tierungsstelle GmbH (National accreditation body for the Federal Republic GMC-I Service GmbH of Germany) in accordance with DIN EN ISO/IEC 17025 under registration...
- Page 14 Edited in Germany • Subject to change without notice • A pdf version is available on the Internet. Phone +49 911 8602-111 GMC-I Messtechnik GmbH +49 911 8602-777 Südwestpark 15 E-Mail info@gossenmetrawatt.com 90449 Nürnberg • Germany www.gossenmetrawatt.com...
