Non-Proprietary Security Policy, Version 1.0
Section 1 of the Administrator's Guide for the VSX Series lists the connection cables required for the VSX 7000e
system. The following table maps VSX 7000e interfaces with FIPS 140-2 logical interfaces.
Table 4 - Mapping of FIPS 140-2 Logical Interfaces to VSX 7000e Interfaces
FIPS 140-2 Logical Interface
Data Input
Data Output
Control Input
Status Output
Power
The following list provides the ports and interfaces of the VSX 7000s system and Figure 9 below shows the ports on
module's back panel.
Power connector – Houses power for subwoofer and optional network interface module (for BRI, PRI, and
V.35/RS-449/RS-530 connection)
Polycom VSX 3000, VSX 5000, and VSX 7000s
© 2007 Polycom, Inc. -
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.

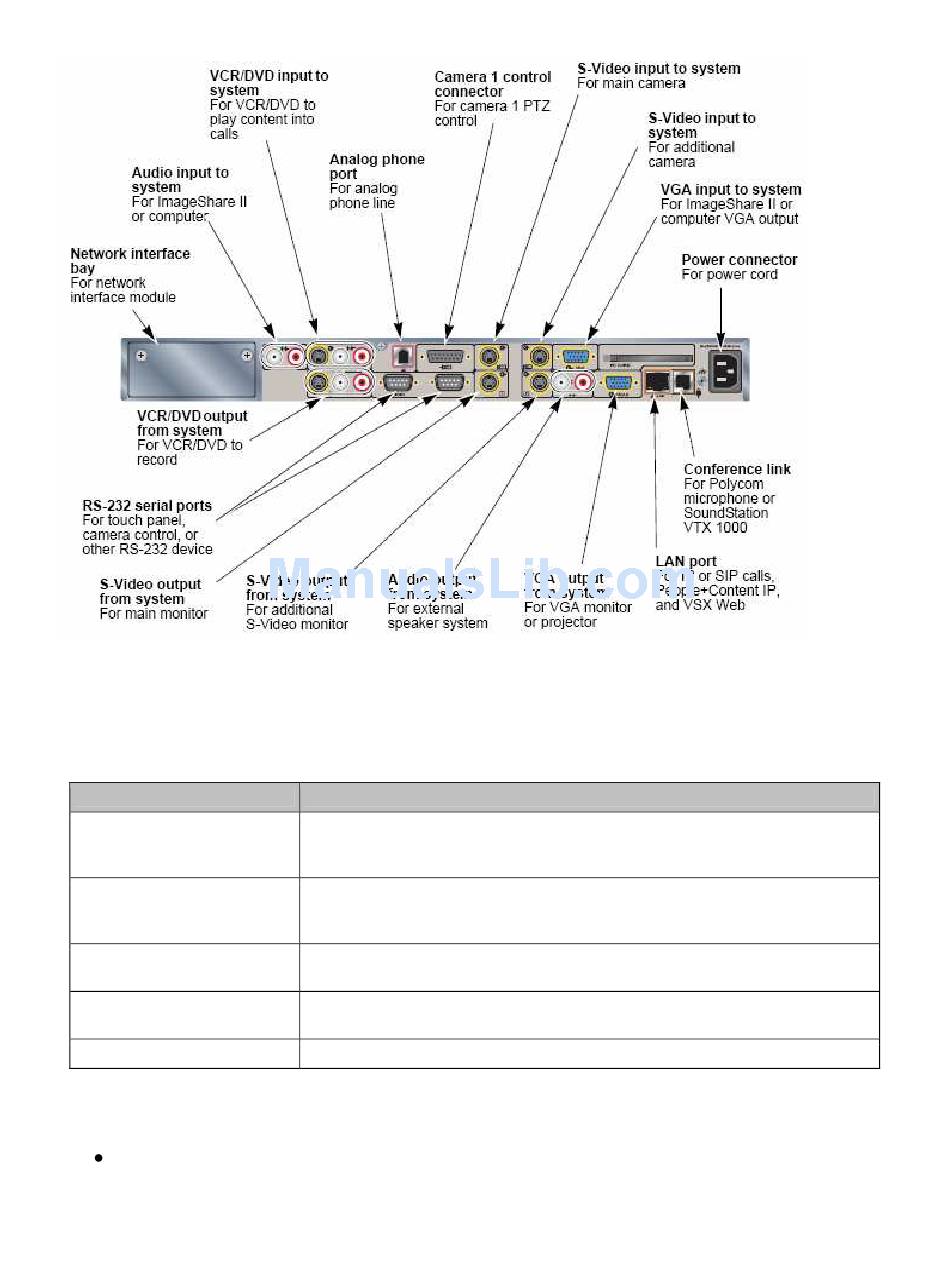

Figure 8 - VSX 7000e Back Panel

VSX 3000, VSX 5000, and VSX 7000se Port/Interface
Network interface bay, VCR/DVD connector, Audio connector, Serial ports, S-Video
connector, Analog phone connector, VGA connector, LAN connector, Conference link
connector
Network interface bay, VCR/DVD connector, Audio connector, Serial ports, S-Video
connector, Analog phone connector, VGA connector, LAN connector, Conference link
connector
Network interface bay, Serial ports, Camera 1 control connector, LAN connector,
Conference link connector, IR Sensor, Power button
Network interface bay, Serial ports, LAN connector, Conference link connector, Power
button, LEDs
Power connector
