Accessories - Lectrosonics HMa Instruction Manual

Accessories

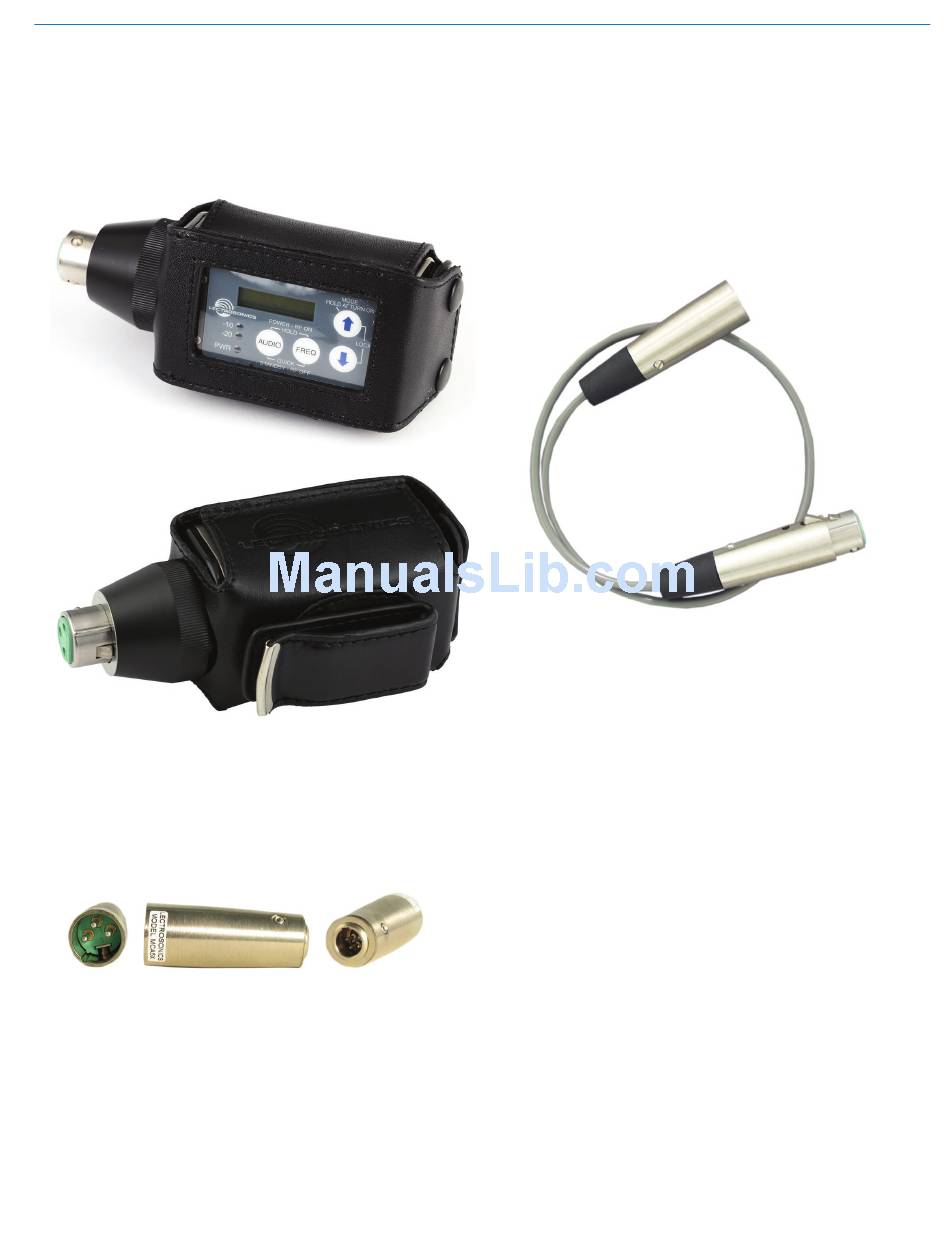

PHTRAN3
Replacement leather pouch with clear plastic screen
cover, rotating belt clip and snap closure. Included with
transmitter at purchase.
MC5AX
Optional adapter for connecting a lavaliere microphone
to the HMa or HM transmitters. TA5M to XLR3-M
connectors. Passes transmitter phantom power to
bias the electret lavaliere microphone. Includes zener
protection to limit bias voltage to protect the microphone
if transmitter phantom power is set too high.
Rio Rancho, NM
Wideband Digital Hybrid
MCA-TPOWER
This cable adapter is to be used with the UH200D,
UH400, HM and HMa plug-on transmitters with
T-powered microphones. It will protect a T-power
mic against the 48V phantom power setting in the
transmitter while allowing normal operation. The
transmitter should be set to the 15V position for best
operation and minimum battery drain.
Plug-On Transmitter
®
13
