Special Purpose Barrel Adapters

P/N 21750

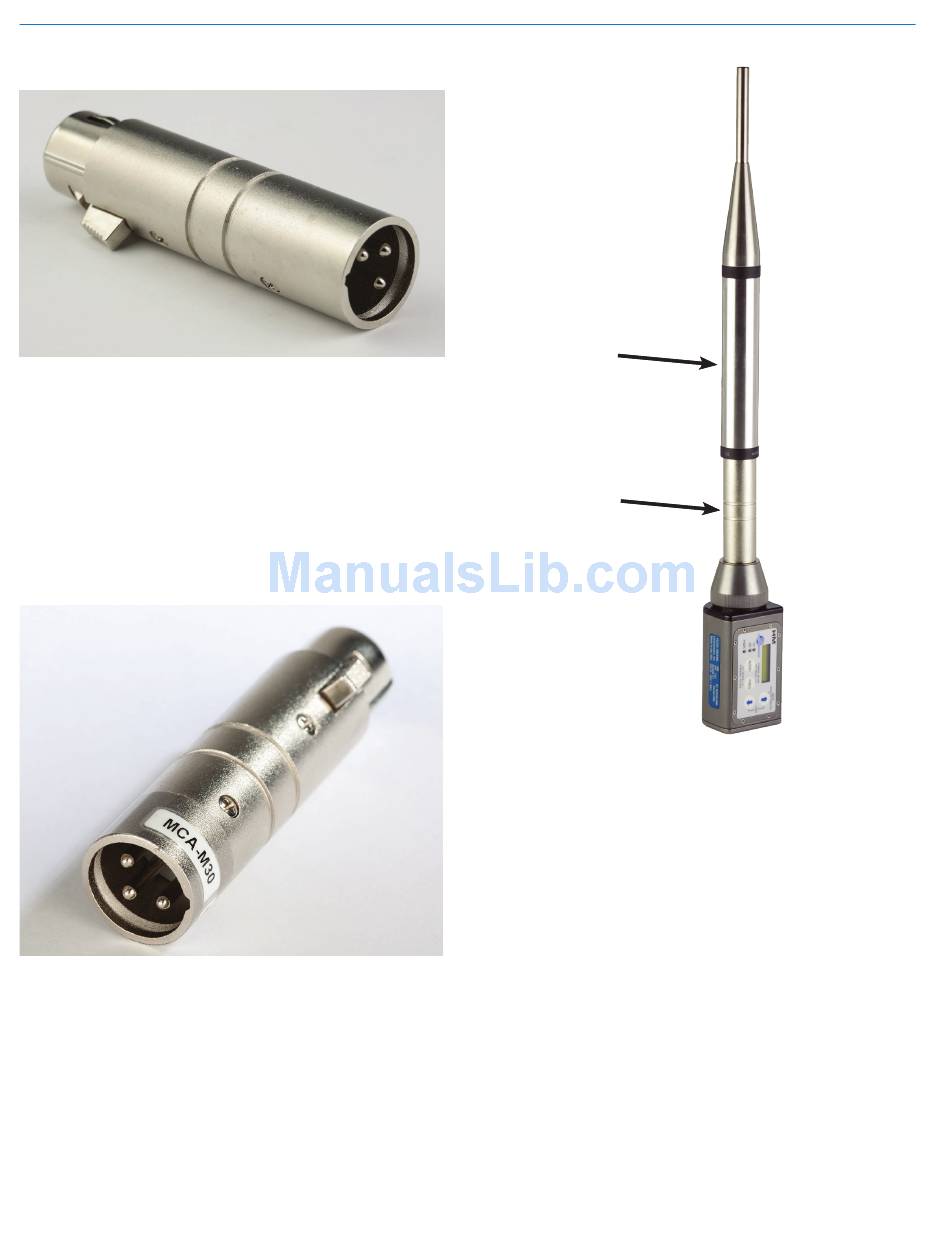

Polarity Reversing
Barrel Adapter
Mic adapter for Earthworks M30 microphone with HM,
HMa and UH400a/TM transmitters.
This polarity reversing adapter may be needed to
correct for asymmetrical current draw in some P48
powered condenser microphones, including older
Neumann 100 Series, Rode NTG3 and others. If your
microphone does not power on correctly when used
with these transmitters, insert the adapter between the
transmitter and microphone.

MCA-M30

This adapter may be needed if you are experiencing
noise or distortion with measurement microphones,
particularly the Earthworks M30. The adapter has
common mode checks for suppressing RF noise. If
your microphone signal exhibits the problems listed
above when connected to a UH400, HM or HMa trans-
mitter, insert the adapter between the microphone and
the transmitter.
Insert the adapter between the transmitter and micro-
phone to alleviate the problems listed above.
