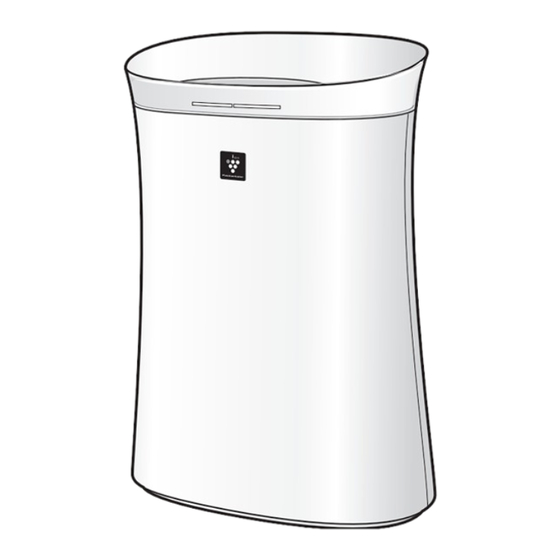

AIR PURIFIER OPERATION MANUAL “Plasmacluster” and “Device of a cluster of grapes” are trademarks of Sharp Corporation. *The number in this technology mark indicates an approximate number of ions supplied into air of 1 cm which is measured around the center of a room with the “high-density plasmacluster 7000”...
Page 2
Please read before operating your new Air Purifier The air purifier draws in room air from the air intake, passes the air through a Back Panel, a Deodorizing Filter and a HEPA Filter inside of the unit, then discharges the air through the air outlet.
Sensor Technology continuously monitors air quality, and automatically adjusting operation based on detected air purity. Thank you for purchasing the SHARP Air Purifier. Please read this manual carefully. Before using this product, be sure to read the section: “Important Safety Instructions.”...
• Be cautious when cleaning the unit. Corrosive cleansers may damage the exterior. • Only a Sharp Authorized Service Centre should service this air purifier. Contact the near- est Service Centre for any problems, adjustments, or repairs.
CAUTIONS CONCERNING OPERATION • Do not block the intake and/or air outlet. • Do not use the unit near or on hot objects, such as stoves or heaters or where it may come into contact with steam. • Do not lay the unit down when using. •...
PART NAMES FRONT DUST AND ODOR SIGN Indicates the air purity of the room in 3 levels with color changes. Green Clean PLASMACLUSTER SIGN Orange blue Plasmacluster ON Impure Plasmacluster OFF BACK (Shape of plug depends on country.) Main Unit Handle Dust Sensor / Air Outlet...
FILTER INSTALLATION Be sure to remove the power plug from the wall outlet. To maintain the quality of the filter, it is installed in the main unit and packed in plastic bag. Be sure to remove the filter from the plastic bag before using the unit. Remove the Back Panel.
OPERATION CLEAN AIR START STOP • Select the desired fan speed. • Unless the power cord has been unplugged, the operation starts in the previous mode it was operated in. CLEAN ION SHOWER Releases high-density Plasmacluster ions and discharges strong air fl ow for 60 minutes. START NOTE •...
OFF TIMER Select the length of time you want, with the unit on. The unit automatically stops once the selected time is reached. CANCELLATION Light Control You can set the DUST AND ODOR/PLASMACLUSTER SIGN to OFF when their SIGN is bright. NOTE •...
CARE AND MAINTENANCE To maintain optimum performance of this air purifier, please clean the unit including the filter periodically. Be sure to disconnect the power cord from the wall outlet before performing any maintenance. BACK PANEL (Pre-filter) Gently remove dust from the back panel, using a vacuum cleaner attachment or similar tool.
Be sure to remove the power plug from the wall outlet. SENSORS Dust sensor 1. Remove the Back Panel. 2. Remove the Dust Sensor Filter. Dust sensor filter 3. If it is very dirty, wash it with water and dry it thoroughly.
TROUBLESHOOTING Before calling for service, please review the Troubleshooting chart below, since the problem may not be a unit malfunction. SYMPTOM REMEDY (not a malfunction) Odors and smoke are not removed. • Replace the filters if they appear to be heavily soiled. (Ref.
SYMPTOM REMEDY (not a malfunction) AUTO RESTART Auto Restart can be set. • Even when the plug is unplugged or the breaker is thrown After a power failure, automatically during the operation, the operation resumes at the previous resume the operation when the operation mode and settings if the power recovers.
Sharp. Please retain your sales documentation, as this should be produced to validate a warranty claim.
