DOREL ASIA
Model No:
DA6788E (ESPRESSO)
DA6788W (WHITE)
CRIB CHANGER COMBO
UPC CODE:
2 IN 1 CRIB
ESPRESSO: 0-65857-16658-3
WHITE: 0-65857-16659-0
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASSISTANC
Fax #: 514-353-7819
1-800-295-1980
DO NOT RETURN PRODU
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dorel Asia DA6788W
Summary of Contents for Dorel Asia DA6788W

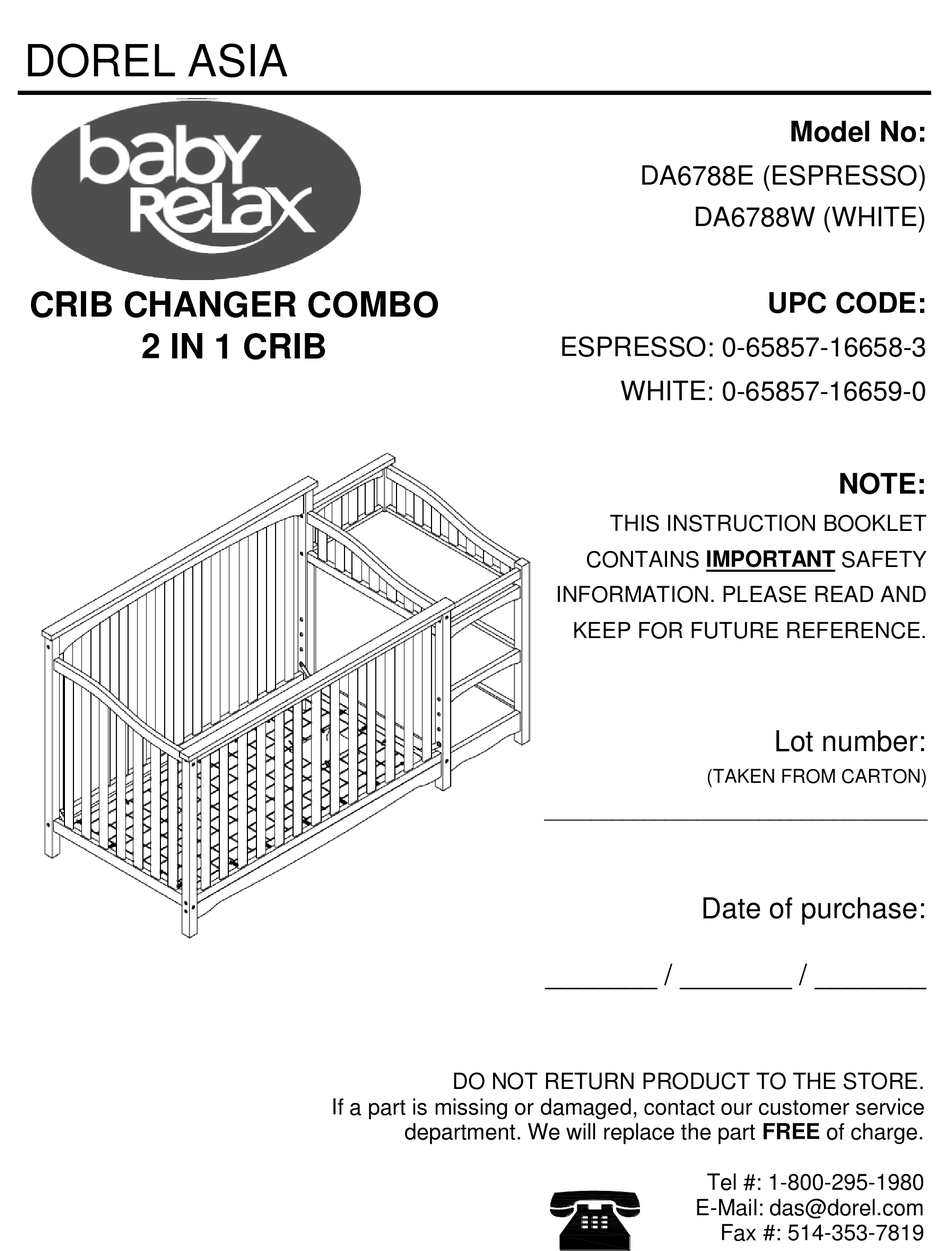

- Page 1 DOREL ASIA Model No: DA6788E (ESPRESSO) DA6788W (WHITE) CRIB CHANGER COMBO UPC CODE: 2 IN 1 CRIB ESPRESSO: 0-65857-16658-3 WHITE: 0-65857-16659-0 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON)
- Page 2 CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part. Customer Service Department No.
-
Page 3: Care And Cleaning
Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. - Page 4 CRIB CHANGER COMBO DA6788W / DA6788E HARDWARE LIST Ø1/4" X 13mm X 75mm Ø1/4" X 13mm X 60mm BOLT BOLT 12 PCS 2 PCS Ø1/4" X 13mm X 50mm Ø8mm X 30mm BOLT 20 PCS 17 PCS Ø1/4" X 13mm X 15mm Ø1/4"...
-
Page 5: Parts List
CRIB CHANGER COMBO DA6788W / DA6788E PARTS LIST FRONT POST BACK POST BACK PANEL 2 PCS 2 PCS 1 PC LEFT SIDE PANEL RIGHT SIDE PANEL FRONT PANEL 1 PC 1 PC 1 PC FRONT RAIL MATTRESS SUPPORT 1 PC... - Page 6 CRIB CHANGER COMBO DA6788W / DA6788E PARTS LIST RIGHT SIDE FRAME CHANGER TOP BACK RAIL MIDDLE BACK RAIL 1 PC 1 PC 1 PC BOTTOM BACK RAIL TOP FRONT BAR TOP FRONT RAIL 1 PC 1 PC 1 PC MIDDLE FRONT RAIL...
- Page 7 CRIB CHANGER COMBO DA6788W / DA6788E CRIB ASSEMBLY INSTRUCTION NOTE: When inserting bolts, turn clockwise until tight. Then loosen 1/2 - 3/4 of a turn. After crib is completely assembled, return to each bolt and tighten. Use wax or soap on all bolts to facilitate assembly.
- Page 8 CRIB CHANGER COMBO DA6788W / DA6788E STEP 1 Insert wood dowels (4) and barrel buts (6) into back panel ( C) as shown. Attach posts (B1 & B2) to back panel (C) with bolts (1). Use Allen Key (7) to tighten all bolts (1).
- Page 9 CRIB CHANGER COMBO DA6788W / DA6788E STEP 2 Insert barrel nuts (6) into side panels (D & E) as shown. Attach left front post (A1) to left side panel (D) with bolts (1) . Insert wood dowel (4) to right front post (A2).
- Page 10 CRIB CHANGER COMBO DA6788W / DA6788E STEP 3 Insert barrel nuts (6) into side panels (D & E) as shown. Insert wood dowel (4) into right back post (B2). Attach right side panel (E) to back panel (C ) with bolts (1 & 3) as shown.
- Page 11 CRIB CHANGER COMBO DA6788W / DA6788E STEP 4 Insert barrel nuts (6) into front rail (G). Attach front rail (G) to left front post (A1) and right front post (A2) with bolts (1). Use Allen Key (7) to tighten all bolts (1).
- Page 12 CRIB CHANGER COMBO DA6788W / DA6788E STEP 5 Attach mattress support (H) to the posts with mattress support bolts (5). Use Allen Key (7) to tighten the mattress support bolts (5). INCORRECT- Raised edge should face down -this photo shows mattress support is upside down.
- Page 13 CRIB CHANGER COMBO DA6788W / DA6788E STEP 6 Attach front panel (F) to left front post (A1) and right front post (A2) with bolts (3). Secure front panel (F) to front rail (G) with bolts (2). Use Allen Key (7) to tighten the bolts (2 & 3).
- Page 14 CRIB CHANGER COMBO DA6788W / DA6788E STEP 7 Insert wood dowels (4) into top front bar (M), top front rail (N) and middle front rail (O) as shown. Attach top front bar (M), top front rail (N) and middle front rail (O) to right front post (A2).
- Page 15 CRIB CHANGER COMBO DA6788W / DA6788E STEP 8 Slide top panel (Q) into the grooves of rails (J & N). Slide middle panel (R) into the grooves of rails (K & O). Slide bottom panel (S) into the grooves of rails (L & P).
- Page 16 CRIB CHANGER COMBO DA6788W / DA6788E STEP 9 Insert wood dowels (4) into changer top back rail (J), middle back rail (K), top front bar (M), top front rail (N), middle front rail (O), and bottom front rail (P). Attach right side frame (I) to the assembled unit with bolts (3).
- Page 17 CRIB CHANGER COMBO DA6788W / DA6788E DAY BED ASSEMBLY INSTRUCTION: STARTING FROM CRIB STEP 1: Follow steps step 9 to 7 backwards to remove the change table. STEP 2: Unscrew bolts (2) underneath the crib front rail (G) with Allen Key (7).
- Page 18 CRIB CHANGER COMBO DA6788W / DA6788E CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
-
Page 19: Customer Service
MODEL #: DA6788W / DA6788E Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
