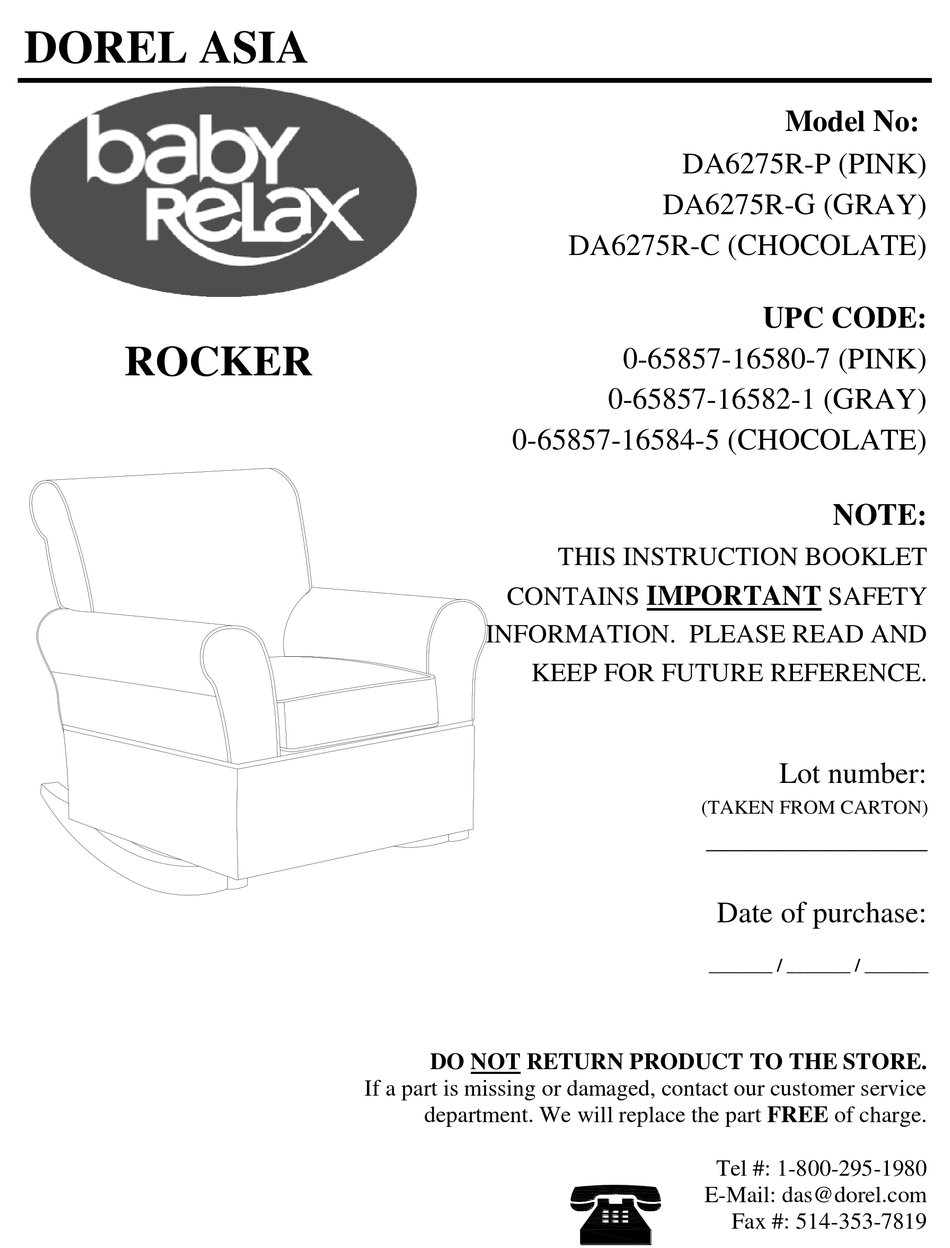

DOREL ASIA
Model No:
DA6275R-P (PINK)
DA6275R-G (GRAY)
DA6275R-C (CHOCOLATE)
UPC CODE:
ROCKER
0-65857-16580-7 (PINK)
0-65857-16582-1 (GRAY)
0-65857-16584-5 (CHOCOLATE)
NOTE:
THIS INSTRUCTION BOOKLET
IMPORTANT
CONTAINS
SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
___________________
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASSISTAN
Fax #: 514-353-7819
1-800-295-1980
DO NOT RETURN PROD
E-MAIL:DAS@DOREL.C
Advertisement
Table of Contents
Related Manuals for Dorel Asia DA6275R-P
Summary of Contents for Dorel Asia DA6275R-P
- Page 1 DOREL ASIA Model No: DA6275R-P (PINK) DA6275R-G (GRAY) DA6275R-C (CHOCOLATE) UPC CODE: ROCKER 0-65857-16580-7 (PINK) 0-65857-16582-1 (GRAY) 0-65857-16584-5 (CHOCOLATE) NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) ___________________...
-
Page 2: Care And Cleaning
Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. -
Page 3: Hardware List
ROCKER DA6275R-P / DA6275R-G / DA6275R-C HARDWARE LIST Ø5/16" X 2-1/2" Ø22 X 1.8mm Ø12.5 X 1.2mm HEX SOCKET HEAD BOLT FLAT WASHER SPRING WASHER 11 PCS 11 PCS 11 PCS M5 X 64mmL ALLEN KEY 1 PC PARTS LIST... - Page 4 ROCKER DA6275R-P / DA6275R-G / DA6275R-C STEP 1: Place the left arm (D) and right arm (E) onto the seat base (A). Lift the fabric flap underneath seat base (A). Secure the arms (D & E) to seat base (A) with flat washers (2), spring washers (3) and hex socket head bolts (1).
- Page 5 ROCKER DA6275R-P / DA6275R-G / DA6275R-C STEP 2: Attach the chair back (F) to the assembled unit by inserting the metal brackets on chair back (F) into the metal glides on left arm (D) and right arm (E). Push the chair back (F) with a downward force to secure it into place.
- Page 6 ROCKER DA6275R-P / DA6275R-G / DA6275R-C STEP 3: With the help of another person, gently place the unit on its back and lift the fabric flap. Secure chair back (F) to seat base (A) with flat washers (2), spring washers (3) and hex head bolts (1).
- Page 7 ROCKER DA6275R-P / DA6275R-G / DA6275R-C STEP 4: Attach feet (C) to seat base (A) with flat washers (2), spring washers (3) and hex socket head bolts (1). Use Allen Key (4) to tighten bolts. Turn the rocker upright.
- Page 8 ROCKER DA6275R-P / DA6275R-G / DA6275R-C STEP 5: Place seat cushion (B) onto the rocker.
- Page 9 ROCKER DA6275R-P / DA6275R-G / DA6275R-C CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
-
Page 10: Customer Service
MODEL #: DA6275R-P / DA6275R-G / DA6275R-C C B D Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
