DOREL ASIA

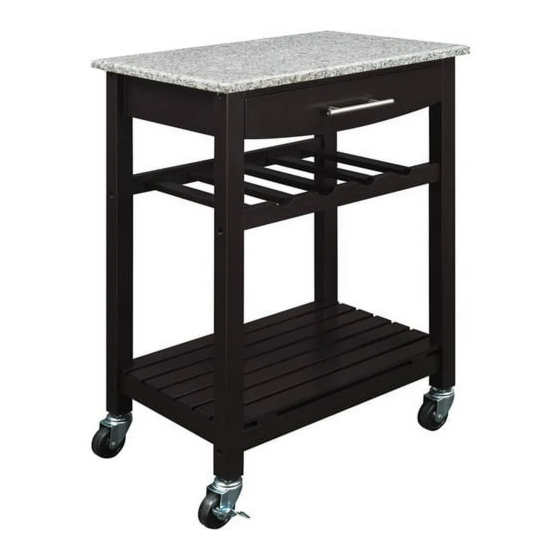

GRANITE TOP KITCHEN CART
CONTAINS
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
0-65857-16521-0
THIS INSTRUCTION BOOKLET
IMPORTANT
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
_______ / _______ / _______
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR ASSIST
E-Mail: das@dorel.com
1-800-295-1980
Fax #: 514-353-7819
DO NOT RETURN PRO
E-MAIL:DAS@DOREL
Model No:
DA6439-2G
UPC CODE:
NOTE:
SAFETY
Lot number:
Advertisement
Table of Contents
Related Manuals for Dorel Asia DA6439-2G
Summary of Contents for Dorel Asia DA6439-2G
- Page 1 DOREL ASIA GRANITE TOP KITCHEN CART Model No: DA6439-2G UPC CODE: 0-65857-16521-0 NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) _____________________________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
-
Page 2: Care And Cleaning
LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. -
Page 3: Hardware List
GRANITE TOP KITCHEN CART DA6439-2G HARDWARE LIST Ø6 x 50mm Ø10 x 13mm HEX SOCKET HEAD BOLT BARREL NUT 12 PCS 12 PCS Ø5.8 x 30mm Ø6 x 20mm WOOD DOWEL HEX SOCKET HEAD BOLT 8 PCS 3 PCS Ø4 x 25mm... -
Page 4: Parts List
GRANITE TOP KITCHEN CART DA6439-2G PARTS LIST GRANITE TOP PANEL LEFT FRAME RIGHT FRAME 1 PC 1 PC 1 PC WINE RACK BOTTOM PANEL TOP FRONT RAIL 1 PC 1 PC 1 PC TOP BACK RAIL BACK PANEL BOTTOM RAIL... - Page 5 GRANITE TOP KITCHEN CART DA6439-2G STEP 1 Attach plastic drawer stopper (6) to top front rail (F) with screw (7) using a Phillips screwdriver (not included). Attach top front rail (F) and top back rail (G) to the left frame (B) with hex socket head bolts ( 1) and barrel nuts (2).
- Page 6 GRANITE TOP KITCHEN CART DA6439-2G STEP 2 Repeat Step 1 to attach the top front rail (F), top back rail (G), wine rack (D), back panel (H) and bottom rails (I) to the right frame (C) with hex socket head bolts (1), barrel nuts (2) and wood dowels (3).
- Page 7 GRANITE TOP KITCHEN CART DA6439-2G STEP 3 Place the unit upside down on a clean, smooth surface. Attach casters (N) and lock casters (O) to the left frame (B) and the right frame (C) as shown. STEP 5 STEP 4...
- Page 8 GRANITE TOP KITCHEN CART DA6439-2G STEP 4 Place the granite top panel (A) on a clean, smooth surface. Attach the unit to the granite top panel (A) with hex socket head bolts (4). Use Allen Key (10) to tighten the bolts (4).
- Page 9 GRANITE TOP KITCHEN CART DA6439-2G STEP 5 Attach the drawer side panels (K) to drawer front panel (J) with screws (5). Attach the handle (8) to drawer front panel (J) with screws (9). Use a Phillips head screwdriver (not included) to tighten them.
- Page 10 GRANITE TOP KITCHEN CART DA6439-2G STEP 6 Slide the drawer bottom panel (M) into the groovesof the drawer frame. Attach drawer back panel (L) to the drawer side panels (K) with screws (5). Use a Phillips screwdriver (not included) to tighten them.
- Page 11 GRANITE TOP KITCHEN CART DA6439-2G STEP 7 Turn the kitchen cart upright. Insert the assembled drawer. Place the bottom panel (E) as shown. STEP 5 STEP 4 STEP 3 STEP 6 STEP 7 STEP 10 STEP 8 STEP 11 STEP 9...
- Page 12 GRANITE TOP KITCHEN CART DA6439-2G CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
- Page 13 MODEL #: DA6439-2G Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
