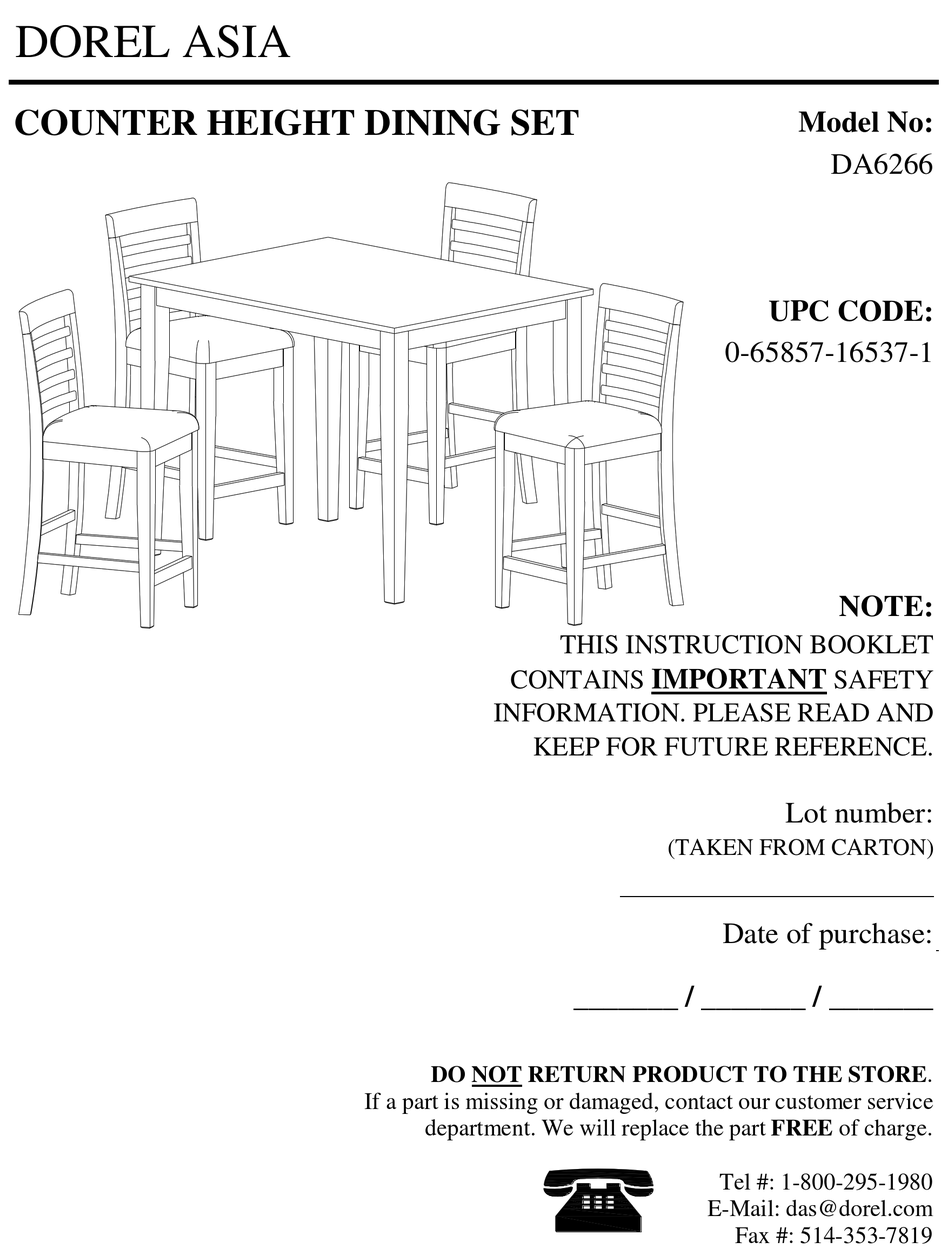

DOREL ASIA
COUNTER HEIGHT DINING SET
Model No:
DA6266
UPC CODE:
0-65857-16537-1
NOTE:
THIS INSTRUCTION BOOKLET
IMPORTANT
CONTAINS
SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR ASSIS
E-Mail: das@dorel.com
1-800-295-1980
Fax #: 514-353-7819
DO NOT RETURN PR
E-MAIL:DAS@DORE
Advertisement
Table of Contents
Related Manuals for Dorel Asia DA6266
Summary of Contents for Dorel Asia DA6266
- Page 1 DOREL ASIA COUNTER HEIGHT DINING SET Model No: DA6266 UPC CODE: 0-65857-16537-1 NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
-
Page 2: Care And Cleaning
Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. -
Page 3: Hardware List
COUNTER HEIGHT DINING SET DA6266 HARDWARE LIST Ø5/16" X 23MM FLAT WASHER 8 PCS 8 PCS Ø5/16" X 19MM Ø5/16" X 11MM FLAT WASHER SPRING WASHER 36 PCS 44 PCS Ø5/16" X 1-1/2" Ø5/16" X 3" BOLT BOLT 4 PCS 16 PCS Ø5/16"... -
Page 4: Parts List
COUNTER HEIGHT DINING SET DA6266 PARTS LIST TABLE TOP TABLE LEG 1 PC 4 PCS BACK FRAME SEAT FRAME 4 PCS 4 PCS LEFT CHAIR LEG RIGHT CHAIR LEG 4 PCS 4 PCS FRONT STRETCHER LEFT SIDE STRETCHER 4 PCS... - Page 5 COUNTER HEIGHT DINING SET DA6266 STEP 1 Place the table top (A) upside down on a clean, smooth surface to avoid scratches. Attach table legs (B) to table top (A) with nuts (1), flat washers (2) and spring washers (4). Use Allen wrench (9) to tighten nuts (1).
- Page 6 COUNTER HEIGHT DINING SET DA6266 STEP 2 Attach seat frame (D) to the back frame (C) with bolts (6), spring washers (4) and flat washers (3) through the corners of the seat frame (D). Use Allen key (10) to tighten the bolts (6).
- Page 7 COUNTER HEIGHT DINING SET DA6266 STEP 3 Connect the front stretcher (G) to the left chair leg (E) and right chair leg (F). Attach the legs (E & F) to the seat frame (D) with bolts (7), spring washers (4) and flat washers (3).
- Page 8 COUNTER HEIGHT DINING SET DA6266 STEP 4 Connect the side stretchers (H & I) to the back frame (C) and the legs (E & F) as shown below. Secure front stretcher (G) and side stretchers (H & I) to legs (E & F) and back frame (C) with wood screws (8) using a Phillips head screw driver (not included).
- Page 9 COUNTER HEIGHT DINING SET DA6266 STEP 5 Attach seat cushion (J) with wood screws (8) as shown below. Use a Phillips head screw driver (not included) to tighten all wood screws (8). Fully tighten all bolts previously installed. NOTE: Once all bolts have been installed, apply a downward force on the chair.
- Page 10 COUNTER HEIGHT DINING SET DA6266 CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
-
Page 11: Customer Service
MODEL #: DA6266 Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
