Dorel Asia DA6703Q Manual

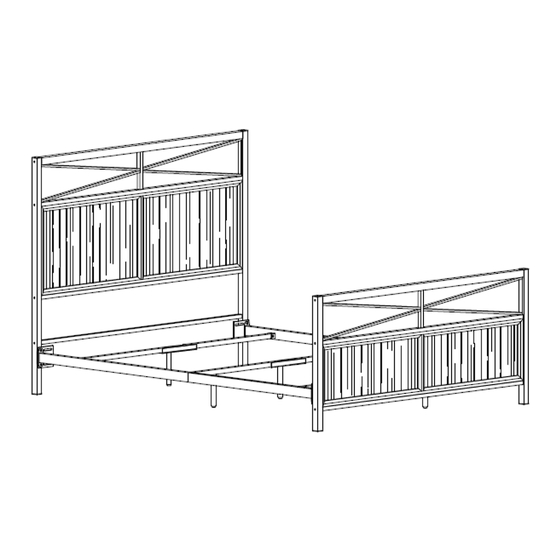

Full/queen wood & metal bed
Hide thumbs

Advertisement

Table of Contents

DOREL ASIA
Model No:
FULL/QUEEN
DA6703Q
WOOD & METAL BED
UPC CODE:
0-65857-16777-1
NOTE:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASSISTAN
Fax #: 514-353-7819
1-800-295-1980
DO NOT RETURN PRODU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA6703Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dorel Asia DA6703Q

Summary of Contents for Dorel Asia DA6703Q

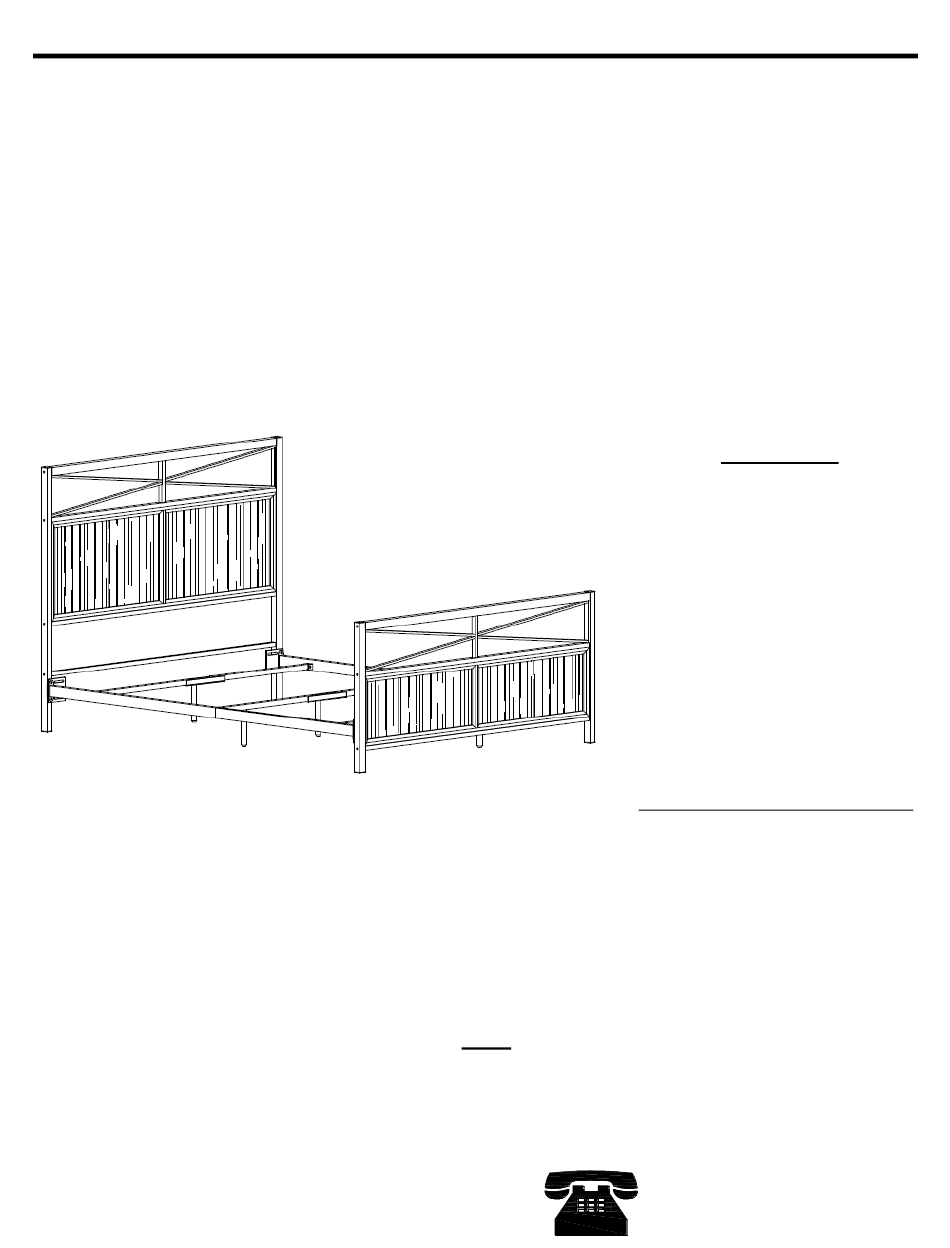

  • Page 1 DOREL ASIA Model No: FULL/QUEEN DA6703Q WOOD & METAL BED UPC CODE: 0-65857-16777-1 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.

  • Page 2: Care And Cleaning

    Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.

  • Page 3: Hardware List

    FULL/QUEEN WOOD & METAL BED DA6703Q HARDWARE LIST Ø1/4" X 2-1/4" Ø4" X 3/4" Ø1/4" X 1/2" BOLT PHILLIPS ROUND HEAD SCREW BOLT 14 PCS 20 PCS 6 PCS Ø1/4" X 1-1/2" Ø5/6" X 3/4" BOLT BOLT ALLEN KEY 11 PCS...

  • Page 4: Parts List

    FULL/QUEEN WOOD & METAL BED DA6703Q PARTS LIST RAIL HEADBOARD LEG METAL HEADBOARD / FOOTBOARD FOOTBOARD LEG 2 PCS 2 PCS 2 PCS 2 PCS LOWER RAIL WOODEN HEADBOARD WOODEN FOOTBOARD 1 PC 1 PC 1 PC SHORT SIDERAIL LONG SIDERAIL...
  • Page 5 FULL/QUEEN WOOD & METAL BED DA6703Q STEP 1 Attach metal headboard (C), rail (D) and lower rail (E ) to headboard legs (A) with bolts (1) and Allen key (6). Leave bolts (1) loose to facilitate assembly in the following steps.
  • Page 6 FULL/QUEEN WOOD & METAL BED DA6703Q STEP 2 Attach metal footboard (C) and rail (D) to footboard legs (B) with bolts (1) and Allen key (6). Leave bolts (1) loose to facilitate assembly in the following steps.
  • Page 7 FULL/QUEEN WOOD & METAL BED DA6703Q STEP 3 Attach wooden headboard (F) and wooden footboard (G) to the assembled metal headboard frames using round head screws (2) and a Phillips head screwdriver (not included). Tighten all bolts (1) previously installed using Allen key (6).
  • Page 8 FULL/QUEEN WOOD & METAL BED DA6703Q STEP 4 Attach long siderail (I) to short siderail (H) with bolts (3) and Allen key (6) as shown below. Repeat this step to assemble the other siderail.
  • Page 9 FULL/QUEEN WOOD & METAL BED DA6703Q STEP 5 Attach supporting legs (N) to slat (J) and slat (K) as shown below using bolt (4) and Allen key (6). Repeat this step using slats (L & M) NOTE- to connect slat (J &...
  • Page 10 FULL/QUEEN WOOD & METAL BED DA6703Q STEP 6a - Assembling a Queen Size Bed Attached the assembled side rails (H & I) and adaptor plates (O) to the assembled headboard and footboard as shown below using bolts (5) and Allen key (8).
  • Page 11 FULL/QUEEN WOOD & METAL BED DA6703Q STEP 6b Attach the assembled slats to the bed frame with bolts (4) and nuts (10) using Allen key (6) and open end wrench (9) as shown below. Note: the assembled slats must be extended to the longest position.
  • Page 12 FULL/QUEEN WOOD & METAL BED DA6703Q STEP 7a - Assembling a Full Size Bed Attach the assembled siderails to the adaptor plates (O) with bolts (5) and nuts (7) using Allen key (8) and open end wrench (11).
  • Page 13 FULL/QUEEN WOOD & METAL BED DA6703Q STEP 7b Attach the siderails to the assembled headboard and footboard with bolts (5) and Allen key (8). NOTE- the side rails are attached through the 2 slots on the adaptor plates (O)
  • Page 14 FULL/QUEEN WOOD & METAL BED DA6703Q STEP 7c Adjust the bed slats to the shortest position. Attach the assembled slats (M & L, K & J) to the bed frame with bolts (4) and nuts (10) using Allen key (6) and open end wrench (9).
  • Page 15 FULL/QUEEN WOOD & METAL BED DA6703Q CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
  • Page 16 MODEL #: DA6703Q Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
