Dorel Asia DA6504-1 Manual

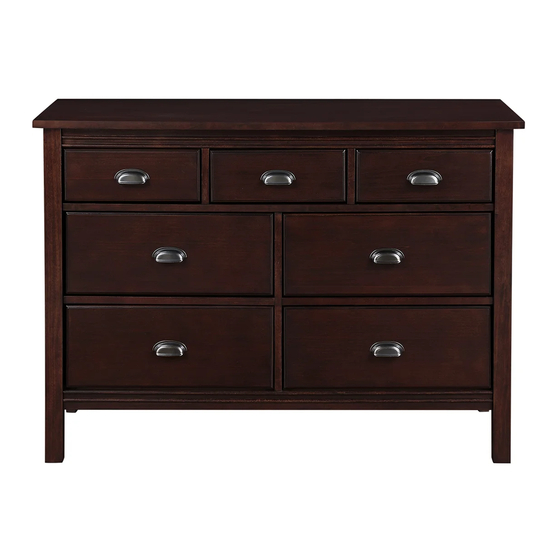

Dresser
Hide thumbs

Advertisement

Quick Links

Download this manual
DOREL ASIA
DRESSER
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
_______ / _______ / _______
E-Mail: das@dorel.com
Model No:
DA6504-1
UPC CODE:
0-65857-16509-8
Lot number:
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR AS
Fax #: 514-353-7819
1-800-295-1980
DO NOT RETURN
E-MAIL:DAS@DO

Advertisement

loading
Need help?

Need help?

Do you have a question about the DA6504-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Dorel Asia DA6504-1

Summary of Contents for Dorel Asia DA6504-1

  • Page 1 DOREL ASIA Model No: DA6504-1 DRESSER UPC CODE: 0-65857-16509-8 Lot number: (TAKEN FROM CARTON) _____________________________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact our customer service department.

  • Page 2: Care And Cleaning

    Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase.

  • Page 3: Hardware List

    DRESSER DA6504-1 HARDWARE LIST Ø8 X 30mm Ø6 X 20mm Ø7 X 35mm LARGE WOOD DOWEL SMALL WOOD DOWEL LARGE CAM LOCK LARGE CAM BOLT 42 PCS 22 PCS 37 PCS 37 PCS Ø5 X 28mm Ø5/32" x 1/2" SMALL CAM LOCK...

  • Page 4: Parts List

    DRESSER DA6504-1 PARTS LIST TOP PANEL LEFT SIDE PANEL RIGHT SIDE PANEL FIXED SHELF UPPER STAND PANEL 1 PC 1 PC 1 PC 1 PC 2 PCS FRONT TOP RAIL BACK TOP RAIL FRONT MIDDLE RAIL FRONT LOWER RAIL LOWER STAND PANEL...
  • Page 5 DRESSER DA6504-1 STEP 1: Insert large wood dowels (1) and large cam bolts (4) into fixed shelf (D). Attach upper stand panels (E) to fixed shelf (D) with bolts (11). Use Allen key (12) to tighten bolts (11). 4 PCS...
  • Page 6 DRESSER DA6504-1 STEP 2: Insert large cam bolts (4) into back lower rails (K) and front lower rail (J). Insert large cam locks (3) into lower stand panel (F). Attach the rails (K & L) to lower stand panel (F) as shown below and secure by rotating large cam locks (3) 1/2-turn clockwise using a Phillips head screwdriver (not included).
  • Page 7 DRESSER DA6504-1 STEP 3: Insert large wood dowels (1) and large cam locks (3) into front middle rails (I). Insert large cam bolts (4) into lower stand panel (F) as shown. Secure the front middle rails (I) to lower stand panel (F) by rotating large cam locks (3) 1/2-turn clockwise using a Phillips head screwdriver (not included).
  • Page 8 DRESSER DA6504-1 STEP 4: Insert large wood dowels (1) into fixed shelf (D). Insert large cam locks (3) into lower stand panel (F). Attach fixed shelf (D) to lower stand panel (F) and secure by rotating large cam locks (3) 1/2- turn clockwise using a Phillips head screwdriver (not included).
  • Page 9 DRESSER DA6504-1 STEP 5: Insert large cam bolts (4) into left side panel (B) and right side panel (C). 16 PCS...
  • Page 10 DRESSER DA6504-1 STEP 6: Insert large wood dowels (1) into left side panel (B). Insert large cam locks (3) into rails (I, J, K) and fixed shelf (D) as shown. Attach the assembled frame as shown to left side panel (B) by rotating large cam locks (3) 1/2- turn clockwise using a Phillips head screwdriver (not included).
  • Page 11 DRESSER DA6504-1 STEP 7: Insert large wood dowels (1) into left side panel (B). Insert large cam locks (3) into back top rail (H) and front top rail (G). Attach back top rail (H) and front top rail (G) to left side panel (B) by rotating large cam locks (3) 1/2-turn clockwise using a Phillips head screwdriver (not included).
  • Page 12 DRESSER DA6504-1 STEP 8: Insert large wood dowels (1) and large cam locks (3) into rails (G, H, I, J & K) and fixed shelf (D). Secure the right side panel (C) to the assembled unit by rotating large cam locks (3) 1/2-turn clockwise using a Phillips head screwdriver (not included).
  • Page 13 DRESSER DA6504-1 STEP 9: Insert large cam bolts (4) into top panel (A) as shown. Insert large wood dowels (1) into left side panel (B), upper stand panels (E) and right side panel (C). Insert large cam locks (3) into side panels (B & C), upper stand panels (E), back top rail (H) and front top rail (G).
  • Page 14 DRESSER DA6504-1 STEP 10: Attach back panels (M) to the assembled unit with round head screws (9). Use a Phillips head screwdriver (not included) to tighten the screws. 36 PCS...
  • Page 15 DRESSER DA6504-1 STEP 11: Insert small cam bolts (6) and small wood dowels (2) into large front drawer panel (N). Insert small cam locks (5) into large left drawer side (O) and large right drawer side (P). Attach large drawer sides (O & P) to large front drawer panel (N).
  • Page 16 DRESSER DA6504-1 STEP 12: Insert small cam bolts (6) and small wood dowels (2) into small front drawer panel (S). Insert small cam locks (5) into small left drawer side (T) and small right drawer side (U). Attach small drawer sides (T & U) to small front drawer panel (S) and secure by rotating small cam locks (5) 1/2-turn clockwise.
  • Page 17 DRESSER DA6504-1 STEP 13: Insert all drawers into the assembled unit.
  • Page 18 DRESSER DRESSER DA6504-1 CAUTION: "This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury." The maximum...
  • Page 19 Furniture Wall Safety Strap SAFETY WALL STRAP WALL ANCHOR MOUNTING BRACKET SHORT SCREW LONG SCREW 2 PCS 2 PCS 4 PCS 2 PCS 2 PCS TOOLS NECESSARY: RUBBER MALLET AND PHILLIPS SCREW DRIVER ARE NOT INCLUDED. NOTE: 3/8" DRILL BIT AND ELECTRIC DRILL ARE NOT PROVIDED. WARNING: WHEN UPRIGHT, IT IS POSSIBLE THAT THE FURNITURE MAY TIP OVER.
  • Page 20 MODEL #: DA6504-1 Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
