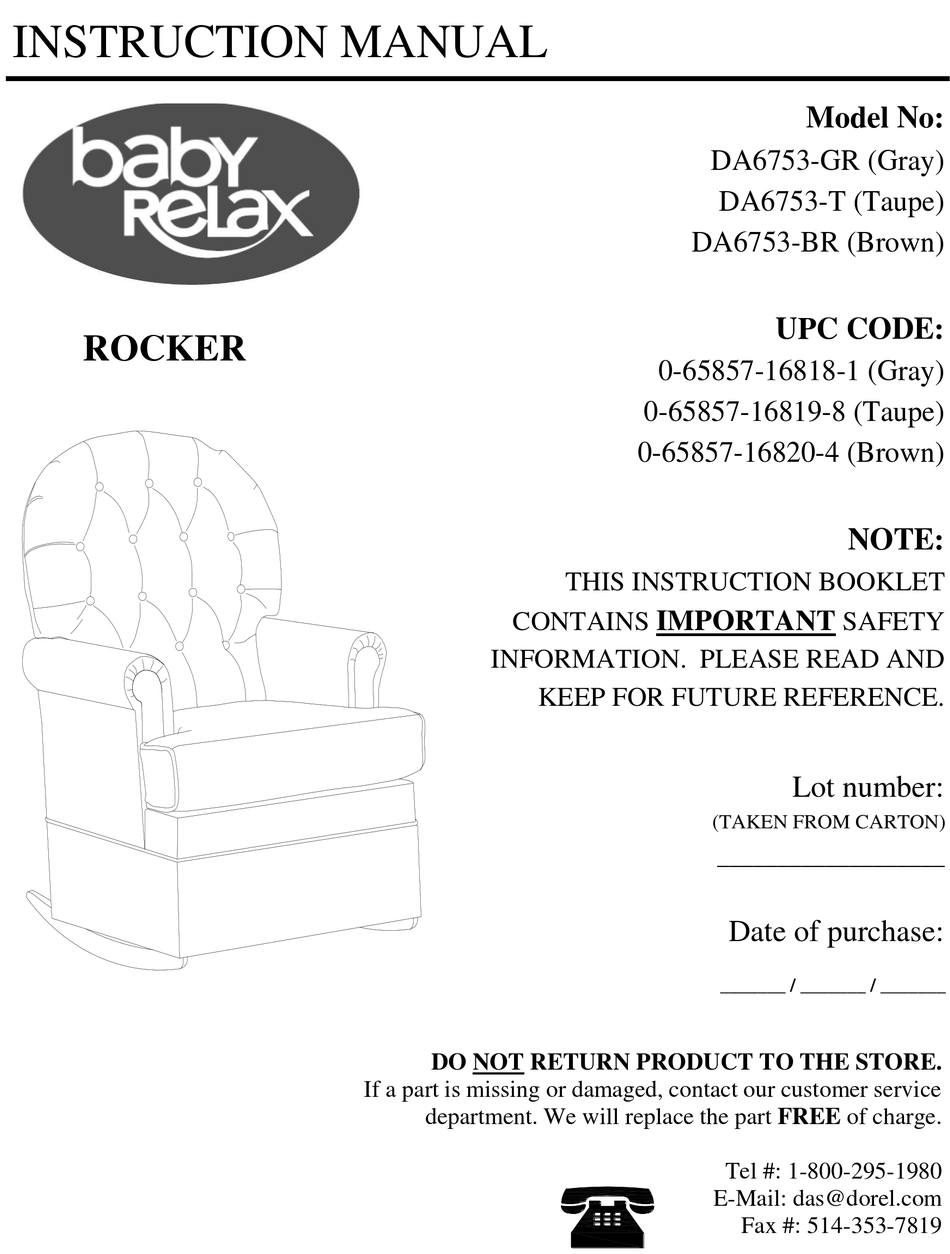

INSTRUCTION MANUAL
ROCKER
CONTAINS
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
DA6753-GR (Gray)
DA6753-T (Taupe)
DA6753-BR (Brown)
0-65857-16818-1 (Gray)
0-65857-16819-8 (Taupe)
0-65857-16820-4 (Brown)
THIS INSTRUCTION BOOKLET
IMPORTANT
(TAKEN FROM CARTON)
___________________
Date of purchase:
_______ / _______ / _______
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASSISTAN
Fax #: 514-353-7819
1-800-295-1980
DO NOT RETURN PRODU
E-MAIL:DAS@DOREL.CO
Model No:
UPC CODE:
NOTE:
SAFETY
Lot number:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dorel Asia DA6753-GR
Summary of Contents for Dorel Asia DA6753-GR
- Page 1 INSTRUCTION MANUAL Model No: DA6753-GR (Gray) DA6753-T (Taupe) DA6753-BR (Brown) UPC CODE: ROCKER 0-65857-16818-1 (Gray) 0-65857-16819-8 (Taupe) 0-65857-16820-4 (Brown) NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) ___________________...
-
Page 2: Care And Cleaning
Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. -
Page 3: Hardware List
ROCKER DA6753-GR / DA6753-T / DA6753-BR HARDWARE LIST Ø5/16" X 63mm Ø22 X 1.5mm BOLT FLAT WASHER 7 PCS 7 PCS Ø12.5 X 1.2mm SPRING WASHER ALLEN KEY 7 PCS 1 PC PARTS LIST SEAT FRAME CHAIR BACK SEAT CUSHION... - Page 4 ROCKER DA6753-GR / DA6753-T / DA6753-BR STEP 1: Place all parts on a clean and smooth surface. Attach chair back (B) to seat frame (A) by inserting the metal brackets on chair back (B) into the metal glides on left and right arms of seat frame (A).
- Page 5 ROCKER DA6753-GR / DA6753-T / DA6753-BR STEP 2: Secure chair back (B) to seat frame (A) with flat washers (2), spring washers (3) and bolts (1). Use Allen key (4) to tighten the bolts. Place the fabric lining back into place.
- Page 6 ROCKER DA6753-GR / DA6753-T / DA6753-BR STEP 3: Attach feet (D) to seat frame (A) with spring washers (3), flat washers (2) and bolts (1). Use Allen key (4) to tighten the bolts. Turn the rocker upright.
- Page 7 ROCKER DA6753-GR / DA6753-T / DA6753-BR STEP 4: Place seat cushion (C) on the rocker.
- Page 8 ROCKER DA6753-GR / DA6753-T / DA6753-BR CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
-
Page 9: Customer Service
MODEL #: DA6753-GR / DA6753-T / DA6753-BR Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
