DOREL ASIA

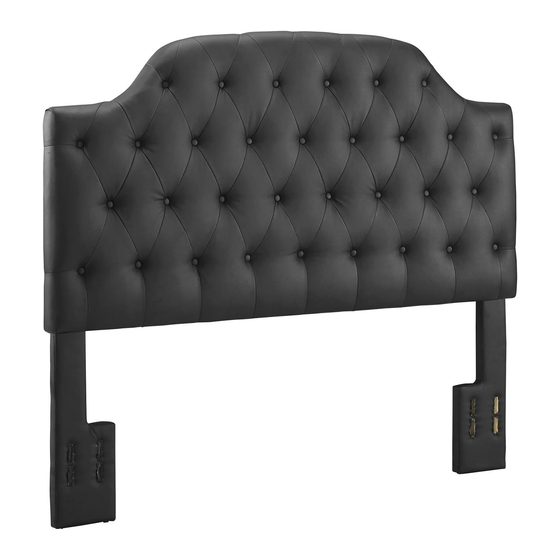

QUEEN HEADBOARD
Model No.:
DA6126FQ
UPC CODE:
0-65857-16294-3
NOTE:
THIS INSTRUCTION BOOKLET
IMPORTANT
CONTAINS
SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
___________________
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASSISTAN
Fax #: 514-353-7819
1-800-295-1980
DO NOT RETURN PRODU
E-MAIL:DAS@DOREL.CO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dorel Asia DA6126FQ
Summary of Contents for Dorel Asia DA6126FQ
- Page 1 DOREL ASIA QUEEN HEADBOARD Model No.: DA6126FQ UPC CODE: 0-65857-16294-3 NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) ___________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
- Page 2 Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.
- Page 3 QUEEN HEADBOARD DA6126FQ HARDWARE LIST Ø5/16" X 50mm Ø22 X 1.8mm Ø12.5 X 1.2mm HEX SOCKET HEAD BOLT FLAT WASHER SPRING WASHER 8 PCS 16 PCS 12 PCS Ø5/16" X 63mm Ø8mm HEX SOCKET HEAD BOLT ALLEN KEY 4 PCS...
- Page 4 QUEEN HEADBOARD DA6126FQ PARTS LIST HEADBOARD LEFT LEG 1 PC 1 PC RIGHT LEG 1 PC NOTE: LEGS (B & C) ARE PACKED INSIDE THE HEADBOARD (A). PULL BACK THE FABRIC LINING BEHIND THE HEADBOARD TO COLLECT ALL PARTS.
- Page 5 QUEEN HEADBOARD DA6126FQ STEP 1: Pull back the fabric lining on the back of the headboard (A). Attach the left leg (B) and right leg (C) to the headboard (A) using flat washers (2), spring washers (3) and hex socket head bolts (1). Use Allen Key (6) to tighten the bolts.
- Page 6 QUEEN HEADBOARD DA6126FQ NOTE: THE BED FRAME IS NOT INCLUDED AND MUST BE PURCHASED SEPARATELY. THE FOLLOWING ILLUSTRATIONS ARE FOR REFERENCE ONLY. Attach the bed frame (purchased separately) to bed posts by using hex socket head bolts (4), spring washers (3), flat washers (2) and nuts (5). Use Allen Key (6) to tighten bolts and use the open wrench (7) to tighten the nuts (5).
- Page 7 QUEEN HEADBOARD DA6126FQ CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. Dust regularly with a soft, dry cloth to prevent soil build-up.
- Page 8 MODEL #: DA6126FQ C B D Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
