Color Control GX manual [Victron Energy]
If both a microSD card and a USB flash drive are connected to the CCGX, then data is logged to the one that was inserted first. If one is removed, the CCGX will not try to write to the other, but will create an internal
backlog buffer until a new storage medium is inserted and then use that storage medium.
The microSD card or USB flash drive must be formatted as FAT12, FAT16 or FAT32 file system and not exFAT or NTFS. SD and SDHC type microSD cards which are less than or equal to 32 GB (Gigabyte) are sold
containing FAT12, FAT16 or FAT32. This means they can be used without a problem, unless they are subsequently formatted to a different and non acceptable file system. SDXC type microSD cards which are mostly greater
than 32 are sold with exFAT, and therefore cannot be used with the CCGX without reformatting and possibly repartitioning.

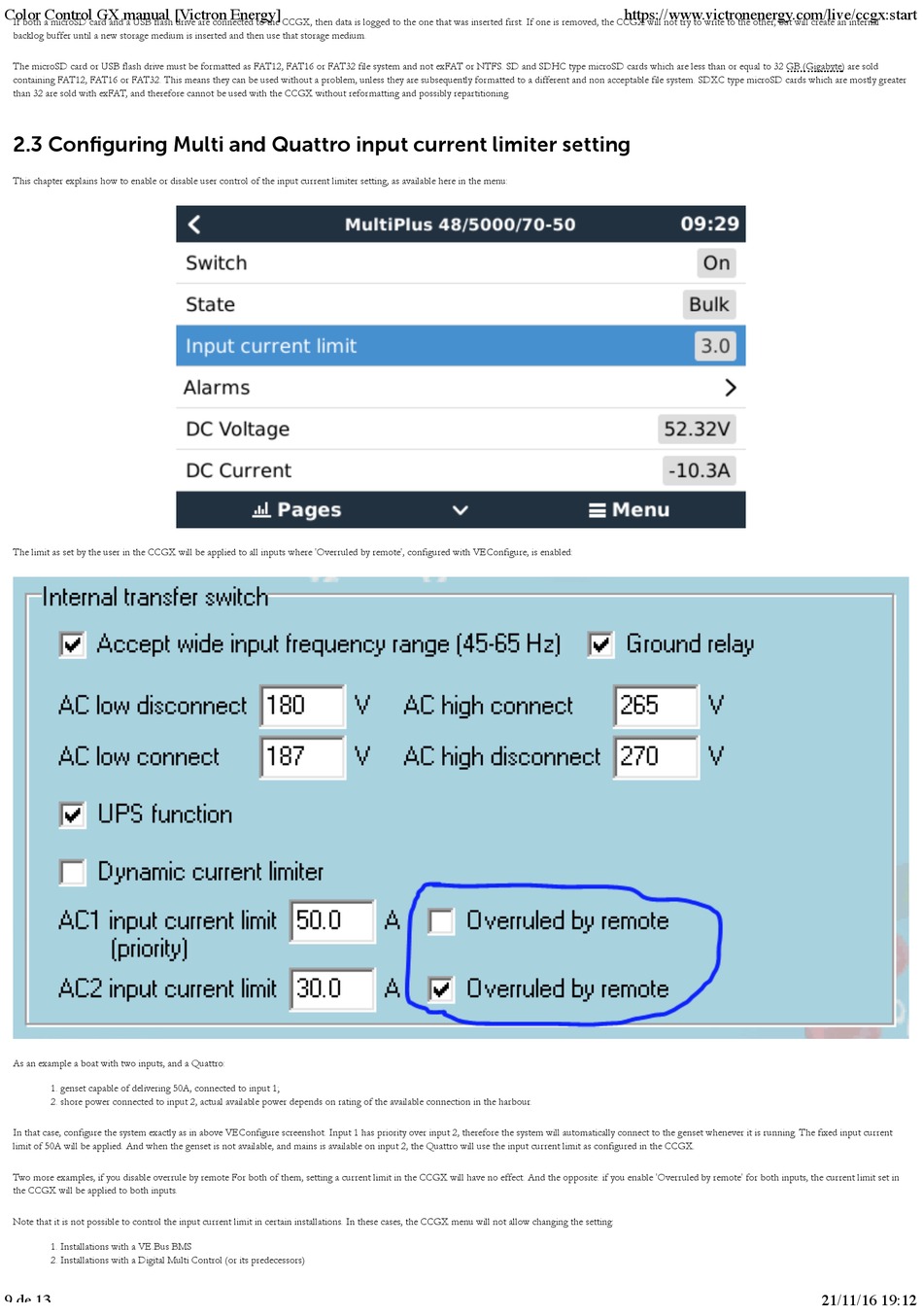

2.3 Configuring Multi and Quattro input current limiter setting
This chapter explains how to enable or disable user control of the input current limiter setting, as available here in the menu:
The limit as set by the user in the CCGX will be applied to all inputs where 'Overruled by remote', configured with VEConfigure, is enabled:
As an example a boat with two inputs, and a Quattro:
1.
genset capable of delivering 50A, connected to input 1;
2.
shore power connected to input 2, actual available power depends on rating of the available connection in the harbour.
In that case, configure the system exactly as in above VEConfigure screenshot. Input 1 has priority over input 2, therefore the system will automatically connect to the genset whenever it is running. The fixed input current
limit of 50A will be applied. And when the genset is not available, and mains is available on input 2, the Quattro will use the input current limit as configured in the CCGX.
Two more examples, if you disable overrule by remote For both of them, setting a current limit in the CCGX will have no effect. And the opposite: if you enable 'Overruled by remote' for both inputs, the current limit set in
the CCGX will be applied to both inputs.
Note that it is not possible to control the input current limit in certain installations. In these cases, the CCGX menu will not allow changing the setting:
1.
Installations with a VE.Bus BMS
2.
Installations with a Digital Multi Control (or its predecessors)
9 de 13
https://www.victronenergy.com/live/ccgx:start
21/11/16 19:12
