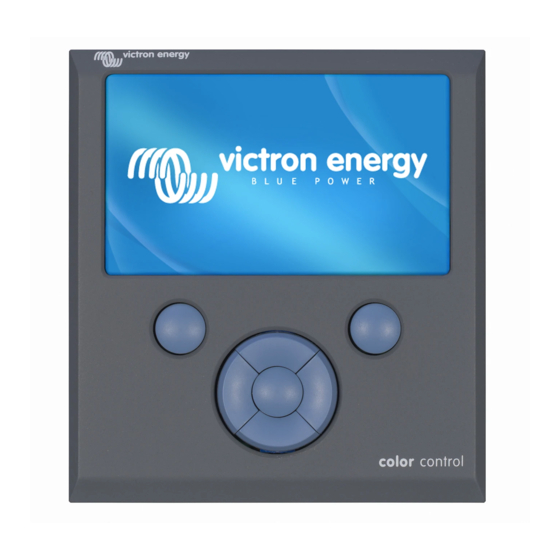

Victron energy Color Control GX Manual

Hide thumbs Also See for Color Control GX:

Advertisement

Quick Links

Download this manual
2022-06-09 18:57
Color Control GX manual
Note: this manual corresponds to the latest software. When internet connected, the device will update
to the latest version automatically. Check our blog posts for the latest
firmware:https://www.victronenergy.com/blog/category/firmware-software/
1. Installation
For class B EMI compliance, place the provided snap-on ferrite beads around every connection cable.
Place the beads as close as possible to the ColorControl.
Victron Energy - https://www.victronenergy.com/live/
1/21

Advertisement

loading
Need help?

Need help?

Do you have a question about the Color Control GX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Victron energy Color Control GX

Summary of Contents for Victron energy Color Control GX

  • Page 1 2022-06-09 18:57 1/21 Color Control GX manual Note: this manual corresponds to the latest software. When internet connected, the device will update to the latest version automatically. Check our blog posts for the latest firmware:https://www.victronenergy.com/blog/category/firmware-software/ 1. Installation For class B EMI compliance, place the provided snap-on ferrite beads around every connection cable.
  • Page 2 Last update: 2017-10-11 11:31 ccgx:start https://www.victronenergy.com/live/ccgx:start?rev=1507714272 1.1 Power Power the device on the Power IN V+ connector. It accepts 8 to 70 V DC. The device will not power itself from the network connections. Use a 1A slow blow fuse. Powering in systems with VE.Bus BMS VE.Bus BMS note: when the CCGX is used in an installation with a VE.Bus BMS, connect Power in V+ on the CCGX to the terminal called 'Load disconnect' on the VE.Bus BMS.
  • Page 3 1.2 Connecting Victron products 1.2.1 Multis/Quattros/Inverters (VE.Bus products) To keep this text short, Multis, Quattros and Inverters are referenced as VE.Bus products. The minimal version of the VE.Bus devices connected is 19xx111 or 20xx111, released in 2007. Victron Energy - https://www.victronenergy.com/live/...
  • Page 4 Last update: 2017-10-11 11:31 ccgx:start https://www.victronenergy.com/live/ccgx:start?rev=1507714272 VE.Bus firmware 26xxxxx and 27xxxxx is also supported. 18xxxxx is not. Note that it is not possible to use the Remote on/off (header on the VE.Bus control PCB) in combination with a CCGX. The jumper link needs to be in the header, as it is by default. Single VE.Bus products To connect a single VE.Bus product, connect it to one of the VE.Bus sockets on the back of the CCGX.
  • Page 5 It is possible to combine a Skylla-i control panel with a CCGX. It is possible to combine a Ion Control panel with a CCGX. The Skylla-i, Lynx Shunt VE.Can, Lynx Ion + Shunt and the MPPTs with a VE.Can port all power Victron Energy - https://www.victronenergy.com/live/...
  • Page 6 Last update: 2017-10-11 11:31 ccgx:start https://www.victronenergy.com/live/ccgx:start?rev=1507714272 the VE.Can network. It is therefore not necessary to separately power the VE.Can network. All the protocol converters, for example the VE.Bus to VE.Can interface, and the BMV to VE.Can interface, do not power the VE.Can network. 1.2.4 BMV-600 series Use the VE.Direct to BMV-60xS cables, ASS0305322xx 1.2.5 DC Link box...

  • Page 7: Internet Connectivity

    Connect to Wi-Fi, using a USB Wi-Fi dongle plugged into the CCGX To a mobile (cellular) network, using a 3G or 4G router USB Tethering on a mobile phone The four chapters below describe these options in detail. 1.4.1 Ethernet LAN port 1.4.2 Wi-Fi USB dongle Victron Energy - https://www.victronenergy.com/live/...
  • Page 8 Using a Wi-Fi dongle it is possible to connect to WEP, WPA and WPA2 secured networks. There are three supported USB Wi-Fi dongles. Two of them are also available from stock at Victron Energy: CCGX WiFi module simple (Nano USB), small, low cost. Victron part number BPP900100200 LevelOne WUA-1610, slightly higher cost and also better reception.
  • Page 9 A state change (from inverter to charger for example) will trigger a data transmission, so a system with very frequent state changes will also tend to generate more data. This is especially true in certain Hub-1 and Hub-2 systems. Victron Energy - https://www.victronenergy.com/live/...

  • Page 10: Configurable Parameters

    Last update: 2017-10-11 11:31 ccgx:start https://www.victronenergy.com/live/ccgx:start?rev=1507714272 Note that CCGX versions prior to v1.18 would still check for software updates daily, even when auto- update was be switched off. This has been changed in v1.18: disabling auto-update also disables the check, saving a lot of data. We recommend to set the mobile plan up in such a way that there are no surprises.
  • Page 11 Wireless AC Sensors Select the position for each AC sensor (PV Inverter on AC-input 1, 2 or on AC-output). More information about the Wireless AC sensors. Energy meters Victron Energy - https://www.victronenergy.com/live/...
  • Page 12 Configure generator autostart settings and conditions. generator_start_stop Tank pump Configure automatic starting and stopping of pump based on tank level. Pump auto start/stop with Color Control GX Relay Alarm Function Select the relay function. Possible functions are Alarm relay, Generator start/stop, Tank pump and None(disabled).
  • Page 13 2.2 Logging data for the VRM portal The CCGX can be used in combination with the Victron Remote Management (VRM) portal: The CCGX monitors all products connected to it and the VRM portal makes the statistics easily accessible. Victron Energy - https://www.victronenergy.com/live/...
  • Page 14 Last update: 2017-10-11 11:31 ccgx:start https://www.victronenergy.com/live/ccgx:start?rev=1507714272 Since version 1.40, dealing with an absent or intermittent internet connection has changed. Data is sent out via the Internet if it's available, and will fall back to non-volatile storage when there is a (temporary) Internet outage.
  • Page 15 This chapter explains how to enable or disable user control of the input current limiter setting, as available here in the menu: The limit as set by the user in the CCGX will be applied to all inputs where 'Overruled by remote', configured with VEConfigure, is enabled: Victron Energy - https://www.victronenergy.com/live/...
  • Page 16 Last update: 2017-10-11 11:31 ccgx:start https://www.victronenergy.com/live/ccgx:start?rev=1507714272 As an example a boat with two inputs, and a Quattro: genset capable of delivering 50A, connected to input 1; shore power connected to input 2, actual available power depends on rating of the available connection in the harbour.
  • Page 17 Note that is still possible to setting the input current limit to 0. When set to 0, the system will be in passthrough (charger disabled). Parallel and three phase systems The configured input limit is the total limit per phase. Victron Energy - https://www.victronenergy.com/live/...

  • Page 18: System Components

    Last update: 2017-10-11 11:31 ccgx:start https://www.victronenergy.com/live/ccgx:start?rev=1507714272 2.4 Battery State of Charge (SOC) 2.4.1 System Components There are three products types that calculate State Of Charge (SOC). The CCGX itself does not calculate SOC, it only retrieves it from the connected devices. The three products that calculate SOC are: dedicated Battery Monitors, such as the BMVs, the Lynx Shunt, or the Lynx Ion BMS Multi and Quattro inverter/chargers...
  • Page 19 SOCs being calculated and shown to the user. More information: VRM Portal FAQ - difference between BMV SOC and VE.Bus SOC CCGX Manual - configurable parameters. See Battery Monitor selection and Has DC System. 2.4.2 Selecting SOC source Victron Energy - https://www.victronenergy.com/live/...
  • Page 20 Last update: 2017-10-11 11:31 ccgx:start https://www.victronenergy.com/live/ccgx:start?rev=1507714272 (Settings → System Setup → Battery monitor) In the image below you can see a range of selectable choices for the SOC values that will be shown in the main Overview screen. Choose the source you want to see on the main Overview screen of your CCGX.
  • Page 21 ? best regards From: https://www.victronenergy.com/live/ - Victron Energy Permanent link: https://www.victronenergy.com/live/ccgx:start?rev=1507714272 Last update: 2017-10-11 11:31 Victron Energy - https://www.victronenergy.com/live/...
