Venus GX (VGX) manual
In many ways the Venus GX (VGX) and the Color Control GX (CCGX) are the same device. They
share a lot of hardware, and they run on identical software - our 'Venus OS' - therefore firmware
numbering is the same; and new version releases always apply to both devices at the same time.
As many of the functions of the two devices are identical, the
if something is not specifically covered in this VGX manual.
This manual refers to the latest firmware version. A device connected to the internet will perform
new-version updates automatically. Check the latest firmware version
Venus GX/CCGX comparison table
See
Victron GX product

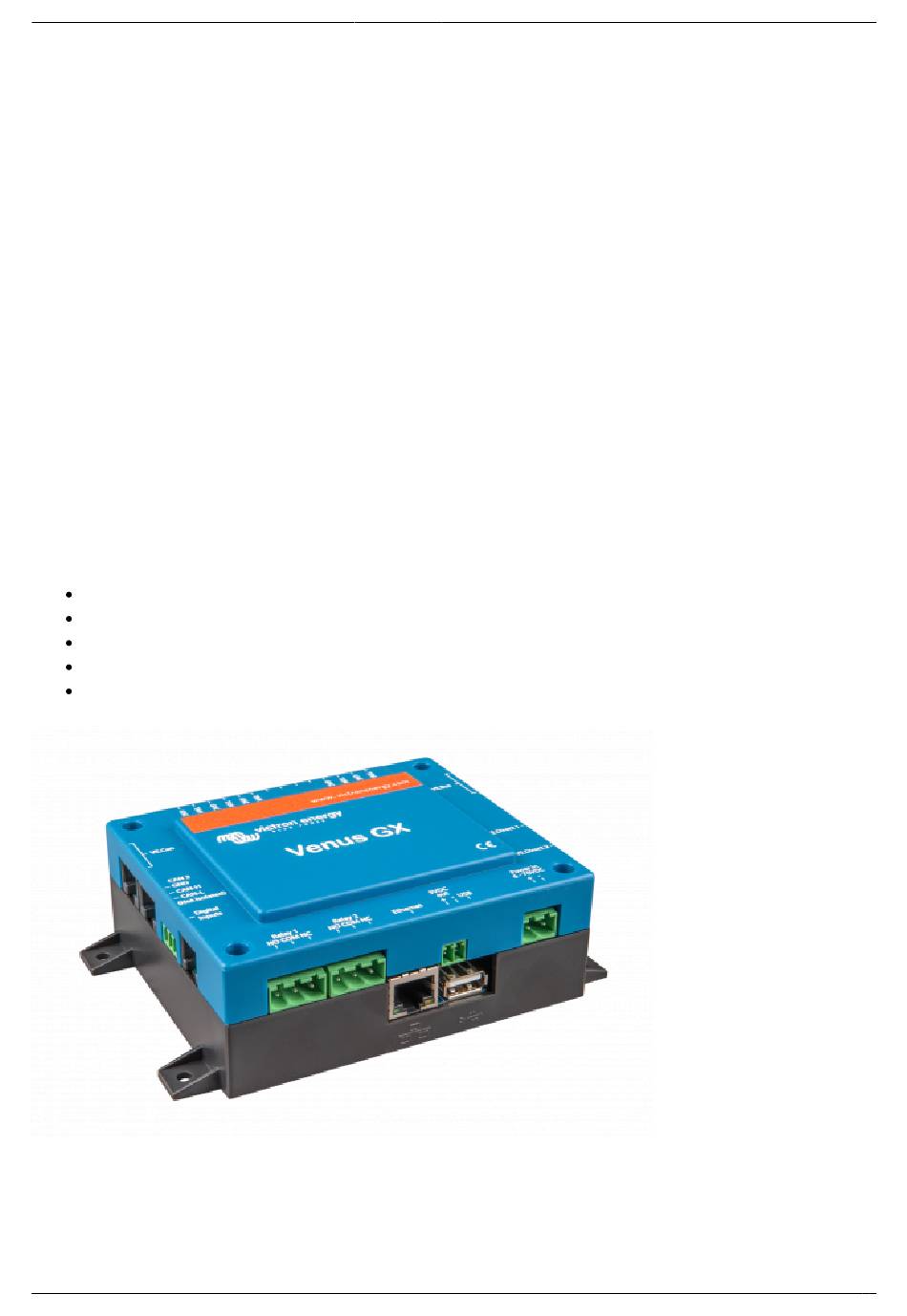

1. What's in the Box?

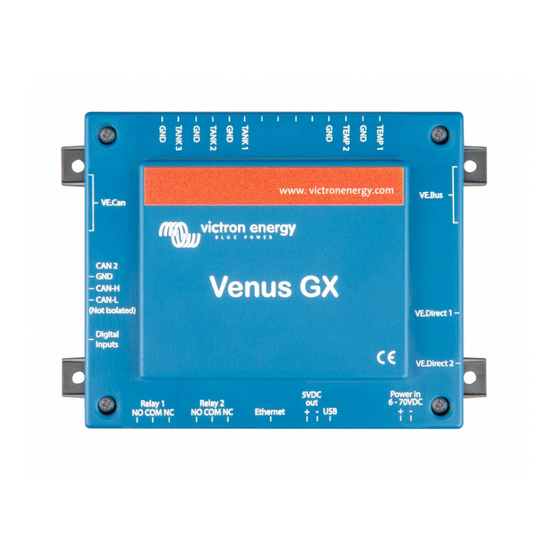

Venus GX (VGX)
VE.Can terminator (2 pcs).
Power cable with inline fuse and M8 terminal eyes for battery- or DC busbar-attachment.
Terminal Blocks for all the connectors on each side.
Label showing WiFi key and product details.
Victron Energy - https://www.victronenergy.com/live/
1/11
range.
CCGX Manual
should also be consulted
here.
Venus GX (VGX) manual
